6.4.2 Connecting the Battery BMS-AC terminal
Fig 6.15 Position of the battery terminals
1> Connect the ground cable before connecting the battery cable; the ground
point is shown in Fig 6.10.
NOTE:
2> The length of the battery cable is recommended to be no more than 10m.
NOTE: Perform operations according to on-site requirements.
Procedure for connecting the battery BMS-AC terminal:
2. Find the corresponding terminals from the accessory kit. Refer to Table 6.3 to
connect the terminals;
1. Open the right cover plate of the inverter, the position of which is shown in Fig
6.16;
Fig 6.16 BMS-AC terminal
Table 6.4 Definitions of BMS-AC terminal
BMS-AC terminal port definition
Number
Definition of signal
Note
CN4
LOAD R
Supply power to the BMS
CN5
LOAD S
NOTE:
1. Reinstall the battery protective plate and the right cover plate after the cable
connection is completed.
2. Between signal R and signal S is a line voltage.

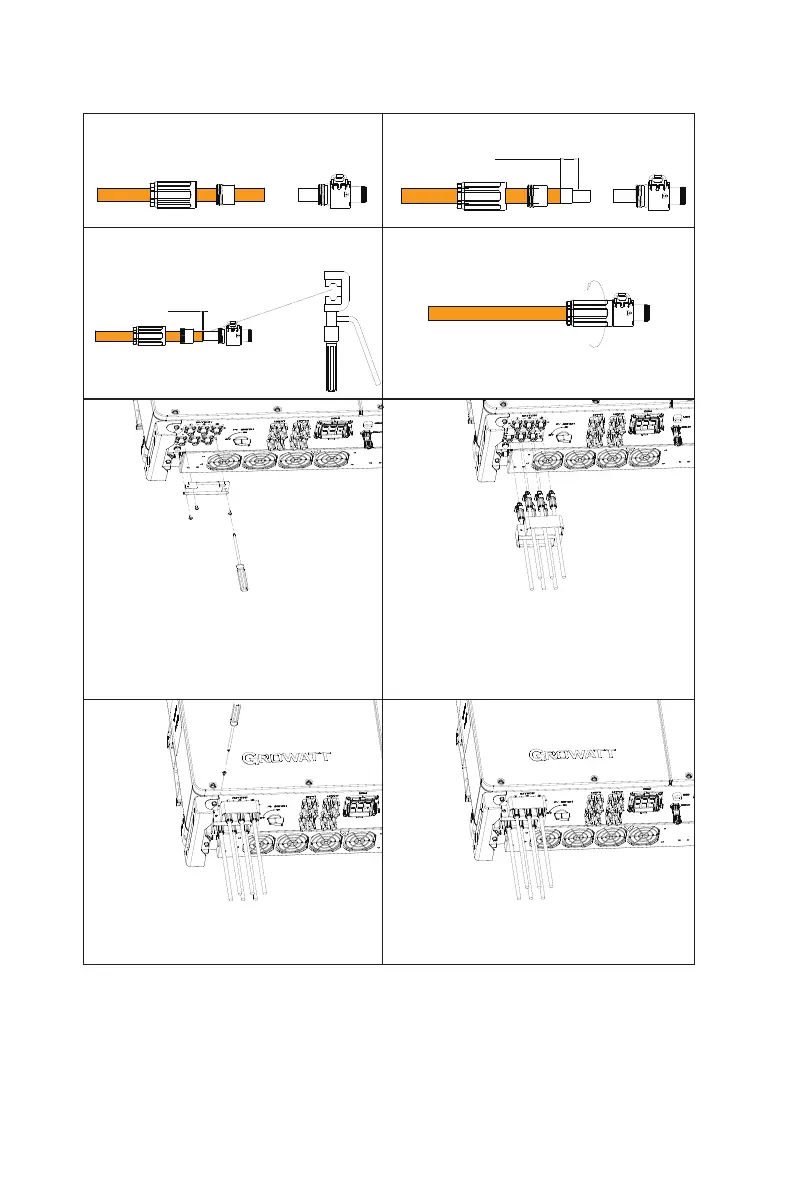

Step 5 Secure the battery terminal anti-
dismantle element, marked as F in the
packing list onto the inverter using the
screws.
Step 7 Secure the anti-dismantle ele-
ment (E) to the inverter.
Step 6 Route the battery cables through the
battery terminal anti-dismantle element,
marked as E in the packing list, and insert it
into the inverter.
Step8 Finish
12±0.5
Step2 Strip the cable
Step1 Route the cable
Step3 Crimp the cable
Step4 Tighten the terminal
≤1
40
39
