STEP 2: Tighten the bolts to attach the wall mount bracket onto the wall securely
as illustrated below.
STEP 1: Use the wall mount plate as a template, drill holes into the wall and insert
the expansion bolts as Fig 1-3 show.
1 2
3 4
Fig 5.9
2> Ensure that the bracket has been firmly installed before mounting the inverter
onto it.
Note:
1> The wall where the expansion bolts are installed should be a solid concrete or
brick wall with a thickness of at least 100 mm.
5.5 Installing the Inverter
3> Check if the inverter has been properly mounted and tighten all screws.
2> Hang the inverter onto the wall mount bracket and install the bolts. Please
keep balance when moving the inverter.

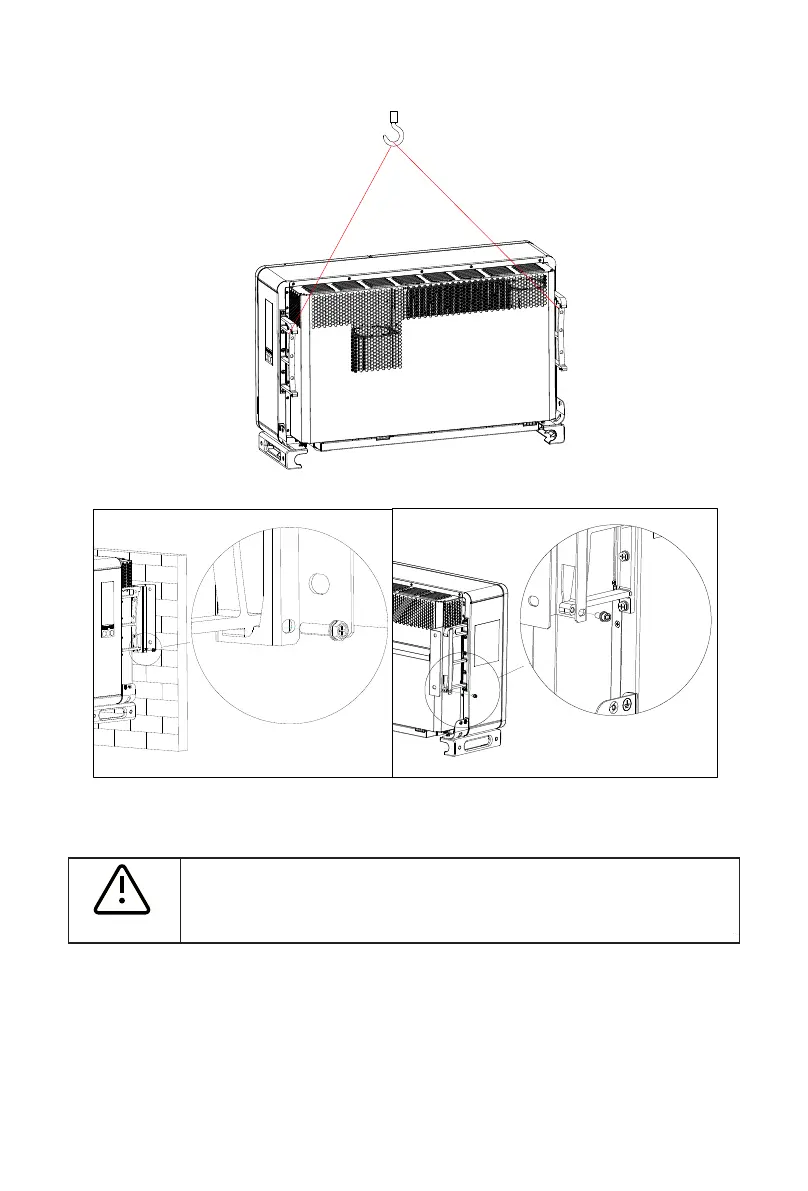

1> Run the rope, which is strong enough to bear the weight of the inverter,
through the two hoist rings, as shown below;
After verifying that the wall mount bracket has been firmly installed on the wall,
mount the inverter onto the bracket.
Fig 5.10 Wall-mounted installation
Ensure that the wall meets the load-bearing requirements of the
equipment. For details about the weight, see Table 3.2.
NOTICE
2221
