5.3 Moving the WIT Inverter
DoŸ not place the inverter with its wiring and signal terminals at
the bottom contacting with floor or any other object because
the terminals are not designed to support the weight of
inverter.
ThŸe inverter is heavy, please move it with care and keep balance
to avoid personnel injury.
2> When you are moving the inverter, please keep the balance.
1> As shown in Fig 5.6, two persons are required to lift the inverter out of the
package and transport it to the installation position.
CAUTION
Fig 5.5

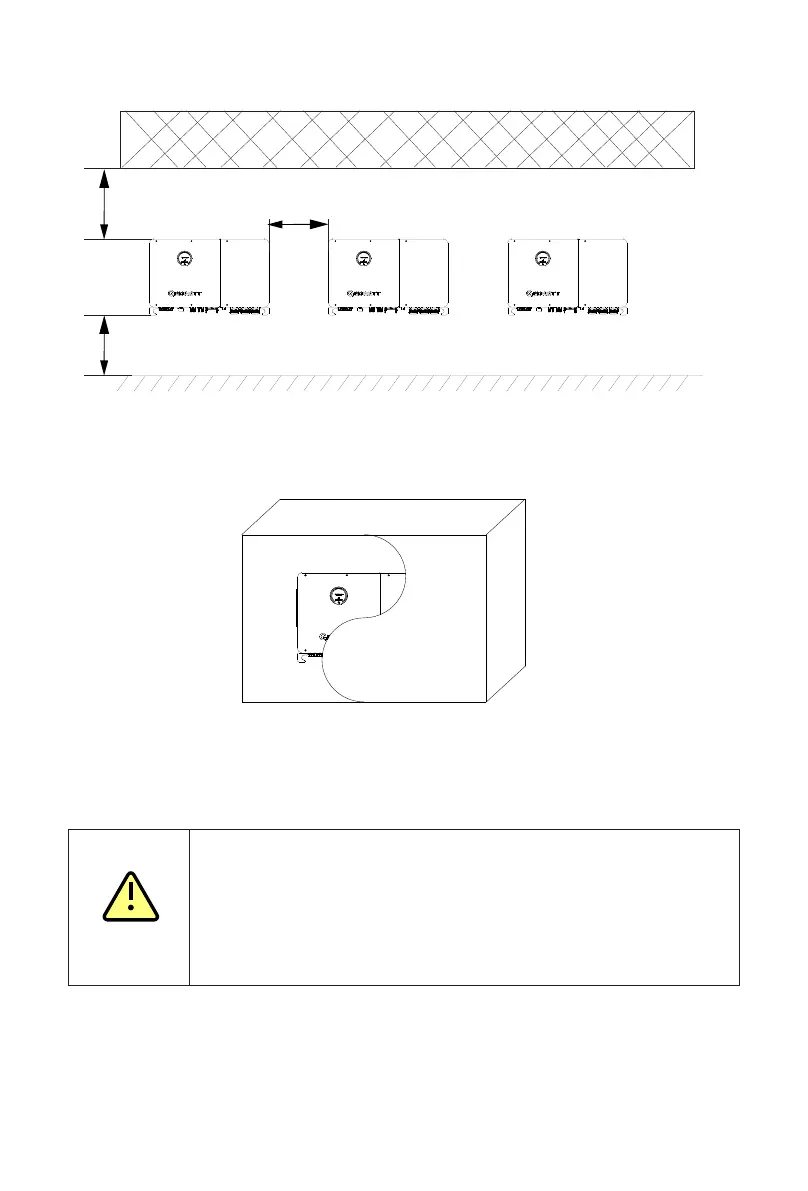

D. Do not place the WIT Inverter in an enclosed and narrow space for operation.
Fig 5.6
Notice: There will be front and bottom mark on the package.
Position of the lifting handle
One handle on each side
Fig 5.7
5.4 Wall Mount Bracket Installation
Before installing the inverter, you need install the wall mount bracket so that the
inverter can be securely mounted on the wall.
Wall mount bracket (unit: mm):
25
190
126.5
190
25
890
Fig 5.8
20
19
≥600
≥600
≥800
