4 Inspection upon delivery
Unpacking and inspection
1> Before unpacking the WIT Inverter, check the shipping box for any externally
visible damage. If any damage is found, contact the shipping company as soon
as possible.
2> After unpacking the WIT Inverter, check if the scope of delivery is intact and
complete. If any damage is found or any component is missing, contact your
distributor.
Check the following items:

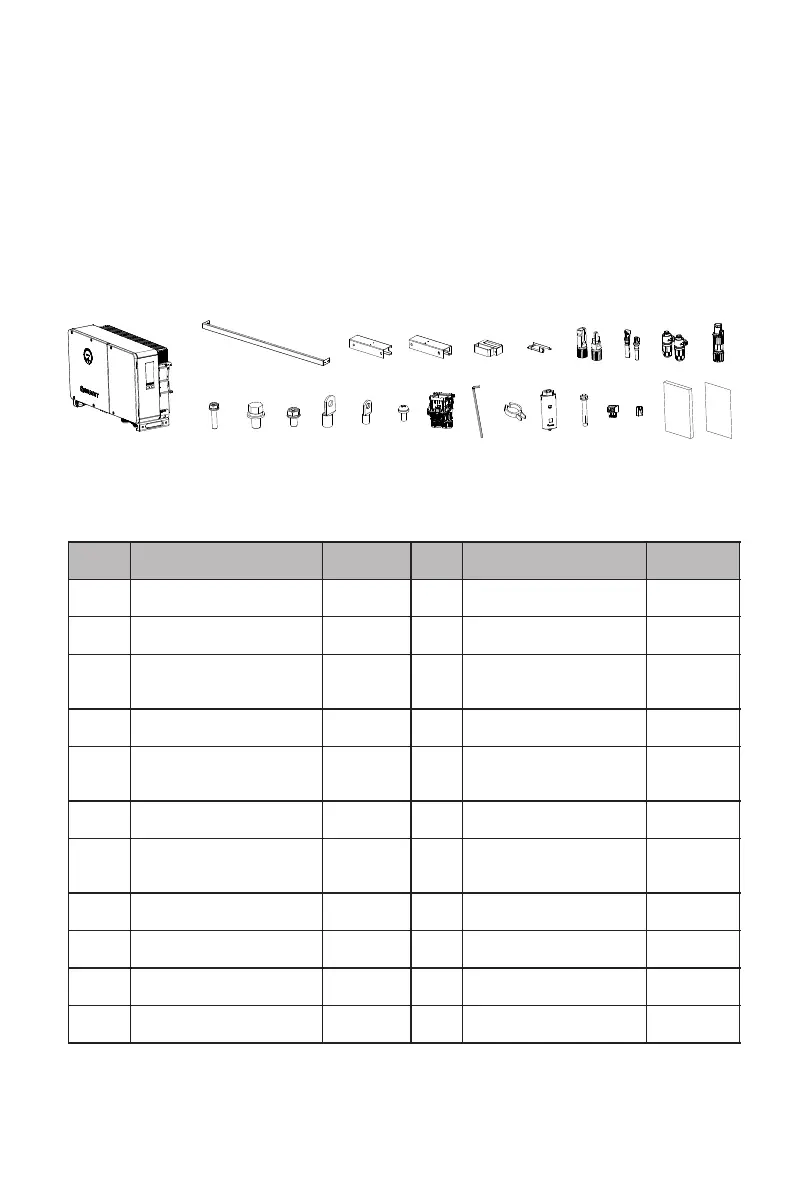

Fig 4.1 Packing list of WIT 50K-XHU
Table 4.1 Packing list
NOTE: Sturdy and durable though the packing carton is, please carry and handle it
with caution.
Installation 5
5.1 Basic Installation Requirements
C. Do not install the WIT Inverter in areas with flammable or non heat-resistant
materials.
A. The installation location must be suitable for WIT's weight for a long period
time. (Refer to Table 3.2 for the weight of the WIT Inverter).
H. The WIT inverter can be installed vertically or backward tilted. Please refer to
the figures below:
B. Ensure that the installation position is suitable for the dimensions of the WIT
Inverter.
E. Do not expose the WIT Inverter to direct sunlight. Otherwise, excessive
temperature may lead to power reduction.
G. Keep the ambient temperature at -30℃ to 60℃.
F. Keep the humidity at 0% to 95% RH.
D. The WIT Inverter is protected to IP66 and can be installed indoors or outdoors.
Fig 5.1
≤5
°
1615
No.
Description
Quantity
No.
Description
Quantity
A
The WIT Inverter
1
O
T35-6 PE terminal
4
B/C/D
Wall mount kit
1/1/1
P
M4*12 screw
4
E/F
Battery terminal anti-
dismantle element
1/1
Q
COM1 waterproof
cover
1
G
PV+(-) connector
8(8)
R
Allen wrench
1
H
PV+(-) metal contact
8(8)
S
PV connector
disconnect tool
1
I
Battery +(-) terminal
3(3)
T
ShineWiLan-X2
1
J
COM2 terminal
1
U
M10*90 expansion
bolt
4
K
M6*28 screw
2
V
BMS-AC terminal
2
L
M8*20 screw
12
W
RJ45
6
M
M6*12 screw
5
X
User Manual
1
N
SC70-8 AC terminal
12
Y
Quick Guide
1
User
Manual
Quick
Guide
A
B G H I
N
OK L M P Q T U
C FED
R S
J
V W X Y
