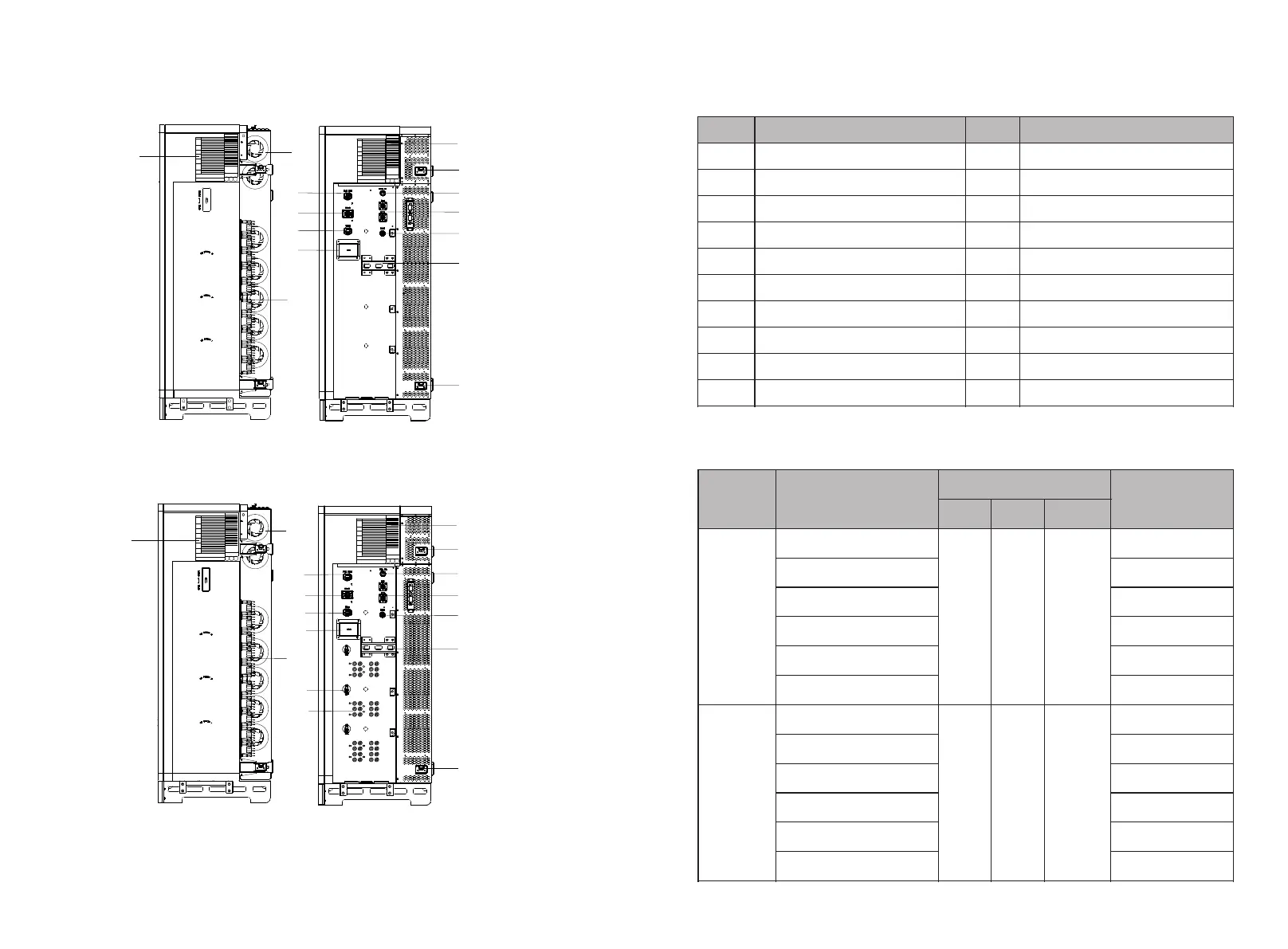

Right view:
8
7
Fig 3.5 Right view of WIT 50-100K-A, WIT 50-100K-AE and WIT 50-100K-AU
G
R
O
P
Q
S
R
T
H
I
J
K
L
H
G
R
O
P
Q
S
R
H
I
J
K
L
H
M
N
T
Fig 3.6 Right view of WIT 50-100K-H, WIT 50-100K-HE, WIT 50-100K-HU
No.
Description
No.
Description
A
Display
B
AC junction box
C
Base
D
Power grid connection terminal
E
Load wiring terminal
F
Heat sink
G
Nameplate
H
Fan
I
16-pin terminal (BMS COM)
J
30 pin terminal (COM2)
K
16-pin terminal (COM1)
L
USB interface box
M
DC Switch
N
PV terminal
O
Battery supply terminal (BMS AC)
P
Battery terminal
Q
DRMS port
R
Flexible handle (4 groups)
S
Fixed handle
T
Indicator description label
Table 3.1 Component description
3.2 Basic Data
Model
Size（mm)
(kg)
Weight
Height
Width
Depth
The WIT
Inverter
without
package
WIT 50/63/75/100K-A
1350
820
510
120/120/120/120
WIT 50/63/75/100K-H
133/133/140/140
WIT 50/63/75/100K-AE
130/130/130/130
WIT 50/63/75/100K-HE
143/143/150/150
WIT 50/63/75/100K-AU
140/140/140/140
WIT 50/63/75/100K-HU
153/153/160/160
The WIT
Inverter
with
package
WIT 50/63/75/100K-A
1524
988
733
160/160/160/160
WIT 50/63/75/100K-H
173/173/180/180
WIT 50/63/75/100K-AE
170/170/170/170
WIT 50/63/75/100K-HE
183/183/190/190
WIT 50/63/75/100K-AU
180/180/180/180
WIT 50/63/75/100K-HU
193/193/200/200
Table 3.2 Dimensions and weight
