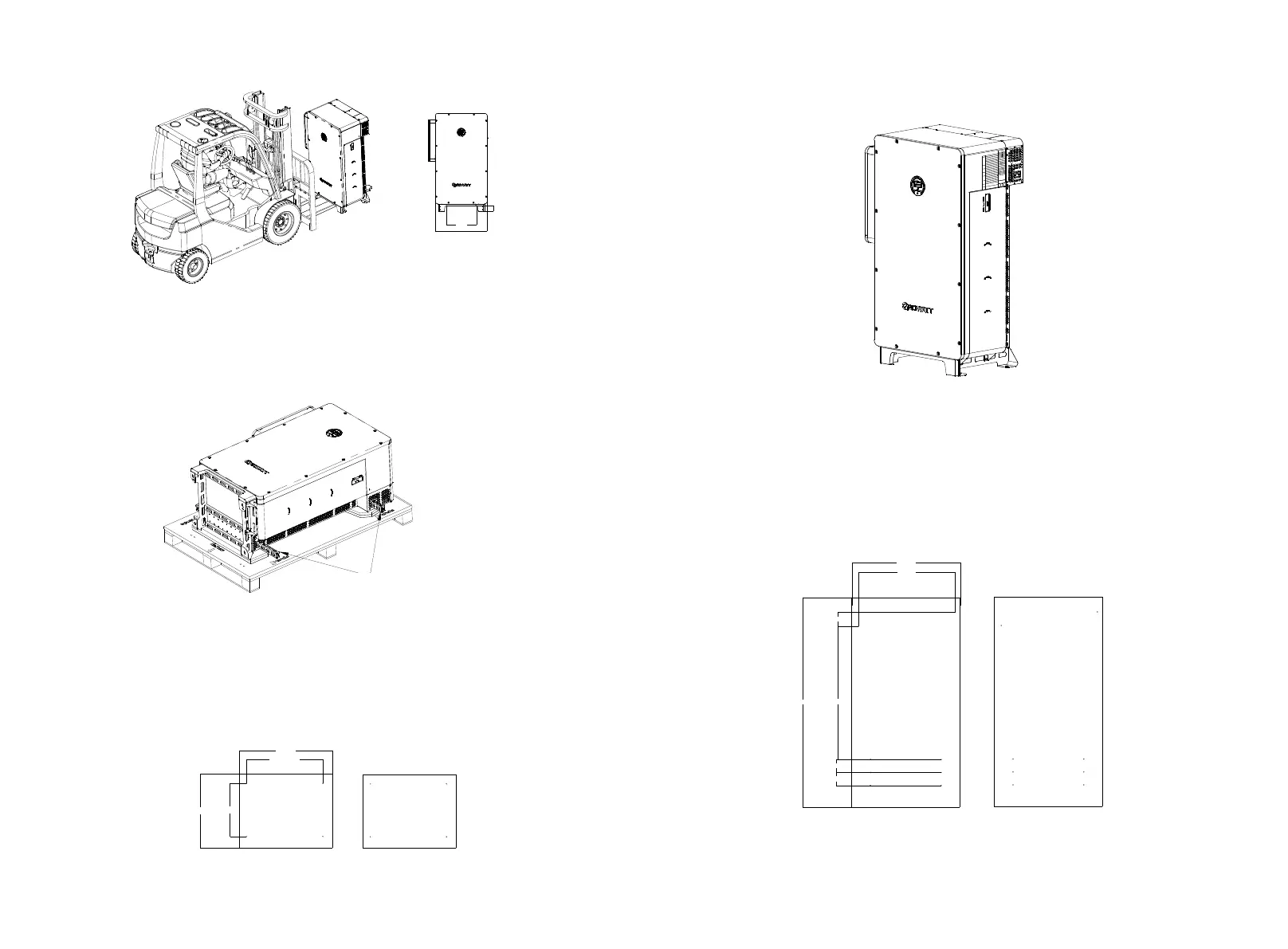

Fig 5.7 Moving the WIT Inverter with a forklift
Plan 3 Lifting:
1> Unpack the WIT Inverter (remove the top panel and the support plates) and pull out the
handles, as shown in Fig 5.8 below. It requires four people to lift the WIT Inverter and move
it to the installation position;
2> Keep balance when lifting and moving the WIT Inverter.
Fig 5.8 Lifting the WIT inverter
5.4 Mounting the WIT Inverter
5.4.1 Ground-mounting Installation
The WIT 50-100K Storage/Hybrid Inverters can be installed on the ground. Determine the
hole positions using the marking-off template and drill holes into the ground. Insert nuts
(φ12) into the ground, and then place the inverter in the correct position and tighten the
screws. The dimensions of the marking-off template are shown in Fig 5.9.
Fig 5.9 Floor-mounting installation hole positions
2019
0.42m
0.72m
0.08m
Flexible handle
0.7m
0.575m
Marking-off template
Dimensions of the marking-off template
0.4m
0.556m
BACK
FRONT
Refer to figure 5.10 for floor-mounting installation.
5.4.2 Wall-mounting Installation
The WIT 50-100K Storage/Hybrid Inverters can be mounted on the wall. For wall-
mounted installation, you need to purchase the mounting bracket from Growatt.
Determine the hole positions for installing the mounting bracket using the marking-off
template and drill holes. Align the mounting bracket with the hole positions and insert
nuts (φ12) into the holes. Secure the mounting bracket by tightening the screws. Then
install the WIT Inverter on the bracket and secure it to the wall. Please refer to Fig 5.11
for the dimensions of the marking-off template and Fig 5.12 for the wall-mounted
installation diagram.
Fig 5.11 Marking-off template for wall-mounting installation
NOTE: The marking-off template and mounting bracket are optional accessories.
Customers who purchase the mounting bracket will have a marking-off template
delivered with the bracket.
Fig 5.10 Floor-mounting installation
0.88m
0.78m
1.7m
0.105m
1.083m
0.111m
0.105m
Marking-off template
Dimensions of the marking-off template
UP
BOTTOM
