1.3 Description of SPH 3000-6000TL-HU
The SPH 3000-6000TL-HU inverter is mainly composed of inverter circuit, buck-
boost converter circuit, control circuit and communication circuit. The product
appearance is shown below:

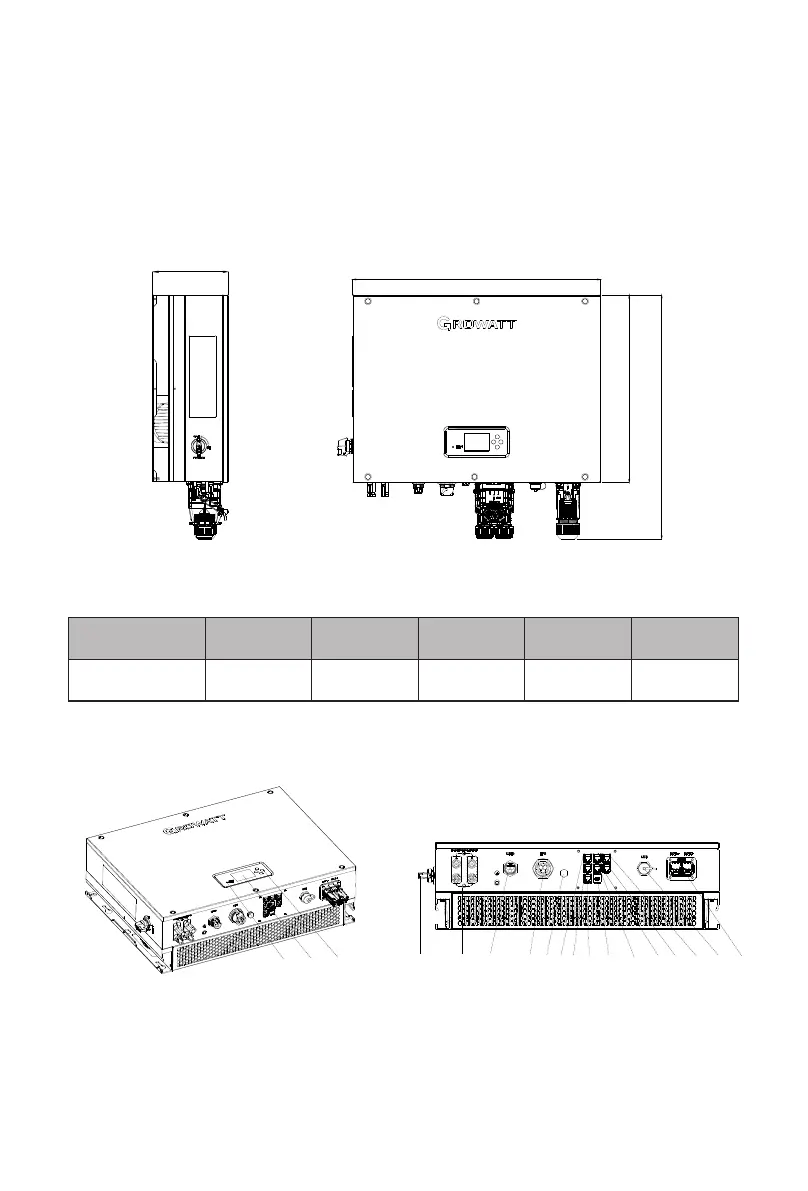

A: Dimensions of SPH 3000-6000TL-HU
Figure 1.2 Appearance of the SPH
A (mm)
B (mm)
C (mm)
D(mm)
Weight(kg)
SPH 3-6KTL-HU
458
605
186
595
32
c
B
A
D
B: External terminals of SPH
Figure 1.3 Wiring terminals of SPH
A B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
NO.
Description
A
LED status indicator
B
LCD screen
C
Buttons
D
PV switch
E
PV input terminal
F
AC grid port (for grid connection)
G
EPS port (for off-grid connection)
H
Vent valve (balancing pressure while ensuring waterproofing)
I
CAN communication port connected to the lithium battery
J
NTC: lead-acid battery sensor terminal
K
RS485 communication port for Meter1/CT1
L
Dry contact
M
RS485-1/485-3 communication
N
RJ45 port for DRMs (Demand response Modes), for Australia only
O
RS485-2 communication
P
Built-in Meter 1 communication
Q
USB port
R
Battery power terminal
Symbol
Designation
Description
Push buttons
Operate the display screen and set
system parameters
SPH status
indicator
Steady green
SPH runs normally
Steady red
Fault state
Blinking green
Alarm state
Blinking red
Software update
C: Button description
4
