6.6.3 The 485-3 port
To download ShineBus, please visit Growatt official website.
The USB-3 port is mainly used for monitoring connection with the computer. Once the
communication between the SPH and the computer is successfully established, you are
allowed to monitor the system, set parameters and update the software by running the
ShineBus software developed by Growatt.
Figure 6.39
The wiring diagram is as follows:
Figure 6.40
RS485 cable
USB-RS485 cable
Computer
6.6.4 Monitoring
You can monitor the SPH operating status via connecting to the RS485 communication
port on the SPH.
Note:

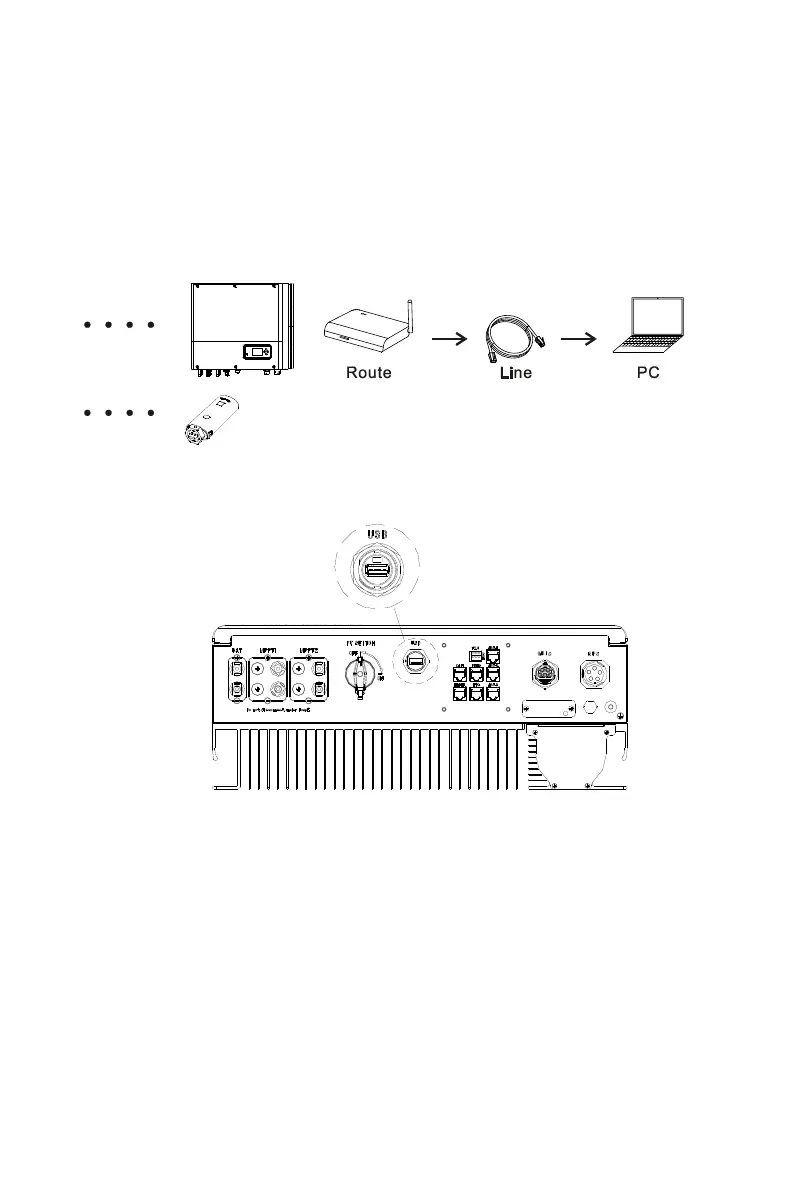

To view detailed monitoring information, you can log into the ShineServer webpage or the
ShinePhone APP. TheShineWiFi-X or ShineLink-X can be connected to the inverter via the
USB port.
Figure 6.41
Figure 6.42
ShineWiFi-X
6867
