Ø Turn off the battery switch.

After powering off the equipment, the residual voltage and heat still exist. Therefore, wait

for over 5 minutes before performing any operation.

Note:

To shut down the SPH, you need to disconnect all energy sources and the SPH will enter

the shutdown mode automatically.

Steps to shut down the SPH:

Ø Disconnect the AC power source. Wait until the LED indicator and the LCD screen of the

SPH turn off.

6.2.6 Shutdown mode

6.3 Country setting

After powering on the inverter, you can select the grid code of your country/region on

the LCD screen. Please refer to the following table:

Country/ region

Grid code

Model number

EU model

VDE0126

GT0XXXXXX1

Germany

GT0XXXXXX1

VDE-AR-N4110

(NULL)

Belgium

GT0XXXXXXD

Poland

GT0XXXXXXB

France

GT1XXXXXX9

Spain

GT0XXXXXX0

Austria

GT1XXXXXXE

Denmark_DK1

GT1XXXXXX7

Denmark_DK2

GT1XXXXXXB

Sweden

GT1XXXXXX6

Norway

(NULL)

Switzerland

(NULL)

Bulgaria

(NULL)

Greece

GT0XXXXXX2

Estonia

(NULL)

EN50549

GT1XXXXXXD

CzechRepublic

GT2XXXXXX3

6.4 Three export limitation modes

6.4.1 Three-phase total export limitation mode

The limited feed-in power configured in this mode in percentage limits the algebraic sum

of the total three-phase power drawn from and fed to the grid. On the grid side, the

power drawn from the grid is counted as positive value, while the power fed to the grid is

negative.

For an inverter with a maximum output power of 10 kW, if the percentage of feed-in

power is set to 10%, the exported power is limited to 1 kW, i.e., the algebraic sum (in

blue) of the power drawn from the grid and the power fed to the grid should be not less

than -1 kW.

If the energy flow is about to go over the limit (-1kW), the inverter will reduce the three-

phase output power to stop this tendency. (The rated power of the inverter in following

examples is 10 kW and the percentage of exported power is preconfigured to 10%.)

6.4.1.1 Three-phase system with balanced loads

Figure 6.1 shows the three-phase system with balanced loads, and the inverter side can

provide sufficient power to the load (power provided by the inverter side is not less than

2+2+2=6 kW). The inverter output power is not greater than the sum of the total load

power and the preconfigured exported power (2+2+2+1=7 kW). At this time, the three-

phase output of the inverter side is balanced; the three-phase power of the grid side is

balanced and it is only allowed to feed power to the grid.

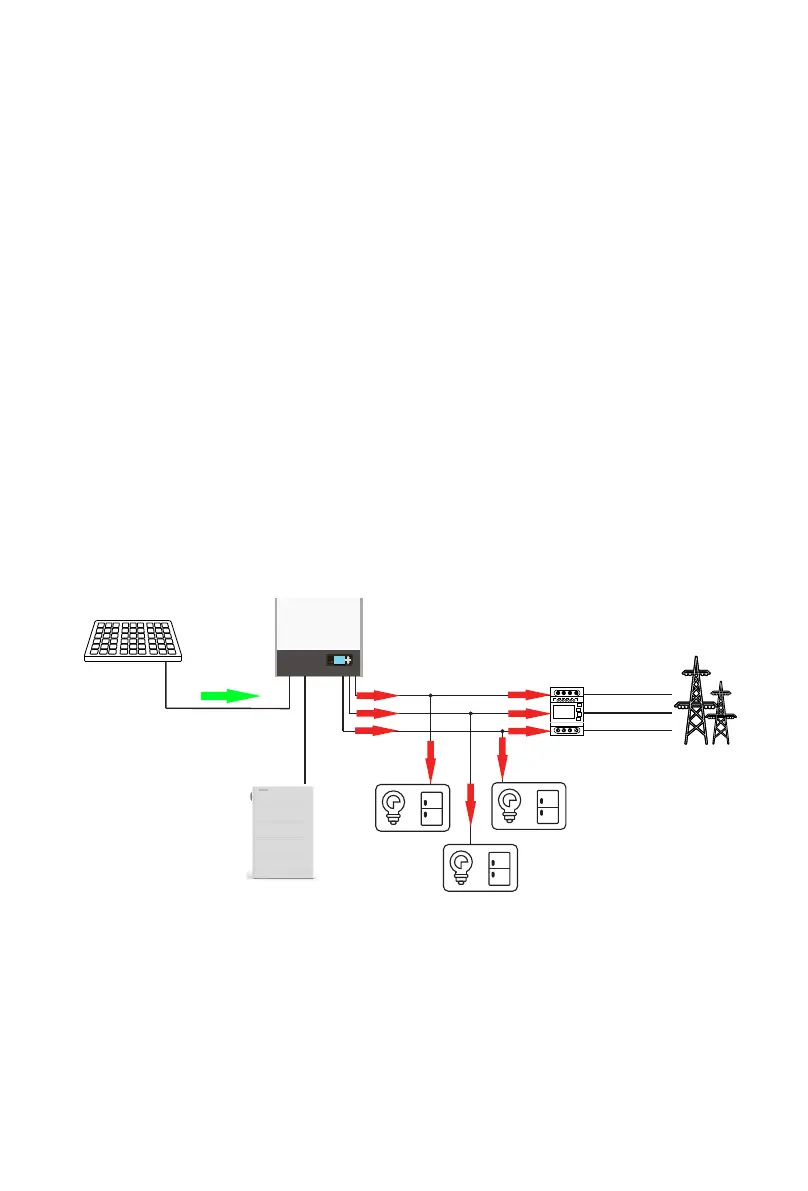

Figure 6.1

2kW

2.3kW

-0.3kW

2.3kW

6.9kW

-0.9kW

2kW

-0.3kW
