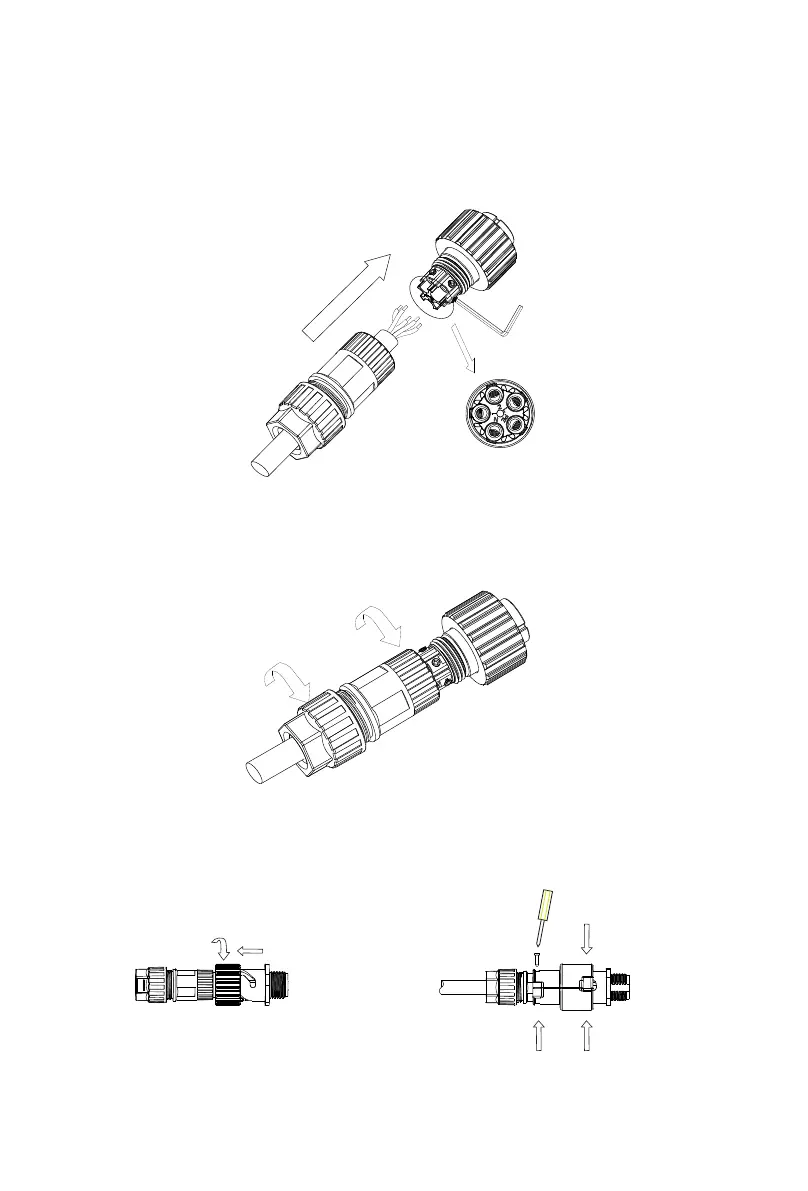

Step 2: Route the stripped cables through the locking nut, sealing ring and threaded

sleeve, insert them into the connection terminal in accordance with the marks on the

connection terminal, and secure the connection by tightening the screws. You can pull

the cables gently to ensure that the cables are secured in place.

Figure 5.13

Step 3: Push the threaded sleeve onto the connection terminal until both are locked

tightly. Then fasten the locking nut.

Step 4: Rotate the EPS connector to insert it all the way to the EPS output port. Secure the

screws to the protective cover using the screwdriver.

Figure 5.14

Figure 5.15

Step 5: To remove the EPS connector, loosen the screws on the protective cover, then

remove the cover. Rotate the EPS connector anticlockwise, then pull it out.

Tightening the EPS

connector

The inverter side

Securing the

screws

The inverter

side

The inverter

side

Figure 5.16

Connecting the AC connector:

Step 1: Disassemble the AC connector which is delivered in the accessory bag.

Figure 5.17

Step 2: Route the stripped cables through the locking nut, sealing ring and threaded

sleeve, insert them into the connection terminal in accordance with the marks on

the connection terminal, and secure the connection by tightening the screws. You

can pull the cables gently to ensure that the cables are secured in place.

Figure 5.18

The inverter

side

Securing the

screws

Locking

nut

Threaded

sleeve

Connection

terminal

2221
