Figure 5.11

Suggested wire length:

conductor cross section

Maximum cable length

Growatt

SPH 4000

TL3 BH-UP

Growatt

SPH 5000

TL3 BH-UP

Growatt

SPH 6000

TL3 BH-UP

Growatt

SPH 7000

TL3 BH-UP

Growatt

SPH 8000

TL3 BH-UP

Growatt

SPH 10000

TL3 BH-UP

10AWG

88m

70m

59m

50m

44m

35m

12AWG

55 m

44m

37m

31m

27m

22m

Connecting to the EPS output port:

Step 1: Disassemble the EPS connector which is delivered in the accessory bag.

Locking nut

Threaded sleeve Connection terminal

Figure 5.12

Ensure that the PV input voltage and current do not exceed the following thresholds:

Step 2: Insert the positive and negative PV cables into the positive (+) and negative (-)

poles of the PV input connector respectively.

Connect the PV panels using the MC4 connectors. Please proceed as follows:

Step 1: Turn off the PV switch.

Ø 2 MPPT inputs are available

Ø Max. PV voltage: 1000V (consider the lowest temperature)

Ø Max. PV input current per route: 13.5 A

It is recommended that cable greater than or equal to 4 mm / 10 AWG be used.

Note:

5.4.2 Connecting the AC Grid terminal and the EPS Output terminal

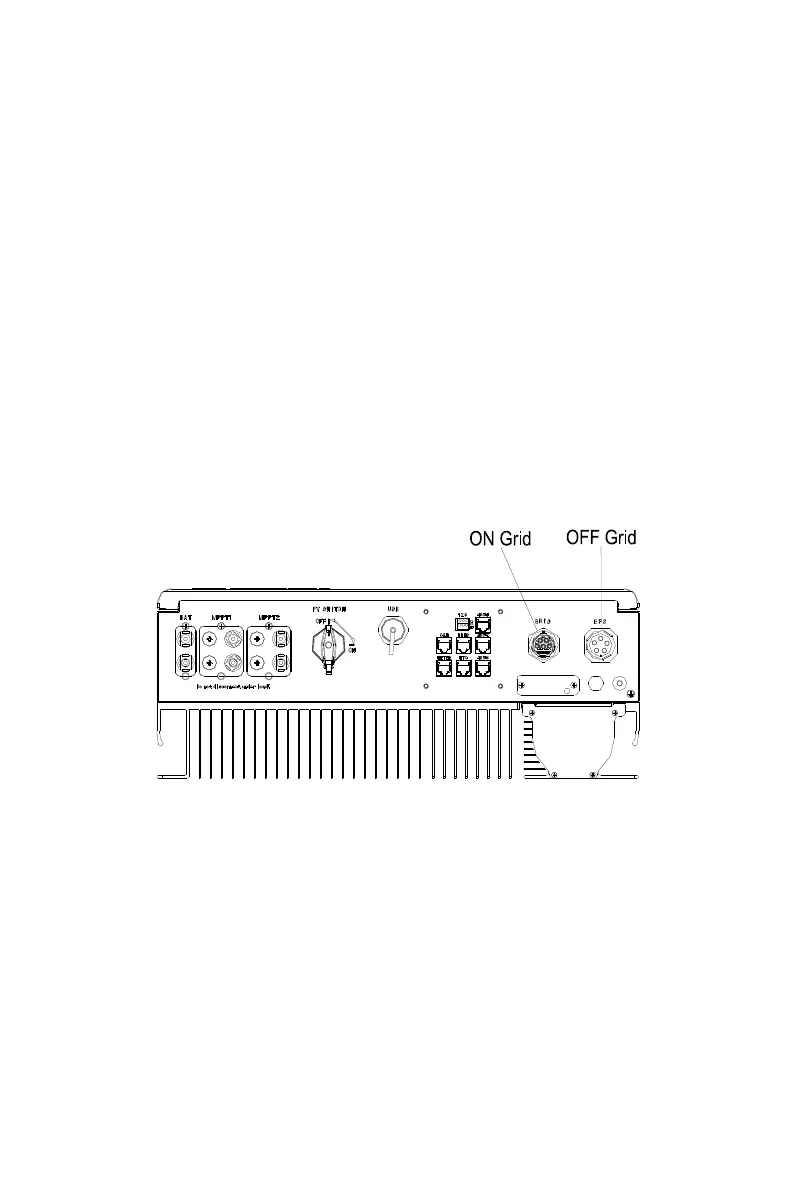

The SPH inverter comes with the AC Grid terminal and the EPS Output terminal. From the

bottom view, the AC Grid terminal is on the left, used to connect the inverter to the

utility grid; while the EPS Output terminal is on the right, connected to critical loads for

uninterrupted power supply.

Figure 5.10

Note: Locking screws (for details of the accessory kit, see Figure 4.1).

Note: When installing the equipment, you need to install the EPS output connector (Item

F in the accessory kit) onto the SPH whether the EPS output port is to be connected

or not, as shown in Fig 5.10.

2019
