3.4 Size and weight

Figure 3.3

3.5 Highlights of the SPH inverter

Ø Advanced battery safety.

Ø Two MPPT inputs.

Ø Smart energy management with various working modes.

Ø All-in-one design, maximizing self-consumption. Support the backup and peak shaving

functions.

The Growatt SPH inverter stands out with the following features:

Ø Easy installation.

A (mm)

B (mm)

C (mm)

D (mm)

Weight (kg)

Growatt SPH TL3 BH-UP

505

544

198

453

33

Inspection upon delivery 4

Before unpacking the inverter, check the outer packing materials for any externally visible

damage. After unpacking the inverter, check the scope of delivery for completeness. If the

scope of delivery is incomplete or damaged, please contact your dealer.

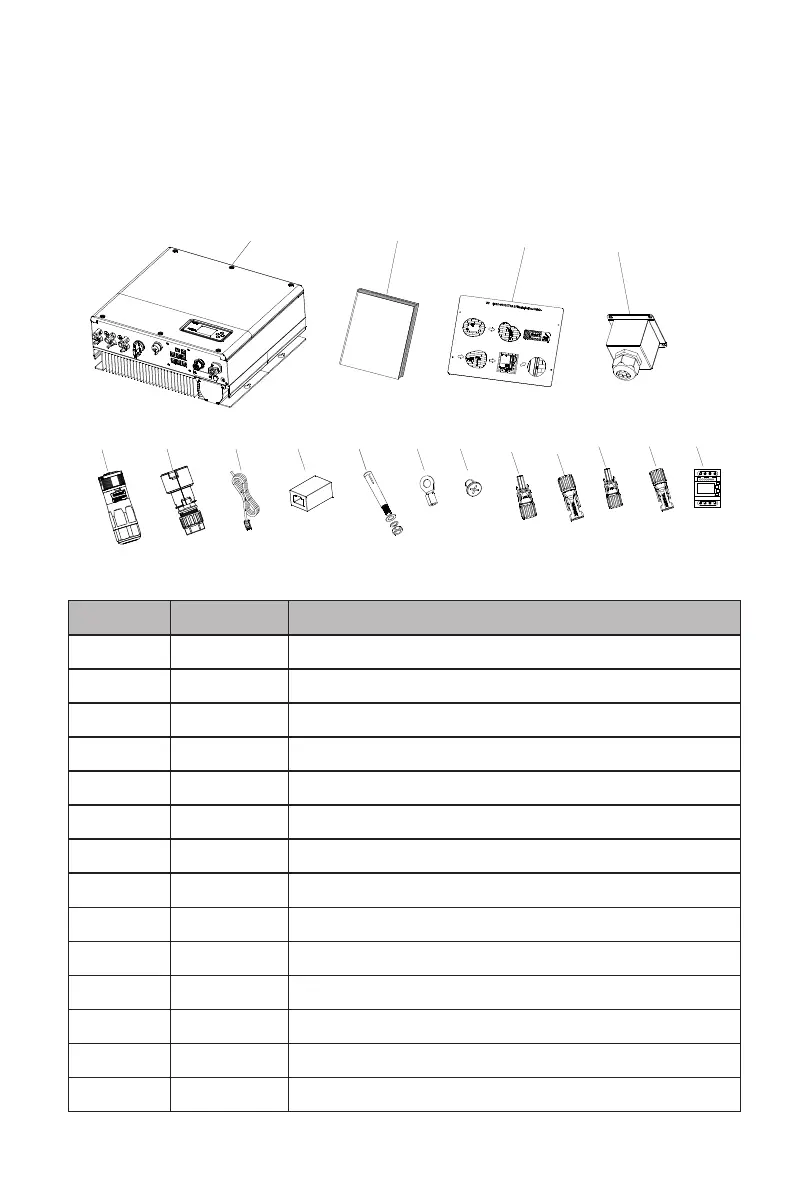

Packing list of the Growatt SPH inverter:

Item

Number

Description

A

1

SPH inverter

B

1

User Manual

C

1

Paperboard (installation guide)

D

1

Waterproof cover

E

1

AC Grid connector

F

1

EPS output connector (in red)

G

1

Communication cable

H

1

RJ45 connector

I

4

M6 screw set

J

1

Ring terminal (for Grounding)

K

4

M4 screw

L/M

2/2

MC4 connector (in black)

N/O

1/1

MC4 connector (in blue)

P

1

Electric meter

A

A B

C

D

E F G H I

J

K L M

Us

er M

a

nua

l

N O

P

Figure 4.1

1211
