3.3 Nameplate

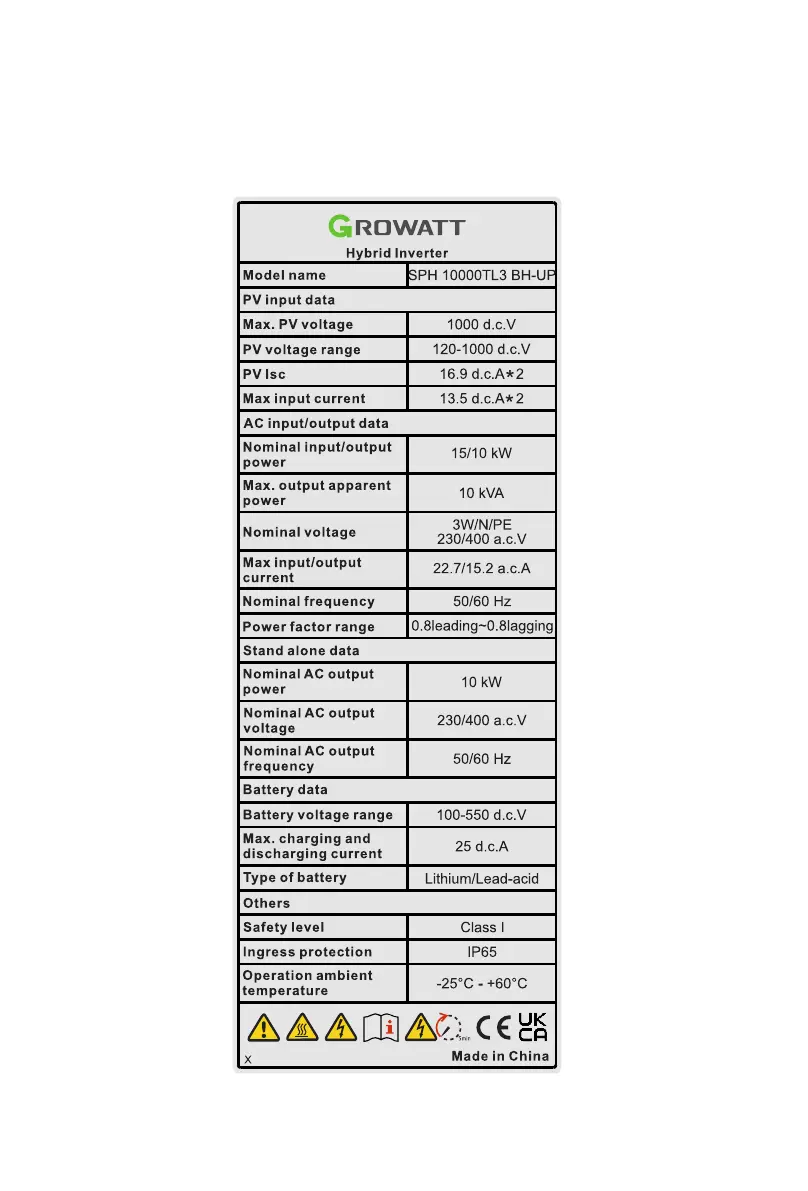

The figure below demonstrates the nameplate of SPH 10000TL3 BH-UP as an example.
The nameplate figure is for reference only. The actual nameplate prevails.
Figure 3.2
Description of the nameplate:
Product model
Growatt SPH 10000TL3 BH-UP
PV input data
Max. PV voltage
1000 d.c.V
PV voltage range
120~1000 d.c.V
PV Isc
16.9 d.c.A*2
Max. input current
13.5 d.c.A*2
AC input/output data
Nominal input/output power
15/10 kW
Max. output apparent power
10 kVA
Nominal voltage
3W/N/PE
230/400 a.c.V
Max input/output current
22.7/15.2 a.c.A
Nominal frequency
50Hz/60Hz
Power factor range
0.8 leading~0.8 lagging
Stand alone data
Nominal AC output power
10kW
Nominal AC output voltage
230/400 a.c.V
Nominal AC output frequency
50/60Hz
Battery data
Battery voltage range
100~550 d.c.V
Max. charge and discharge current
25 d.c.A
Type of battery
Lithium / Lead-acid
Others
Safety level
Class I
Ingress Protection
IP65
Operation ambient temperature
-25℃ ~+60℃
