Be sure to connect AC wires with correct polarity. If L and N wires are connected reversely, it may cause utilility
short-circuited when these inverters are worked in parallel operation.
CAUTION: Appliances such as air conditioner are required at least 2~3 minutes to restart because it’s required to
have enough time to balance refrigerant gas inside of circuits. If a power shortage occurs and recovers in a short
time, it will cause damage to your connected appliances. To prevent this kind of damage, please check with
manufacturer of air conditioner that if it’s equipped with time-delay function before installation. Otherwise, this off
grid solar inverter will trig overload fault and cut off output to protect your appliance but sometimes it still causes
internal damage to the air conditioner.
Note: SPF 3000T HVM-G2: Max. AC input current is 30A. If AC input current is over 30A, AC charge current will drop
down to zero. Then the system will cut off output in 10 seconds if the AC input is continued to be over 30A.
SPF 6000T HVM-G2: Max. AC input current is 50A. If AC input current is over 50A, AC charge current will drop
down to zero. Then the system will cut off output in 10 seconds if the AC input is continued to be over 50A.
Note:
‘AC-OUT-1’ will be as the main output line.
‘AC-OUT-2’ is intended for non-critical loads.
Under utility grid mode: AC-OUT-2 will always be available.
Under battery model: If overload happens, AC-OUT-2 will get cut off, only restart or system goes bypass would
make AC-OUT-2 available again. If battery under voltage happens, AC-OUT-2 will get cut off and it would be
available again when battery is back to normal.

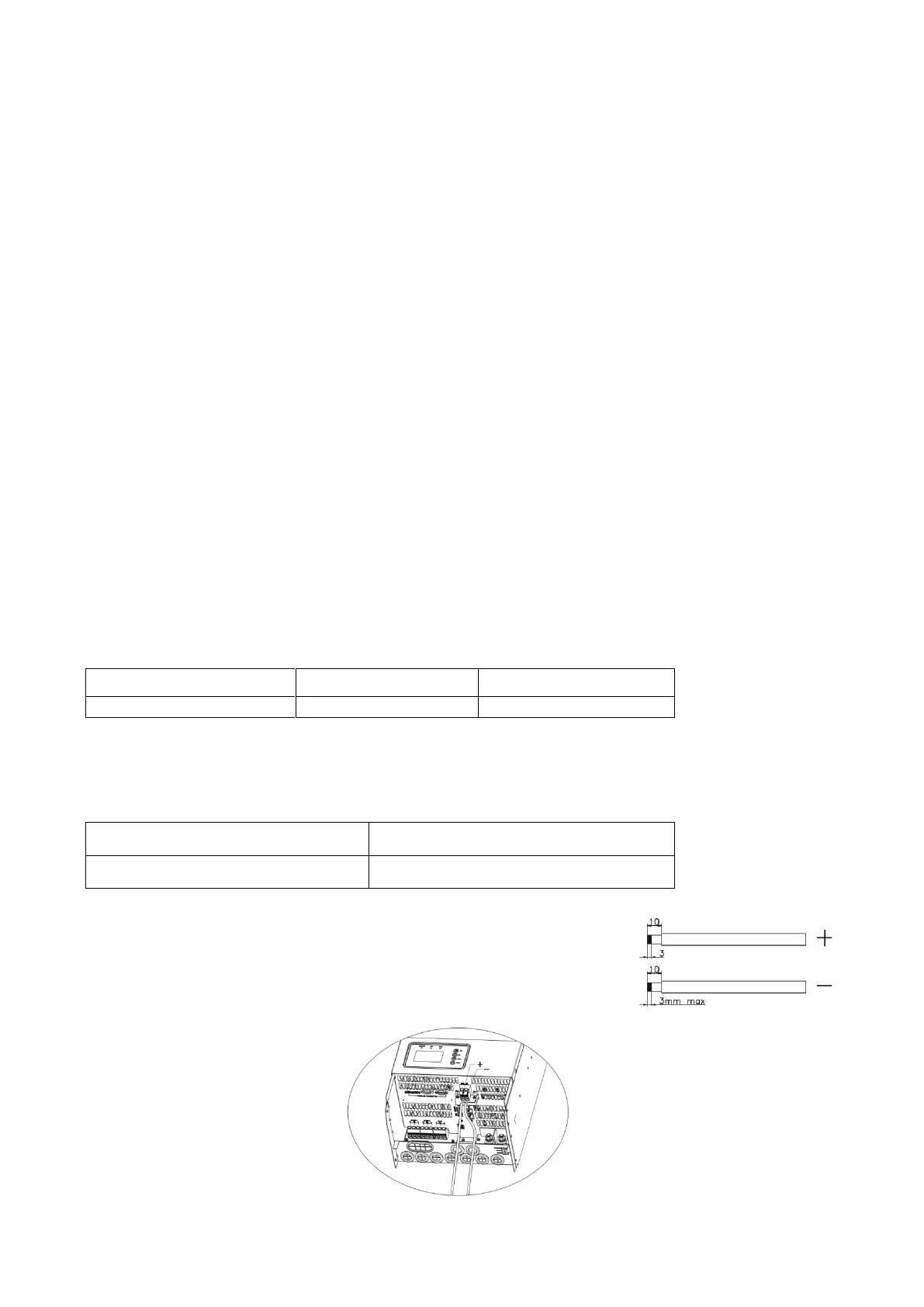

PV Connection
CAUTION: Before connecting to PV modules, please install separately a DC circuit breaker between inverter and
PV modules.
WARNING! All wiring must be performed by a qualified personnel.
WARNING! It’ very important for system safety and efficient operation to use appropriate cable for PV module
connection. To reduce risk of injury, please use the proper recommended cable size as below.
Model
Wire Size
Torque value
SPF 3000-6000T HVM-G2
1 * 8AWG
1.2-1.6 Nm
PV Module Selection:
When selecting proper PV modules, please be sure to consider below parameters:
1.
Open circuit Voltage (Voc) of PV modules not exceeds max. PV array open circuit voltage of inverter.
2.
Open circuit Voltage (Voc) of PV modules should be higher than min. battery voltage.
Please follow below steps to implement PV module connection:
1.
Remove insulation sleeve 10 mm for positive and negative conductors.
Check correct polarity of connection cable from PV modules and PV input
connectors. Then, connect positive pole (+) of connection cable to positive
pole (+) of PV input connector. Connect negative pole (-) of connection
cable to negative pole (-) of PV input connector.
2.
Make sure the wires are securely connected.
INVERTER MODEL
SPF 3000-6000T HVM-G2
Max. PV Array Open Circuit Voltage
250Vdc
