7

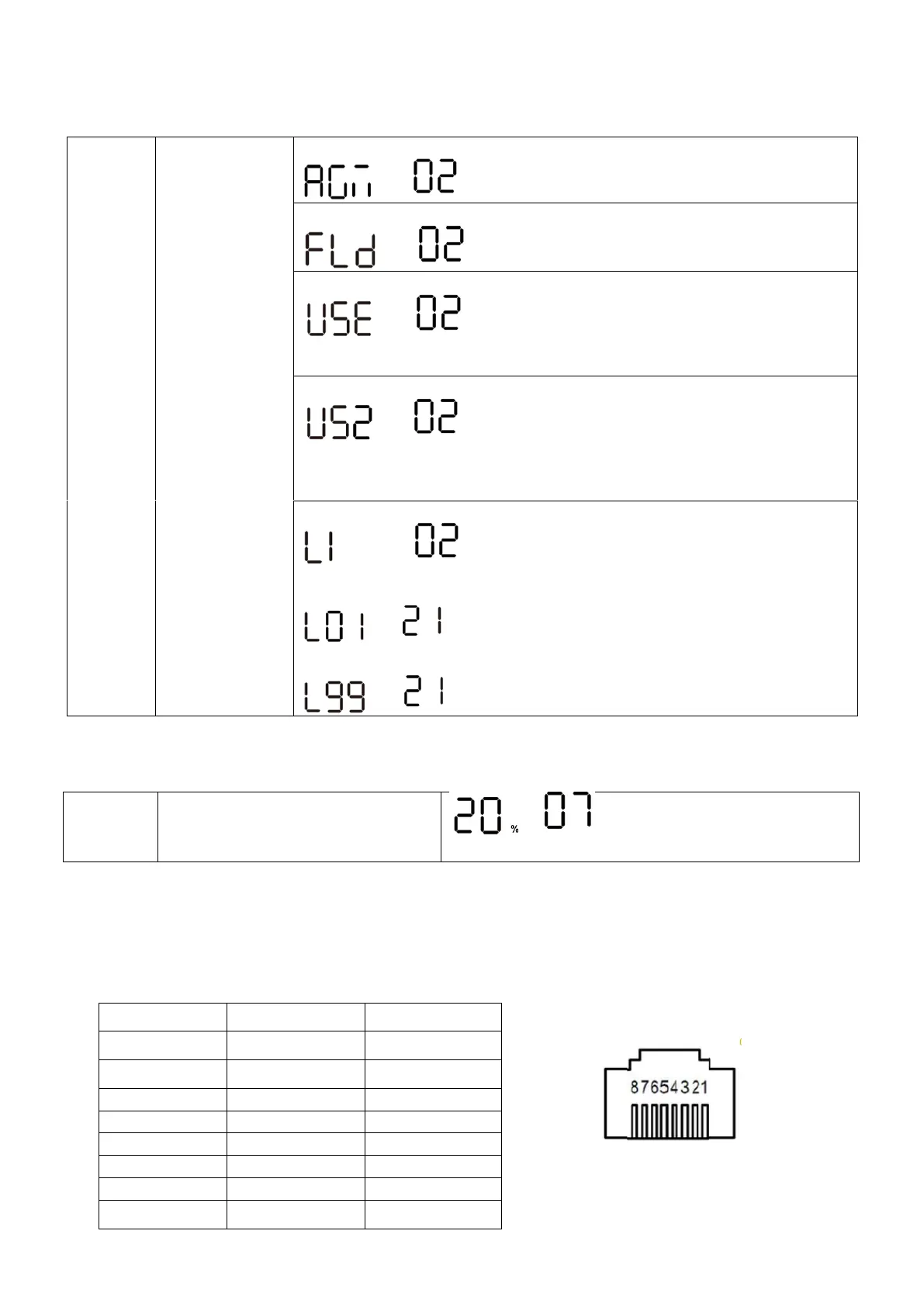

2. LCD setting
To connect battery BMS, need to set the battery type as “LI” in Program 02. After set “LI” in Program 02, it will
switch to Program 21 to choose battery type. There will be some options under Program 21.
RS485 communication protocol is L01 to L49，The CAN communication protocol is L51 to L99.
When the battery type set to Li, the setting option 07 will change to display percent.
Note: When the battery type set as “Li”, the Maximum charge current can’t be modified by the
user. When the communication fail , the inverter will cut off output.
Inverter Connection
Growatt off grid inverters and this controller can communicate to summarize data. Make sure the inverter connect to
the controller Pin to Pin as below by communication port (“COM” port on the controller).
Pin number
RS485
CAN
1
RS485B
--
2
RS485A
--
3
--
--
4
--
CANH
5
--
CANL
6
--
--
7
--
--
8
--
--
02
Battery type
AGM (default)
Flooded
User-Defined
If “User-Defined” is selected, battery charge voltage and low DC cut-off voltage
can be set up in program 05, 06 and 07.
User-Defined 2
Suitable for lithium battery when inverter not communicated with BMS.
If “US2” is selected, battery charge voltage and low DC cut-off voltage can be set
up in program 05,06 and 07.
Lithium
Only suitable for lithium battery when inverter communicated with BMS.
The lithium battery BMS communication protocol options:
……
07
Low DC cut-off SOC. If “Li” is selected
in program 2, this program can be set
up.
Default 20%, 5%~50% Settable.
