3.2.3 Labels in the wire box
3.3 Inverter Dimension and Weight
3.4 Arc-Fault Circuit Interrupter
3.5. Transportation
communication product in "Installer" mode if you do not require the function. The
2011 edition of the National Electrical Code R, Section 690.11 stipulates that newly
installed PV systems attached to a building must be fitted with a means of detecting
In accordance with the National Electrical Code Article 690.11, the inverter has a system
for the recognition of electric arc detection and interruption. An electric arc with a
power of 300 W or greater must be interrupted by the AFCI within the time
specified by UL 1699B. A tripped AFCI can only be reset manually. You can deactivate the
automatic arc fault detection and interruption (AFCI) via a
and disconnecting serial electric arcs (AFCI) on the PV side.
The inverter is thoroughly tested and strictly inspected before delivery. Our inverters
leave our factory in proper electrical and mechanical condition. Special packaging
ensures safe and careful transportation. However, transport damage may still occur. The
shipping company is responsible in such cases. Thoroughly inspect the inverter upon
delivery. Immediately notify the responsible shipping company if you discover any
damage to the packaging which indicates that the inverter may have been damaged or if
you discover any visible damage to the inverter. We will be glad to assist you, if required.
When transporting the inverter, the original or equivalent packaging should to be used,
and the maximum layers for original carton is six, as this ensures safe transport.
1
PV+
BAT
PV-
2 3 4 1 2 3 4 + -
L2
BACKUP
L1 L1 N
GRID
L2
Model
MIN 3000~7600TL-XH-US
Dimension
400*569*177.5 mm(15.75*22.41*6.98 inch)
Weight
14.65kg(32.30Ibs)
Fig 3.4
Fig 3.5
12
11

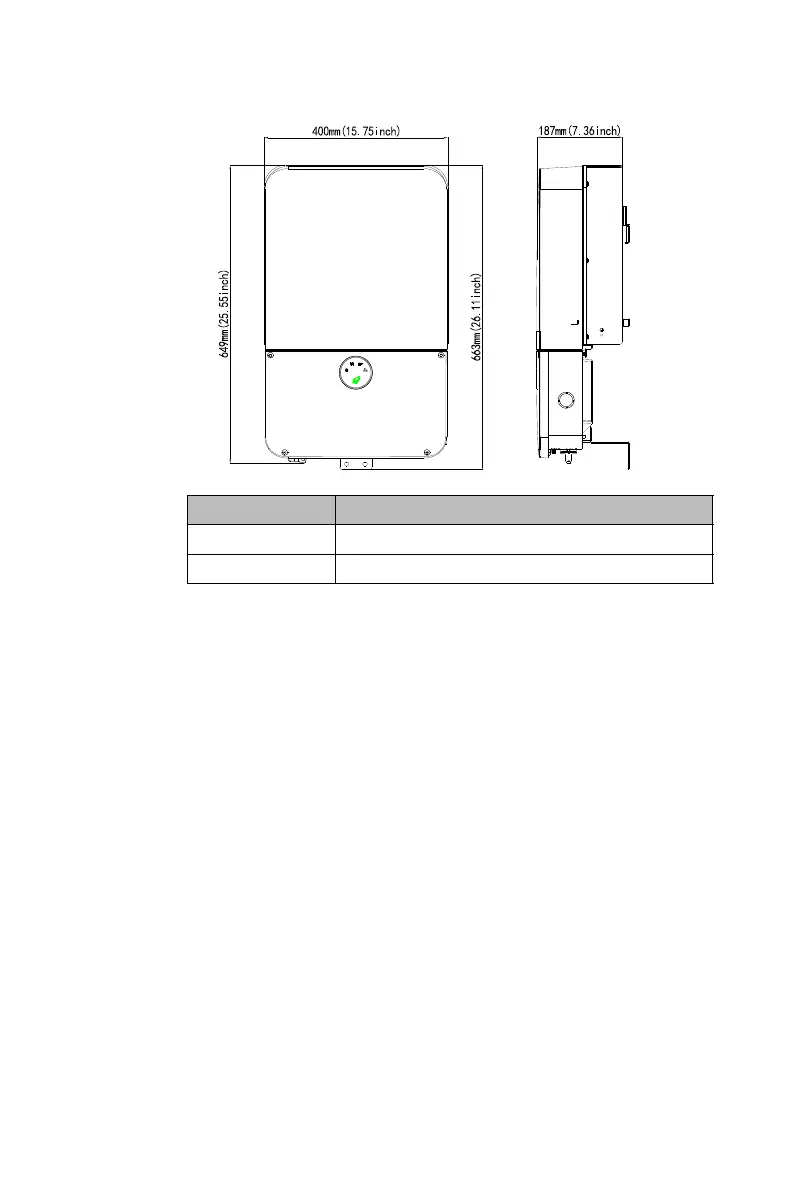

Model
MIN 8200~11400TL-XH-US
Dimension
400*649*187 mm(15.75*25.55*7.36 inch)
Weight
20.5kg(45.19Ibs)
