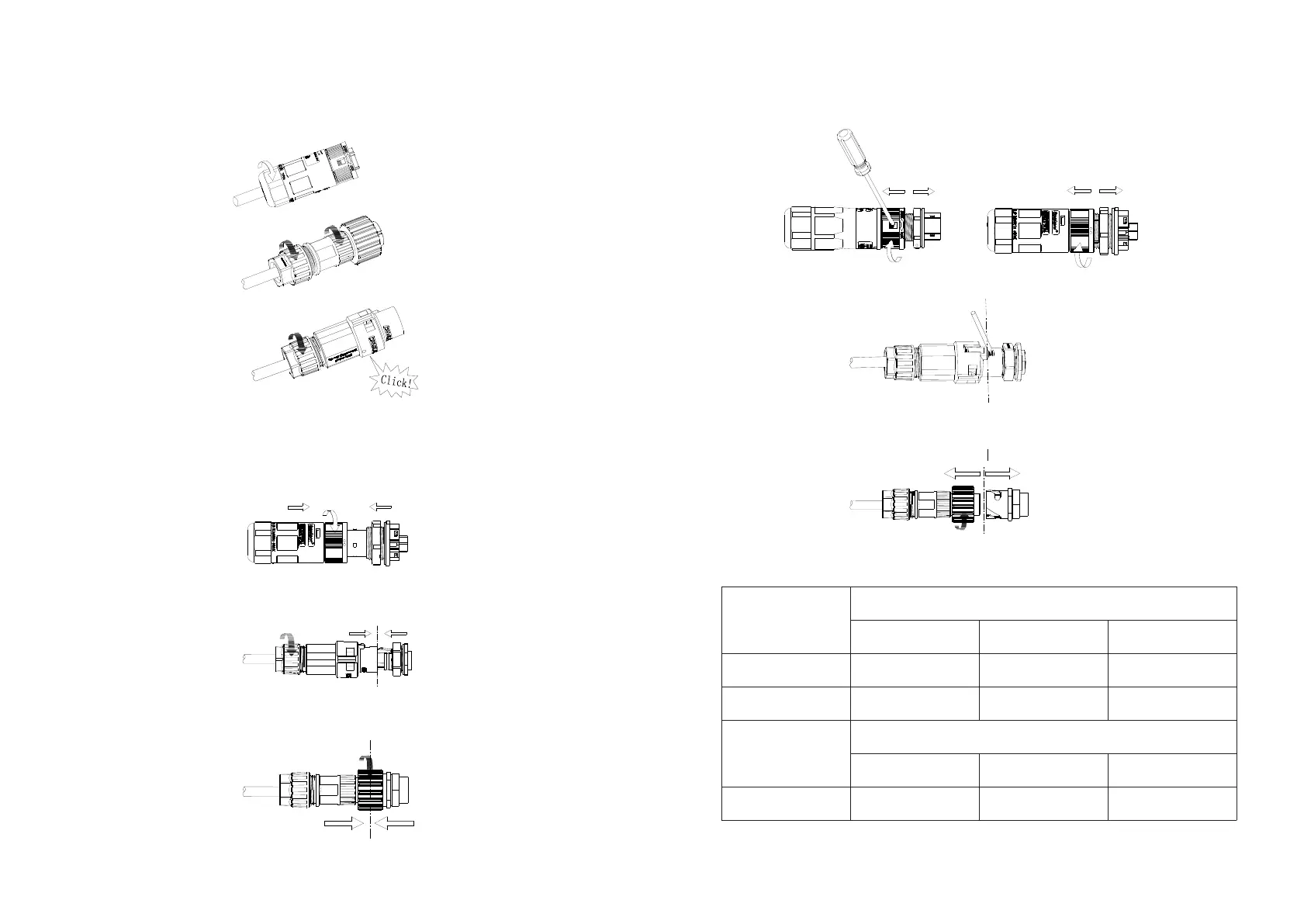

3.Push the threaded sleeve into the socket, Tighten up the cap on the terminal.
4.Finally, Push or screw the threaded sleeve to connection terminal until both are locked
tightly on the inverter.
5.To remove the AC connector, press the bayonet out of the slot with a small screwdriver
and pull it out,or unscrew the threaded sleeve,then pull it out.
Wire suggestion length
Conductor cross
section
Conductor cross
section
Max. cable length
Max. cable length
MIN 2500 TL-XH
MIN 4200 TL-XH
MIN 4600 TL-XH
MIN 3000 TL-XH
MIN 5000 TL-XH
MIN 3600 TL-XH
MIN 6000 TL-XH
4 mm² 12AWG
5.2 mm² 10AWG
48m
28m
40m
26m
33m
24m
5.2 mm² 10AWG
60m 50m
42m
Unlock the housing
The Inverter Side
The Inverter Side
Unlock the housing
The Inverter Side
Unlock the housing
The Inverter Side
The Inverter Side
Lock the housing
The Inverter Side
Lock the housing
The Inverter Side
Lock the housing
