AC voltage withstand
4KV for 1 minute
Impulse voltage withstand
6KV-1.2uS waveform
Overcurrent withstand
20Imax for 0.5s
Pulse output 1
1000imp/kWh (default)
Pulse output 2
400imp/kWh
Display
Max. Reading
LCD with white backlit
999999kWh
Environment
Operating temperature
-25℃to +55℃
Storage and transportation
temperature
-40℃to +70℃
Reference temperature
23℃±2℃
Relative humidity
0 to 95%, non-condensing
Altitude
up to 2000m
Warm up time
3s
Installation category
CAT II
Mechanical Environment
M1
Electromagnetic environment
E2
Degree of pollution
2
Mechanics
Din rail dimensions
72x66x100 (WxHxD) DIN 43880
Mounting
DIN rail 35mm
Ingress protection
IP51 (indoor)
Material
self-extinguishing UL94V-0

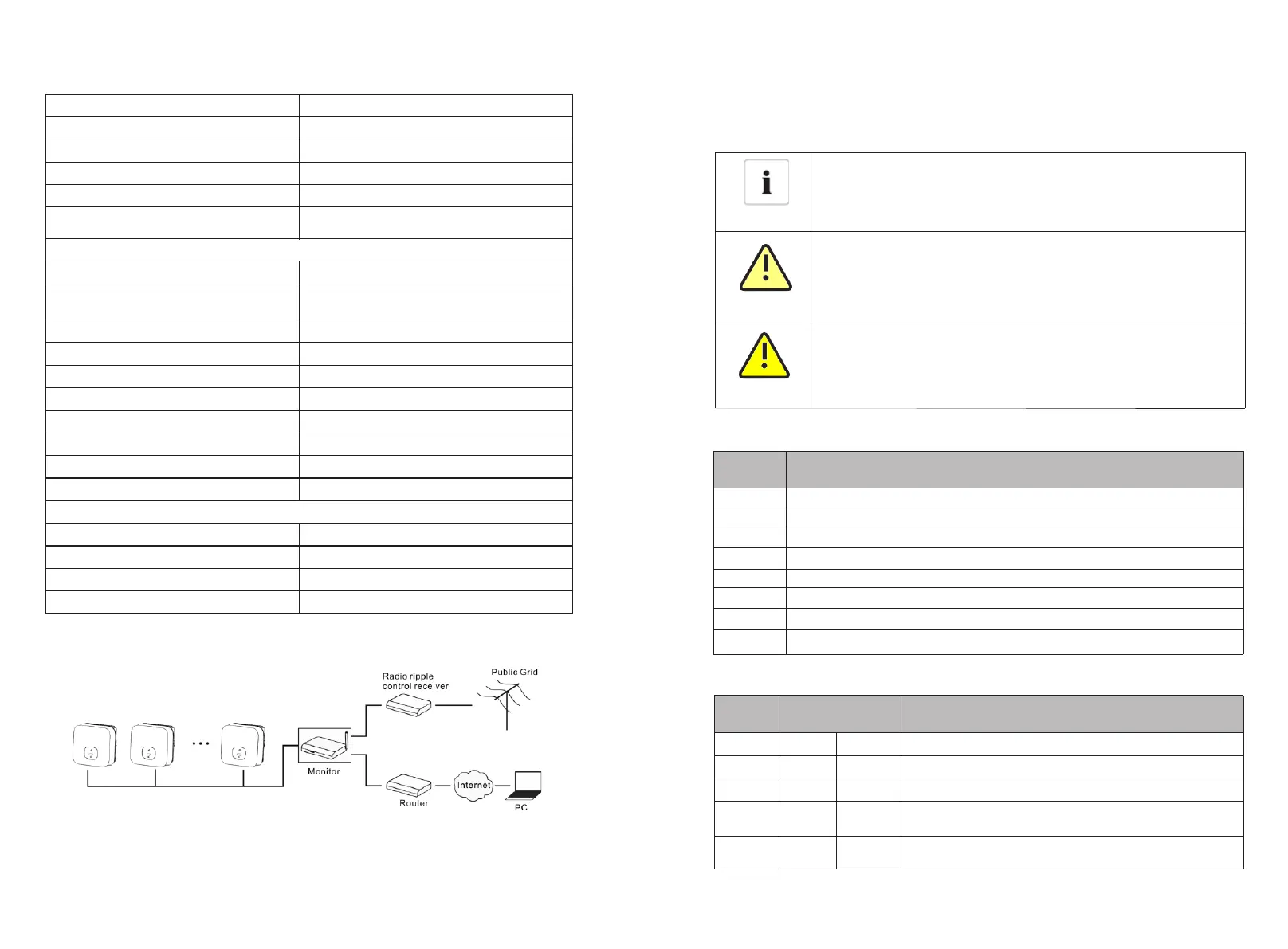

Fig 6.16
Active power control with a Radio Ripple Control Receiver(RRCR).
6.7 Inverter demand response modes (DRMS)
This series inverter has the function of demand response modes, We use 16-Pin
socket as inverter DRMS connection.
6.7.1 16-Pin socket pin assignment
Pin No.
Assignment for inverters capable of both charging and
discharging
9
10
11
12
13
14
15
16
DRM 5
DRM 6
DRM 7
DRM 8
RefGen
Com/DRM0
NC
NC
DRMS application description
Ø Applicable to AS/NZS4777.2:2015 or Commission Regulation
(EU) 2016/631.
Ø DRM0, DRM5, DRM6, DRM7, DRM8 are available.
Damage to the inverter due to moisture and dust penetration
Ø Make sure the cable gland has been tightened firmly.
Ø If the cable gland are not mounted properly, the inverter can be
destroyed due to moisture and dust penetration. All the
warranty claim will be invalid.
Information
CAUTION
WARNING
Excessive voltage can damage the inverter!
External voltage of DRM PORT don't over +5V.
6.7.2 Method of asserting demand response modes
Mode
DRM 0
DRM 5
DRM 6
DRM 7
DRM 8
Function
14
9
10
11
12
13
13
13
13
13
Operate the disconnection device.
Do not generate power.
Do not generate at more than 50% of rated power.
Do not generate at more than 75% of rated power and
reduce the reactive power as far as possible.
Increase power generation (subject to constraints
from other active DRMs).
Socket asserted
by shorting pins
25
26
