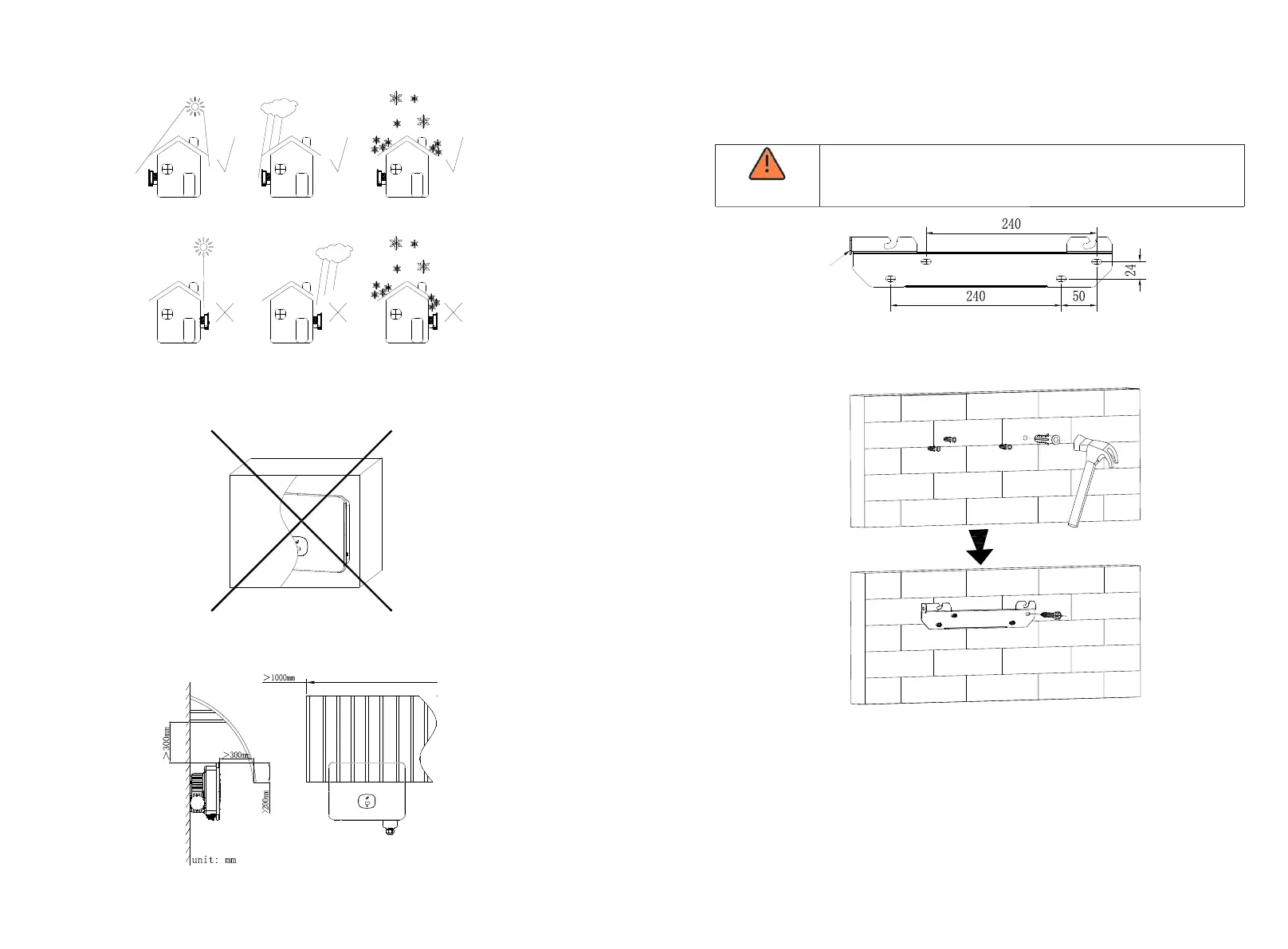

Fig 5.4 Installation Environment
Ø Make sure that the inverter is installed in a suitable place and is not allowed to be
installed in a closed box;
Fig 5.5 Closed box
Ø In order to reduce the inverter load and extend the life of the inverter due to direct
sunlight, we recommend installing a awning. The distance between the awning and
the inverter is as follows:
5.2 Install the wall mount
5.2.1 Install the wall mount
To prevent electric shock or other damage, be sure to check the
wall for power or other piping before opening the hole in the wall.
Danger
Secure the wall mount as shown, do not let the screws flush with the wall, instead
expose 2 to 4 mm.
5.3 Installing the inverter
Note: Before installing the inverter, you must first make sure that the wall mount is
firmly fixed to the wall.
steps:
1.Hang the inverter on the wall mount and keep the inverter balanced when hanging.
2.To ensure that the inverter can be securely attached to the wall, secure the side of
the inverter with the M5 safety screw on the left.
Fig 5.6 Sunshade
Fig 5.7 Specifications of wall mount
Fig 5.8 Schematic diagram of wall mount installation
keep the bracket
installed horizontally
