5.9.3.1 3P4W wiring
4443

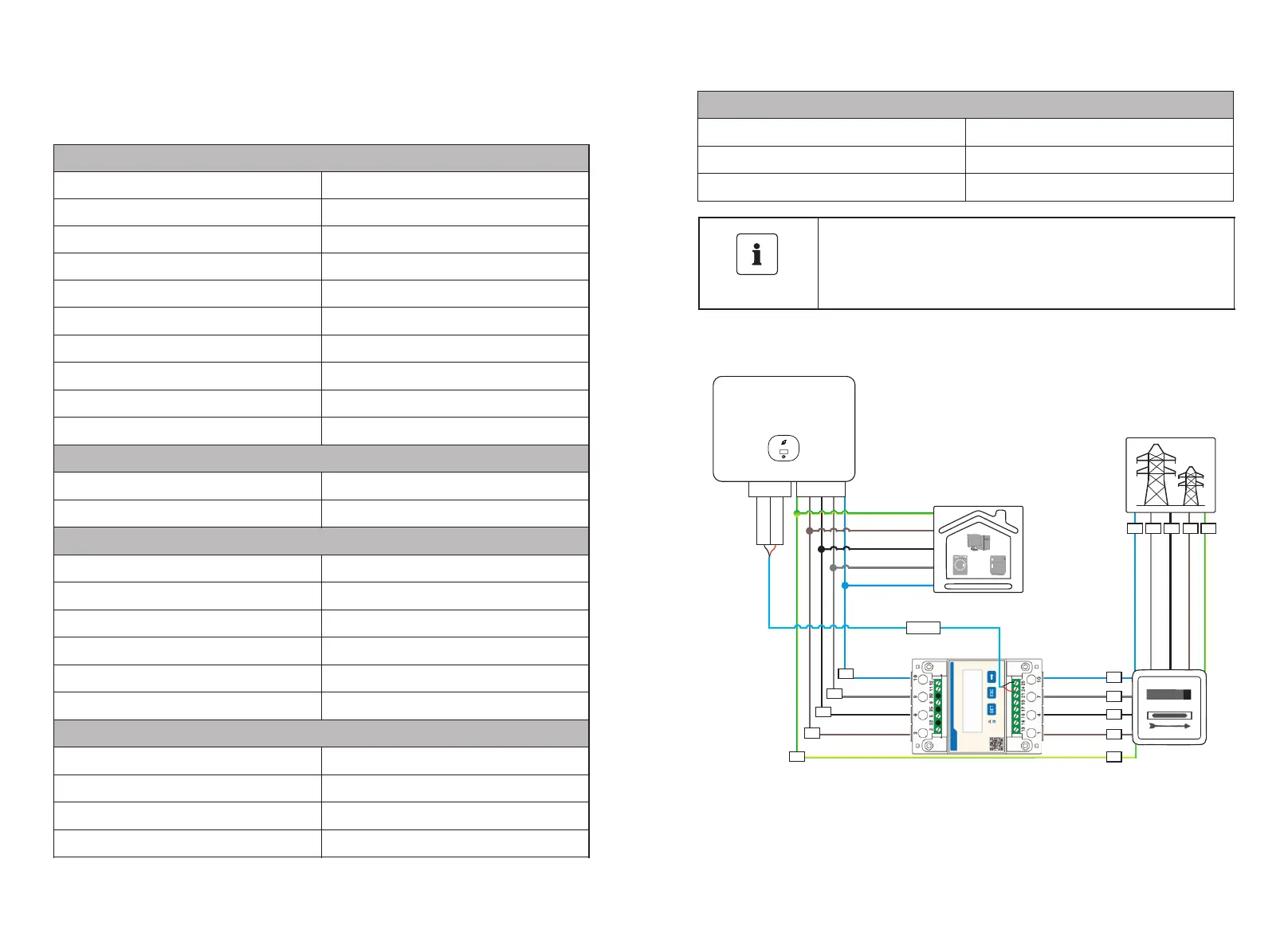

Figure 5-18 3P4W system (with a CHINT meter)
5.9.3 Connecting CHINT smart meter
Table 5-7 CHINT smart meter specific parameters
General specifications
Rate voltage
3×230/400Vac
Reference frequency
50Hz/60Hz
Specified operating voltage range
0.9Un~1.1Un
Extended operating voltage range
0.8Un~-1.15Un
Voltage line power consumption
<1.5W/6VA
Input current
0.25-5(80)A
Starting current
0.004lb
AC voltage withstand
2kV /5mA for 1 minute
Impulse voltage withstand
4kV-1.2/50uS waveform
Max. Reading
9999999kWh
Accuracy
Active power
1% of range maximum
Reactive power
2% of range maximum
Environment
Rated temperature
-10℃~+45℃
Limit temperature
-25℃~+70℃
Relative humidity (average annual)
<75%
Atmosphere
63.0kPa~106.0kPa
Installation category
CAT III
Degree of pollution
Conform to RoHS
Communication
Communication
RS485 output for Modbus RTU
Baud rate
9600
Pulse
400imp/kWh
Communication port
PIN 24, RS485A/PIN 25, RS485B
Mechanics
Din rail dimensions
100×72×65mm (LxW×H)
Mounting
DIN rail 35mm
Sealing
IP61(indoor)
ACCOM
PE
L1
L2
L3
PE
L1
L2
L3
L2
L3
L1
PE
R
S
4
8
5
A
R
S
4
8
5
B
N
N
LOAD
Grid
N
0
0
0 0 0 0
RS485
Meter
Ÿ The communication address of CHINT meter is 4.
Ÿ Pin 1/2/3/4 of the meter are connected to the grid and Pin
5/6/7/8 to the inverter.
