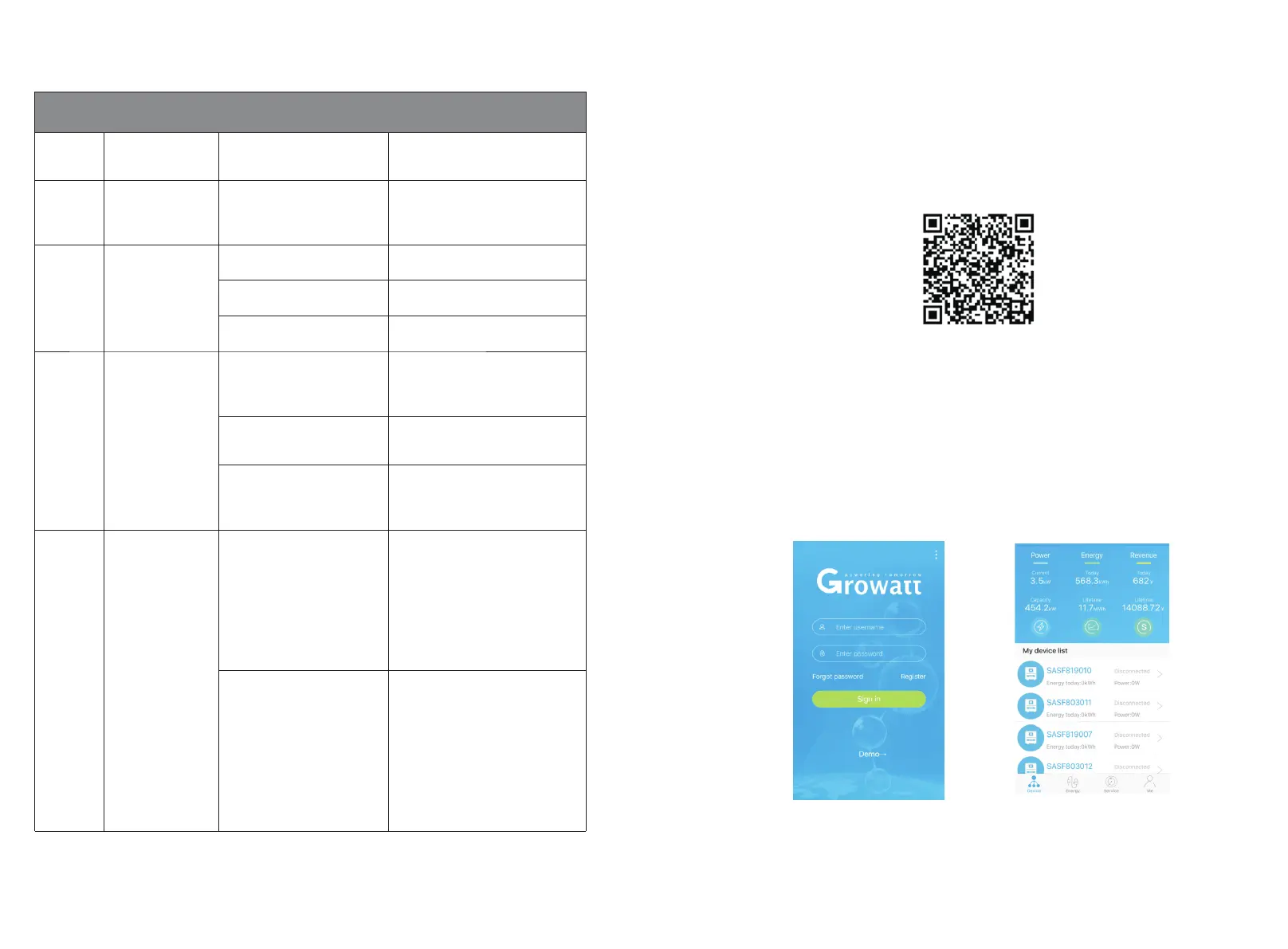

8.1 Remote data monitoring
8.1.1 Mobile phone APP(ShinePhone) remote monitoring
MAX series inverter remote monitoring ways include APP(ShinePhone) and server
Web page, RS485,GPRS,4G,PLC(reserved) can satisfy both ways of monitoring.
1>Scan the following QR code, or download from Android store or App store by
searching“Shinephone”, download and install software.
Note: 1.Make you it's the latest version.
2.Please find more details on http://server.growatt.com.
2>Users can register their mobile APP account by following the steps below:
Run ShinePhone, go to login page, click "register”.Registration is required to fill in
the information, with the * is required, the agreement is mandatory, you can
log in to the main interface of ShinePhone after registration, the registration
page and the main interface are as shown below.
Fig 8.1
Shinephone login and main page:
Monitoring 8
Fig 8.2
Fig 8.3
Description of LED status
Position
of LED
Type of LED
Inverter status
LED status
B
AC voltage
indicator light
With AC voltage,
inverter is in a fault state
T he g re e n l ig h t f la s h es
slowly, and the alarm or fault
indicator light is steady red.
C
Alarm or fault
indicator light
Inverter works normally
Light is not on
Inverter is in alarm state
Red light flashes slowly
Inverter is in fault state
Red light is on
D
Communication
indicator light
Inverter has external
communication, such as
RS485, GPRS, etc.
Green light is on
Inverter has no external
communication
Light is not on
Inverter upgrade or USB
interface is reading and
writing data
Green light flashes
E
Power or fault
code indicator
light
Inverter is in the grid
state
The eight LEDs from left to
right represent the power of
the inverter: if 8 green lights
are on, it represents 100% of
the inverter power. As shown
in Figure 7.3, it represents
37.5% of the inverter power,
and so on.
Inverter is in fault state
The five LEDs from right to
left represent 1, 2, 4, 8, 16 in
turn, representing the fault
cod e of the in v er te r. As
shown in Figure 7.4, the LED
status represents 2, and then
2 is added to the specific 99
to get 101, so it can be
k no w n t ha t t h e i n v e rt e r
reported error 101.
