Multiple inverters
ShineMaster
cable Router
41
42

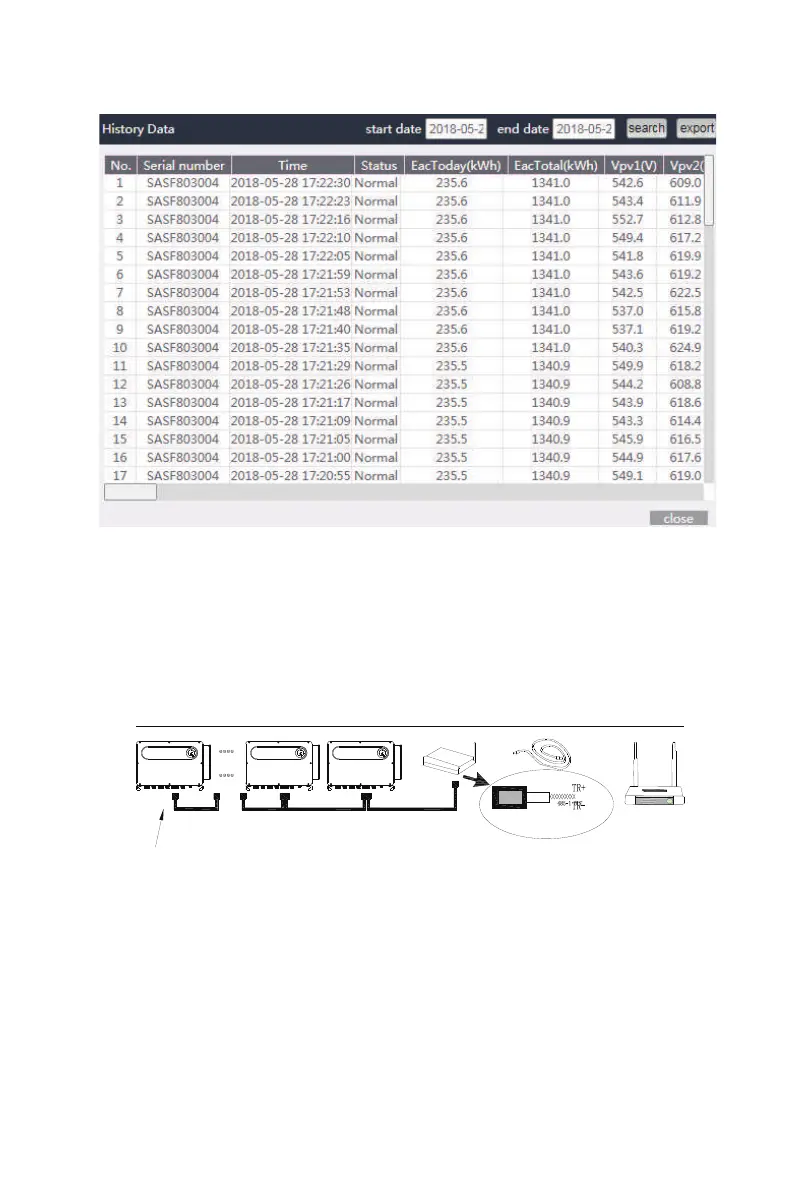

Fig 8.23
Fig 8.24
This is a cost-effective and compact monitoring device that is specially designed for solar
power plants, with a high-speed CPU and a stable Linux system that intelligently records
the user's system characteristics.
Feature:
1> A versatile and high-performance communication data logger that notifies the user
of system status at any time.
2> Flexible parameter setting, system information management, error prompting and
recording, high-capacity storage.
3> Collect data and upload data to Growatt in real time over the network.
Note: The smart meter and environmental monitor must be Growatt's designated
manufacturer, otherwise monitoring will not be possible. When RS485 of multiple
machines is used in parallel, please connect the ground wire according to section 6.3.1.
Add matching resistance
RS485 twisted pair cable
485-1 IN
485-1 OUT
485-1 IN
Multiple inverters
GPRS/4G
ShineMaster
Connecting communication cable
router
Connecting communication cable
Connecting
communication
cable
Connecting communication cable
4G/GPRS
4G/GPRS
Computer
Phone
Pad
Internet
DB
data storage
RS 485
Computer
The system framework of communication monitoring is shown in the figure below. Users
can choose the most suitable monitoring method according to the actual situation.
8.1.2.2 Shinemaster monitoring
