6 Connecting Cable
6.1 Connection on AC side
• Before electrical connection, please ensure the inverter DC switch is
at“OFF” ,and disconnect AC switch, otherwise the high voltage from
inverter may cause life risk.
• Only trained authorized electrical technician can do the electric
connection also please follow the connection procedures in this manual
along with local country's regulations.
• High voltage may cause electric shocks and serious injury please do not
touch the inverter.
• Please do not store inverter in area with flammable and explosive
material.
• Each inverter must install one AC breaker ,and one AC breaker is
forbidden to share with other inverters.
• It is forbidden to add load between inverter and breaker.
Preparation before connection:
1> Disconnect inverter DC switch and AC breaker or switch.
2> When you lock the AC cable's screw, the torque force should be 25kgf·cm
When you lock the cover screw, the torque force should be 20kgf·cm.
3> Measure the grid voltage and frequency, please refer to chapter 10.
17
18
Decisive Voltage Class (DVC) indicated for ports
Port Name
Class
AC
DC
DRMS
RS485&USB
C
C
A
A
Inverter model
Breaker model
MAX 175KTL3-X HV
200/250A 1000Vac
MAX 185KTL3-X HV
200/250A 1000Vac
MAX 196KTL3-X HV
200/250A 1000Vac
MAX 216KTL3-X HV
200/250A 1000Vac
MAX 225KTL3-X HV
250/320A 1000Vac
MAX 230KTL3-X HV
250/320A 1000Vac
MAX 250KTL3-X HV
250/320A 1000Vac
MAX 253KTL3-X HV
250/320A 1000Vac
Notice: The cable must be unbroken. When using aluminum alloy cables, please use
copper-aluminum transition terminals.
• If the cable is thick, after tightening the cable do not shake it and
ensure the cable is well-connected and then start the inverter. Loose
connection may cause overheat.

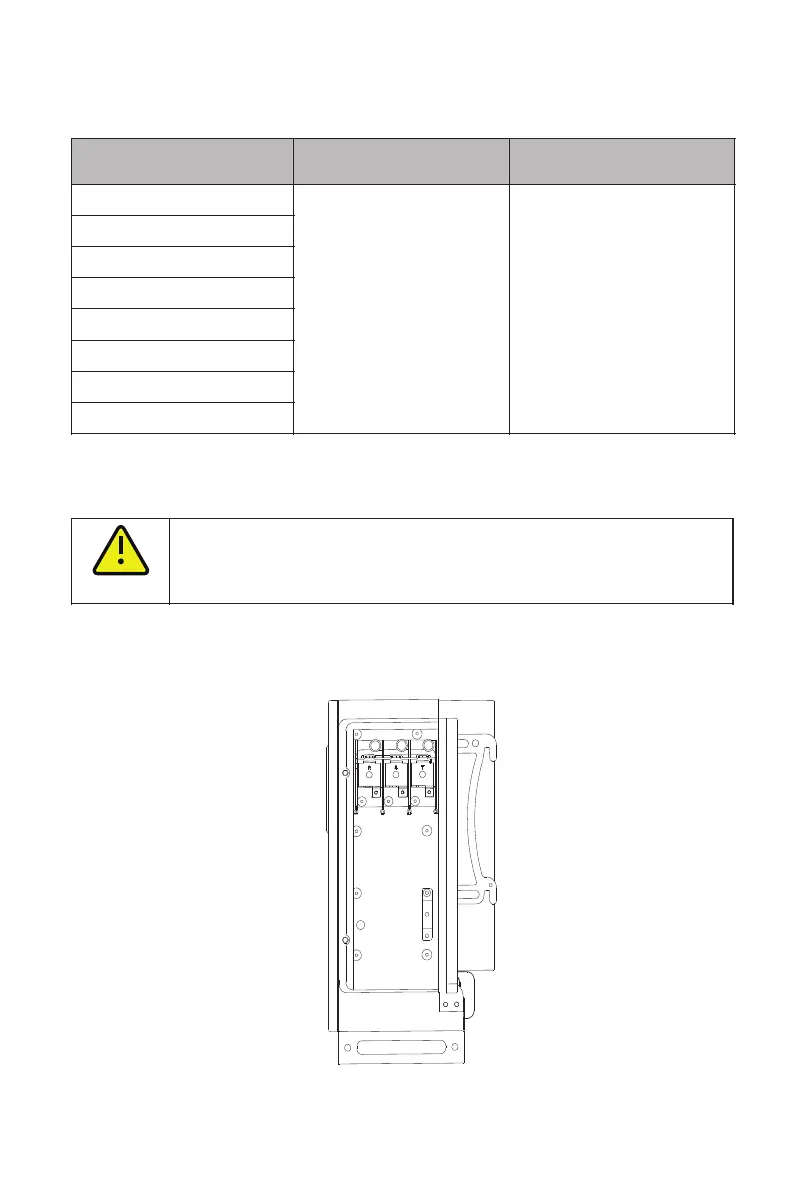

1>Following drawing shows inverter's AC terminal, R, S, T are three live lines
Notice: The screw is a matching M12 screw.
Fig 6.1
Inverter Model
Copper wire cross
sectional (mm2)
Copper wire
recommendation (mm2)
MAX 175KTL3-X HV
70-95
70
MAX 185KTL3-X HV
MAX 196KTL3-X HV
MAX 216KTL3-X HV
MAX 225KTL3-X HV
MAX 230KTL3-X HV
MAX 250KTL3-X HV
MAX 253KTL3-X HV
DANGER
WARNING
AC breaker specification:
Cable specification:
WARNING
AC side connection steps:
