5 Installation
• To prevent device damage and personal injury, keep balance when
moving the inverter because it is heavy.
• Do not place the inverter with its wiring and signal terminals at the
bottom contacting with floor or any other object because the terminals
are not designed to support the weight of inverter.
• When placing inverter on the floor, put foam or paper under the
inverter to protect its cover.
5.1 Basic Installation Requirements
A. Ensure that the installation wall is solid enough to bear the inverter(Inverter weight
please refer to installation manual Chapter3, 3.2 ).
B. There must be enough installation space to fit the size of inverter.
C. Do not install inverter on flammable or heat-intolerant buildings.
D. This inverter is IP 66 protection, you can install it indoor or outdoor.
E. To avoid inverter performance de-rate due to the over heat, please do not expose the
inverter under direct sunlight.
F. The installation humidity can be from 0-100%.
G. The surrounding temperature of inverter should be from -30℃ - +60℃.

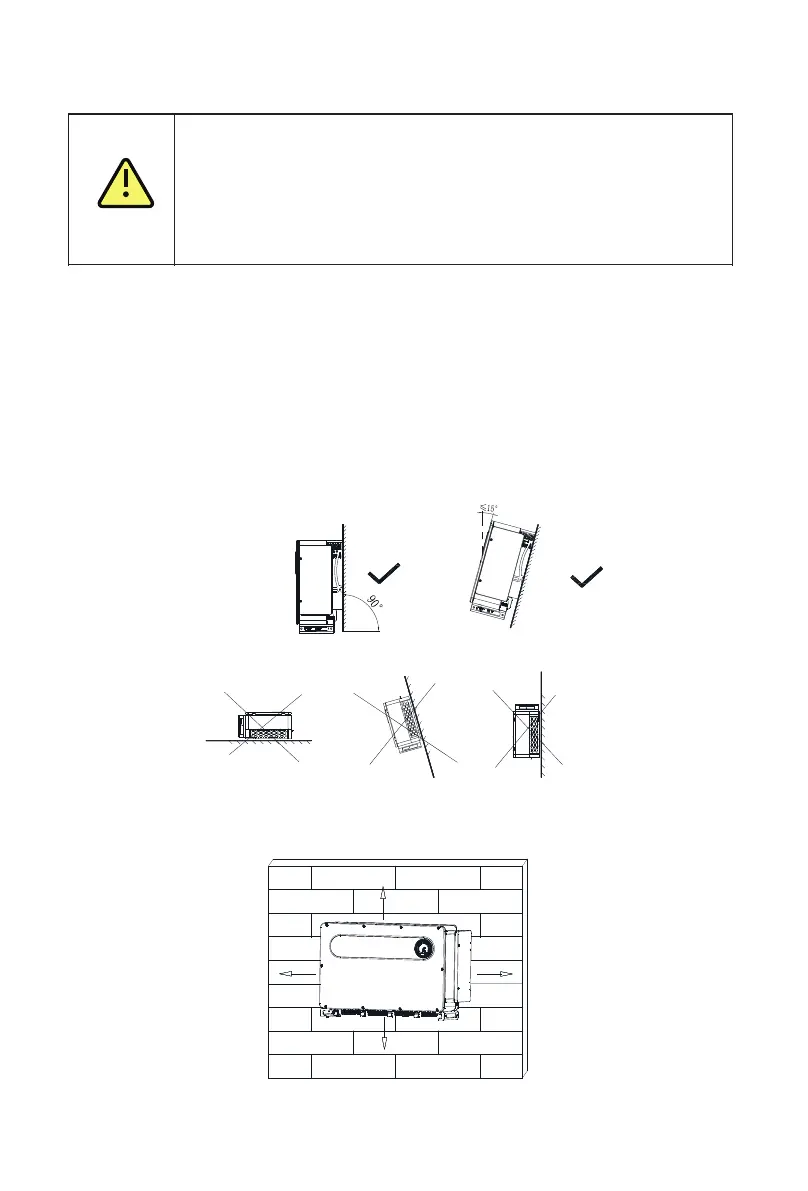

H. Inverter should be installed in a vertically or rear tilted surface, please refer to
following drawings.
Fig 5.1
I. To ensure the inverter can work smoothly and easy for personnel to operate, please
notice there is sufficient space for inverter, refer to following drawing.
J. Do not install inverter close to strong electromagnetic signal.
K. Install the inverter out of children's reach.
5.2 Installation Environment Requirements
A. Although the inverter's protection level is IP 66, to extent inverter lifespan you still
need to avoid rain and snow, please refer to following drawings.
Fig 5.3
B. To reduce the de-rate performance of the inverter and extend inverter's life span, we
strongly recommend you install an awning, for the distance between an awning and
inverter, please refer to following drawing.
Fig 5.4
11 12
CAUTION
Fig 5.2
≥800mm ≥800mm
≥600mm
≥600mm
≥
10
0
0
m
m
500mm
600mm
344mm
1700mm
