3 Product Introduction

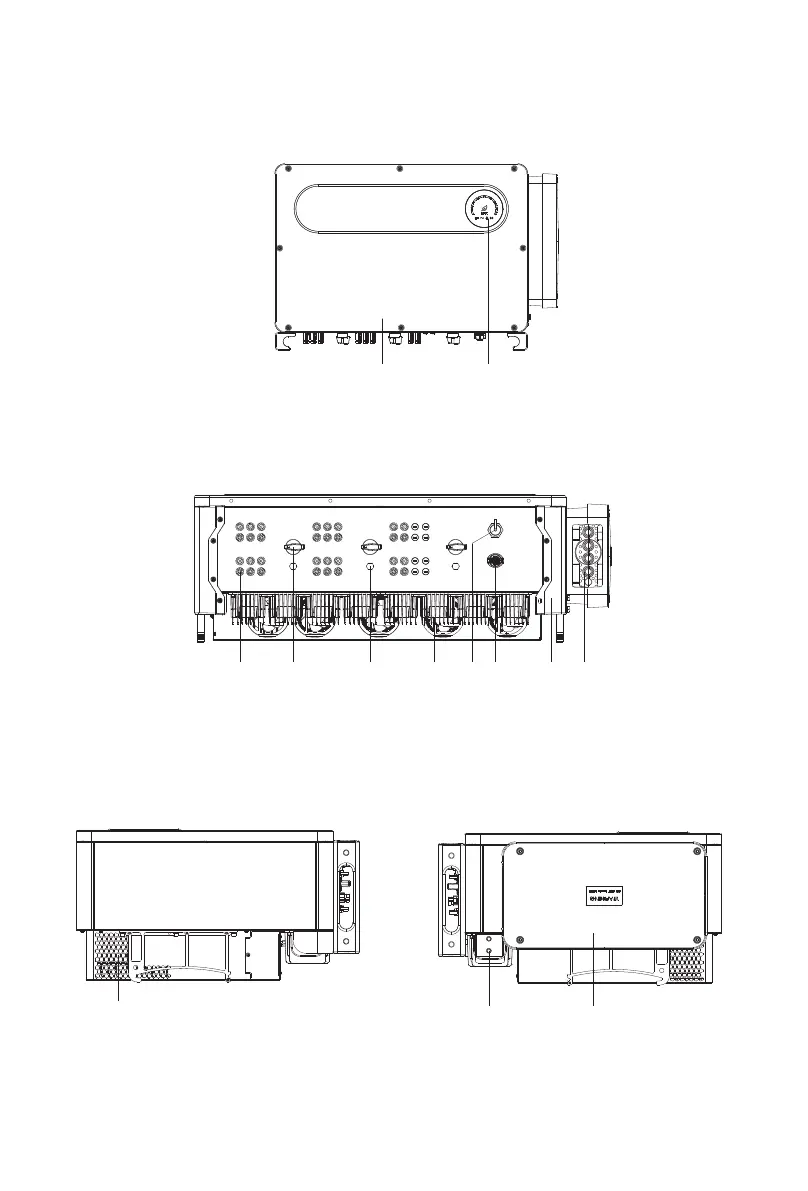

3.1 Appearance

Front view:

Bottom view(Termial):

Side view:

Fig 3.1

Fig 3.3

6

5

Fig 3.2

Mark

Description

Mark

Description

A

Front panel

H

COM interface

B

LED

I

Corner guard

C

PV terminal

J

Waterproof silicone pad

D

DC switch

K

Heat sink

E

Breathing valve

L

Ground screw hole

F

External fans

M

Junction Box

G

USB interface

3.2 Basic Data

Model

Size(mm)

Weight

(kg)

Width

Height

Thickness

MAX-X2 Series Inverter

970

640

345

84

MAX-X2 Series Inverter

with package

1095

765

500

98

3.3 Nameplate

Note: Other models of MAX-X2 series share the same label design with MAX

125KTL3-X2 LV, only with different model name and parameters, detail parameter

please refer to specification in Chapter 10.

Made in China

VDE0126-1-1

PV voltage range

PV Isc

Max. input current

Max. apparent power

Nominal output voltage

Power factor range

Safety level

Max. output power

Max. output current

Nominal output

frequency

Ingress protection

Model name

PV Grid Inverter

Max. PV voltage

Operation ambient

temperature

Class I

0.8leading~0.8lagging

-30°C - +60°C

50/60 Hz

3W/N/PE

230/400 a.c.V

1100 d.c.V

137.5 kVA

MAX 125KTL3-X2 LV

125 kW

208.9 a.c.A

180-1000 d.c.V

45 d.c.A 8

56.5 d.c.A 8

IP66

A B

C D E F G H I

J

K

L M
