Fig 8.43

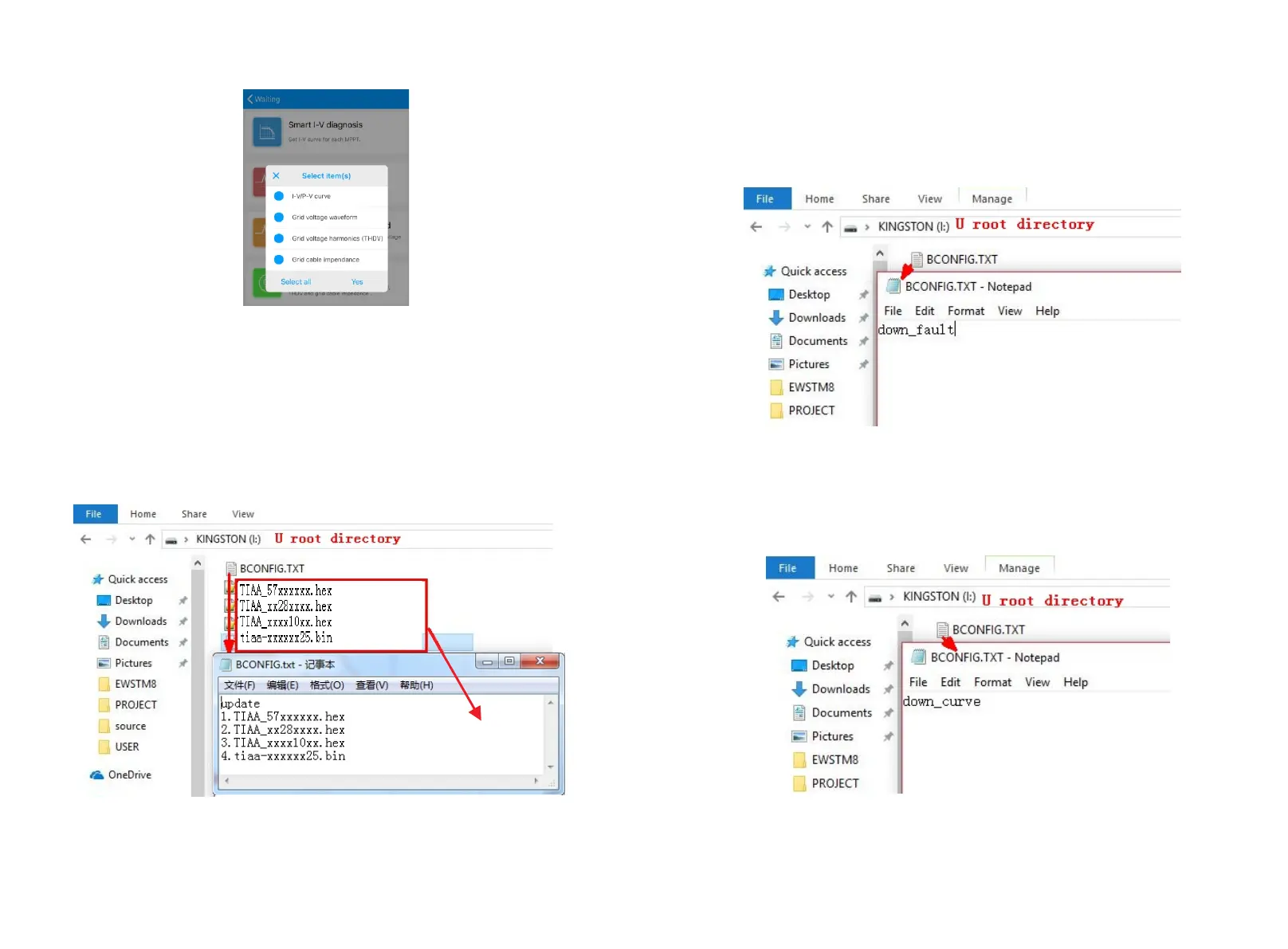

Refer to 6.3.2 USB to WIFI/ U disk communicate connection, the local monitoring of U

disk can realize the functions of software burning, fault recording, curve analysis and

realtime recording. Details are as follows:

1>Firmware Programming

Create the bconfig.txt file under the root of the U disk, write to the following content,

then insert the U disk to programming. Note the M3 program needs to be programming

at last time.

Fig 8.44

8.2.2 U Disk Monitoring

Fig 8.45

2>Fault Recording

Create the bconfig.txt file under the root of the U disk, write the following

content, then insert the U disk that can be read fault information, then

generates a form under the files in the root directory, A total of 60 fault

recording information is stored, the latest Numbers is 0.

3>Curve Analysis

Create the bconfig.txt file under the root of the U disk, write the following content, the

insert U disk to record I-V curve, then generates a form under the files in the root

directory.

Fig 8.46

Fi m e n am e
