Notice:The cable must be unbroken.

When using aluminum alloy cables, please use copper-aluminum transition

terminals.

AC side connection steps:

•If the cable is thick, after tightening the cable do not shake it and ensure

the cable is well-connected and then start the inverter. Loose connection

may cause overheat.

•The gaps in the cable threading holes must be blocked,otherwise there will

be a risk of water leakage.

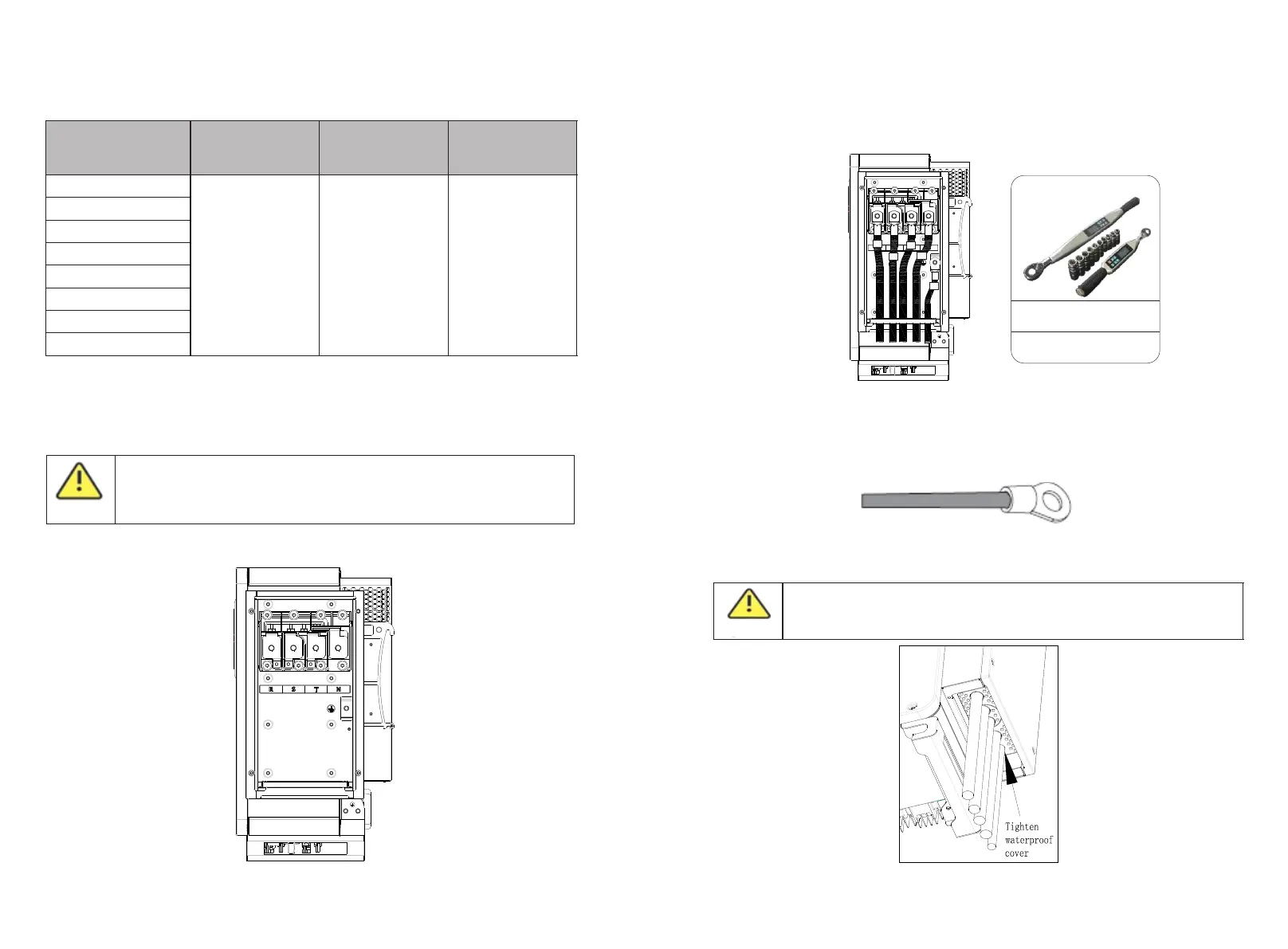

1>Following drawing shows inverter's AC terminal, R, S, T are three live lines, N is

Neutral line.

Fig 6.1

2>Determine the stripping length (approximately 30mm) according to the specifications

of the crimping terminal. Use crimping tools to crimp the wires and terminals, then

connect the cables to the corresponding channels through the waterproof interface, and

tighten the screws.

Fig 6.2

Diagram of how to install a terminal:

Fig 6.3

3>Apply fireproof mud to the threading holes on the waterproof silicone pad to prevent

the risk of water ingress, as shown in the figure below.

Cable specification:

WARNING

Inverter Model

Copper wire

crosssectional

area(mm²)

Copper wire

recommendation

(mm²)

Aluminum wire

recommendation

(mm²)

MAX 100KTL3-X LV

70-240

MAX 110KTL3-X LV

MAX 120KTL3-X LV

MAX 125KTL3-X LV

MAX 133KTL3-X LV

MAX 125KTL3-X MV

MAX 136KTL3-X MV

MAX 150KTL3-X MV

Fig 6.4

M12(L1/L2/L3/N):20-30N·m

M8(PE):6-8N·m

NOTE: Use a torque wrench to tighten the screws/nuts with reference to the torque

ranges provided above.
