Mark

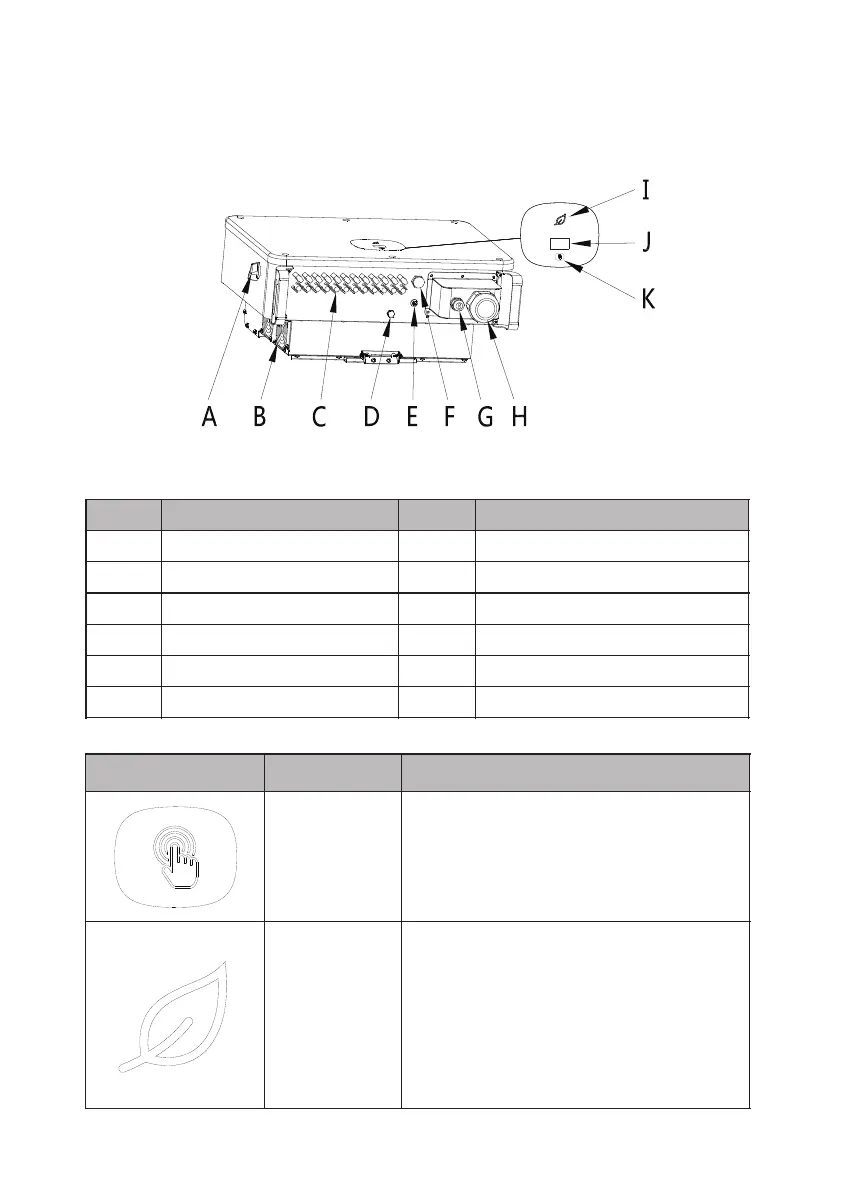

Description
Mark
Description
A
DC switch
G
485 Waterproof connector
B
Fan
H
AC Waterproof connector
C
PV input terminal
I
LED Indicator light
D
Breathable valve
J
OLED Screen
E
Safety ground terminal
K
Touch button
F
USB interface
3.2 Dimensions
Model
Size (unit: mm)
Weight
(unit: kg)
Width
High
Deep
MAC series PV inverter
680
508
281
52
MAC series PV Inverter with packaging
730
650
350
60
Figure 3.1
6
5
Identification
Description
Explanation
Touch mark
Touch button to switch OLED display and set
parameters by touch
Inverter status
identification
Indicates the current operating status of the
inverter:
1. Flashing green (0.5s on and 2s off):
Standby
2. Steady green: Normal operation
3. Steady red: Fault
4. Flashing green（0.5S on 0.5S off 0.5S on
2S off）: Alarm
5. Flashing yellow: Program update
3 Product Introduction
3.1 Appearance
Front view:
3.3 Nameplate
Note: The MAC series inverter nameplate is similar to the nameplate shown above, but
the product model and specific parameters are different. See Chapter 10 Product
Specifications for specific parameters.
Made in China
PV voltage range
PV Isc
Max. input current
Max. apparent power
Nominal output voltage
Power factor range
Safety level
Max. output power
Max output current
Nominal output
Frequency
Ingress Protection
Model name
PV Grid Inverter
Max. PV voltage
Operation Ambient
Temperature
Class I
IP65
0.8leading~0.8lagging
-25°C - +60°C
50/60 Hz
55 d.c.A 3
52 d.c.A 3
3W/N/PE
230/400 a.c.V
1100 d.c.V
66600 VA
MAC 60KTL3-X LV
60000 W
96.6 a.c.A
200-1000 d.c.V
