J.To ensure the inverter can work smoothly and easy for personnel to operate, please
notice there is sufficient space for inverter, refer to following drawing：
≥
3
0
0
≥500
≥500
≥500
≥500
Unit: mm
Figure 5.2
K. Do not install inverter close to strong electromagnetic signal.
L. Install the inverter out of children's reach.
5.2 Installation Environment Requirements

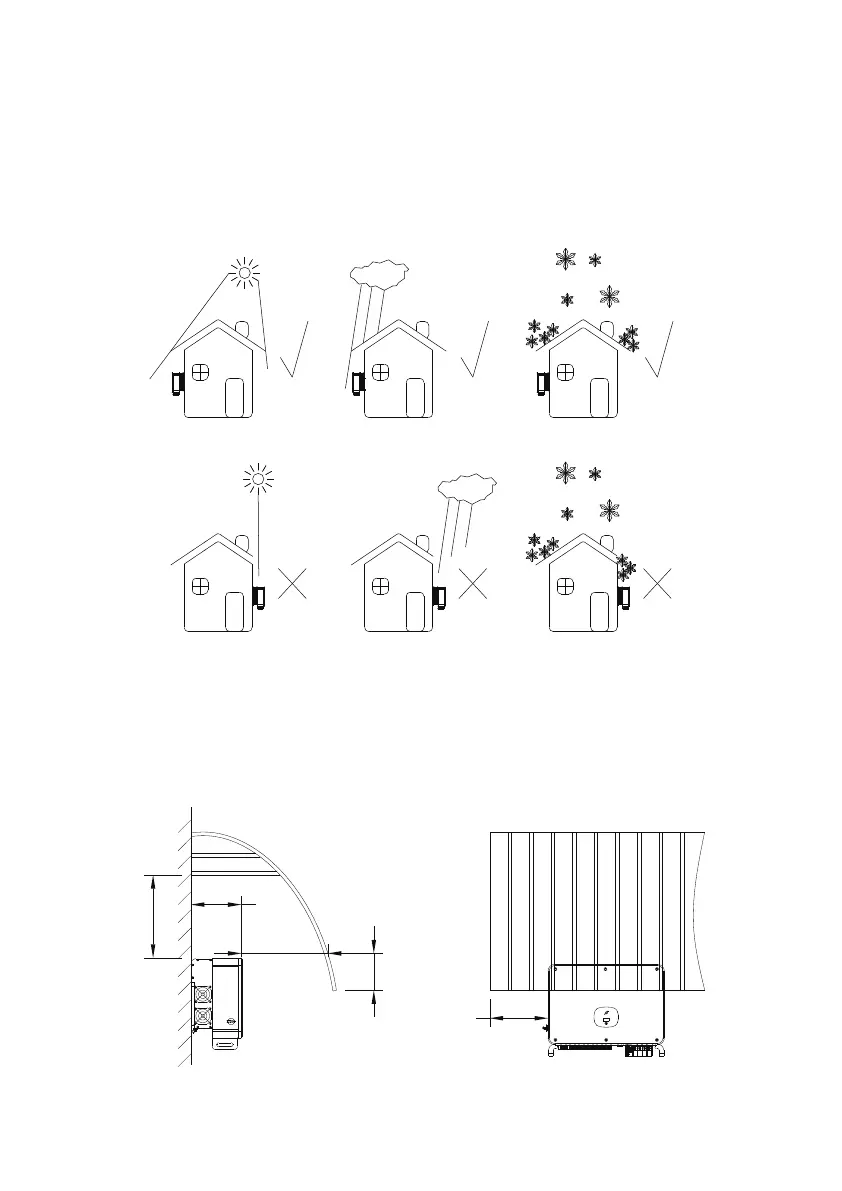

A.Although the inverter's protection level is IP 65, to extent inverter lifespan you still
need to avoid rain and snow, please refer to following drawings.
Figure 5.3
B.To reduce the de-rate performance of the inverter and extend inverter's life span, we
strongly recommend you install an awning, for the distance between an awning and
inverter, please refer to following drawing.
Figure 5.4
Min 500
Min 500
Min 500
Min 2400
Min 500
Min 500
Min 2400
Min 500
Min 500
Min 500
Min 500
Min 500
Min 500
Min 500 Min 2400 Min 2400
Min 2400
Min 500
Min 500
Min 500
Min 50
Min 50
Min 50
Min 500
Min 500
0
0
0
500
281
500
200
500
Unit: mm
11
12
Roof
Ground
Roof
Ground
