Checking before installation
1>Before unpacking the inverter, check the outer packing materials for damage.
2>After unpacking the inverter, check that the contents are intact and complete. If any
damage is found or any component is missing, contact your supplier.
The MAC series inverter accessories are as follows:
No.
Description
Qty.
No.
Description
Qty.
A
PV inverter
1
L
PV+/PV- metal
terminal
a
8/8
B
AC Protective cover
1
b
9/9
C
Wall mount
1
c
10/10
D
User manual
1
d
12/12
E
Data collector / manual
(optional)
1/1
M
PV Removal tool
1
F
Self-tapping screw
5
N
RNBS14-6
1
G
Plastic expansion tube
5
O
SC50-10
5
H
Safety screw
1
*
Warranty card
1
I
485 terminal (3PIN)
1
*
Copy of the business
license
1
J
485 terminal (6PIN)
1
*
Certificate
1/1
K
PV+/PV- terminal
a
8/8
Note:
1.a:MAC 30KTL3-X;b:MAC 40KTL3-
X;c:MAC 50KTL3-X;d:others;
2.The MAC series comes standard
with 50-10 copper crimp
terminals. If you have copper and
aluminum terminals, please
contact the supplier.
b
9/9
c
10/10
d
12/12
Figure 4.1
Ÿ To prevent device damage and personal injury, keep balance when
moving the inverter because it is heavy.
Ÿ Do not place the inverter with its wiring and signal terminals at the
bottom contacting with floor or any other object because the
terminals are not designed to support the weight of inverter.
Ÿ When placing inverter on the floor, put foam or paper under the
inverter to protect its cover.
5.1 Basic Installation Requirements
A.Ensure that the installation wall is solid enough to bear the inverter.(Inverter weigh
please refer to installation manual Figure 5.1 )
B.There must be enough installation space to fit the size of inverter.
C.Do not install inverter on flammable or heat-intolerant buildings.
D.This inverter is IP 65 protection, you can install it indoor or outdoor.
E. Install the inverter in the eye for easy viewing of the OLED display and maintenance
work.
F.To avoid inverter performance de-rate due to the over heat, please do not expose the
inverter under direct sunlight.
G.The installation humidity should be from 0-95%.
H.The surrounding temperature of inverter should be from -25℃ ~ +60℃.

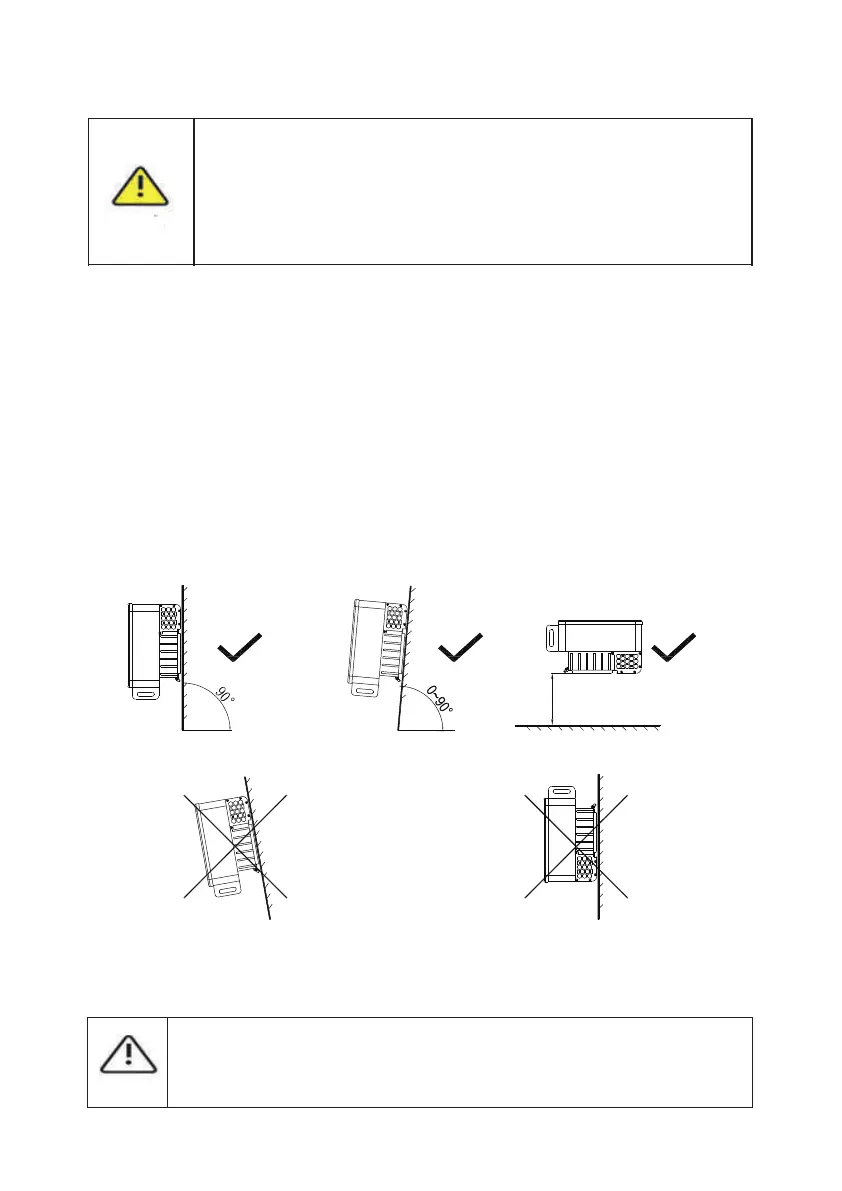

I.Inverter should be installed in a vertically or rear tilted surface, please refer to following
drawings.
Figure 5.1
10
9
When the equipment is placed horizontally, the height from the ground
must be more than 1 meter.
A B
C
D E
JI
H
G
F
K L M N
O
WARNING
4 Unpacking
Installation 5
NOTICE
keep it ≥ 1m
above the
ground
