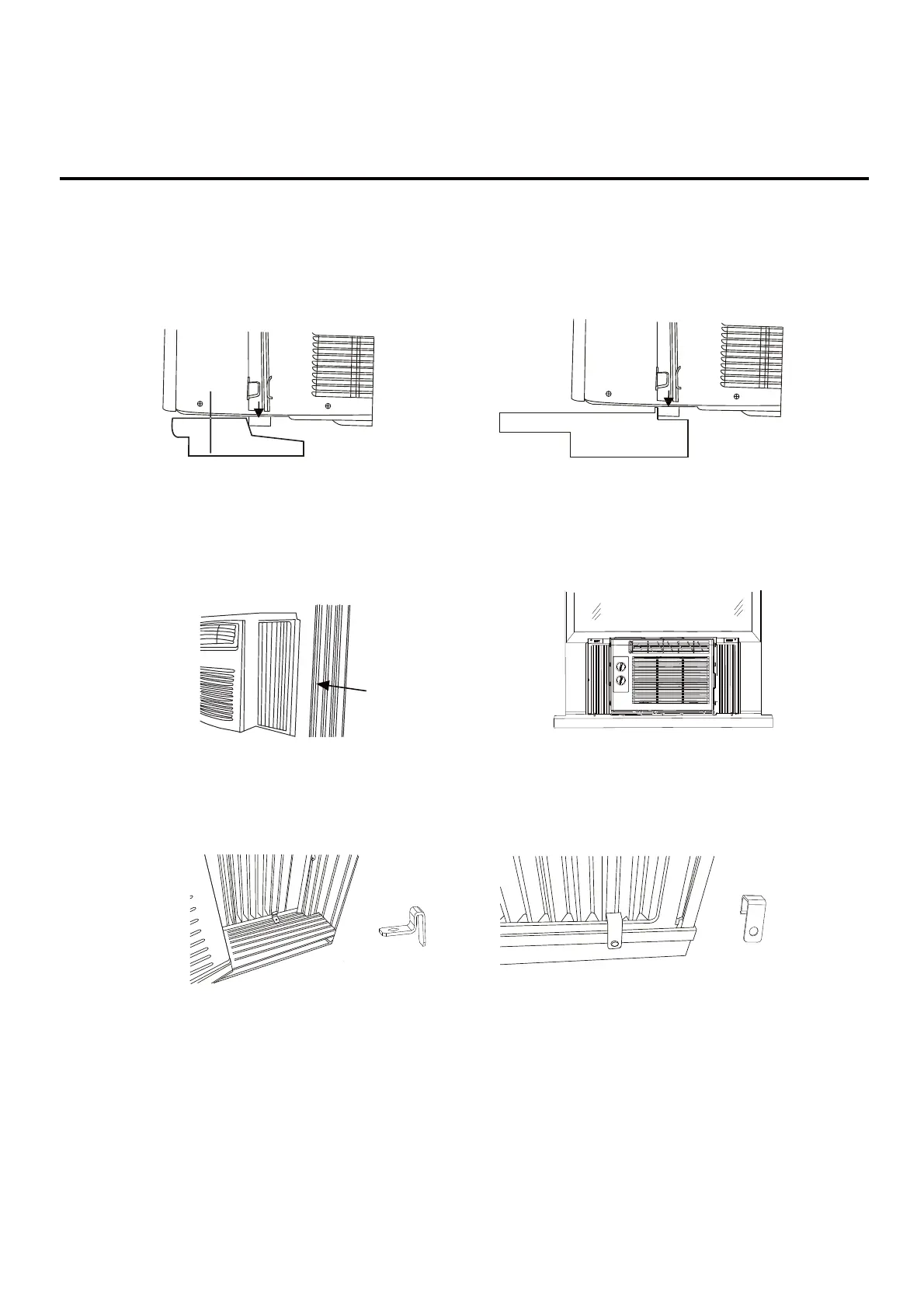

Installation Procedure
Step 5:
Extend the side panels out against the window frame (FIG. 8A for wooden
windows), (FIG. 8B for Vinyl-Clad windows).
FIG. 8A
window
frame
FIG. 9A FIG. 9B
Vinyl-Clad windows:wooden windows:
Step 6:
Place the frame lock between the frame extensions and the window sill as shown
(FIG. 9A for wooden windows), (FIG. 9B for Vinyl-Clad windows).
Step 7: Drive locking screws
A: For wooden windows:
Drive locking screws through the frame lock and into the sill (FIG. 10A).
NOTE:
To prevent window sill from splitting, drill 1/8” (3mm) pilot holes before driving
screws. Drive locking screws through frame holes into window sash (FIG.10B)
B: For Vinyl-Clad windows:
Drive locking screws through the frame lock and into the window sash (FIG.10B).
FIG. 8B
11
Keep a firm grip on the air conditioner, carefully place the unit into the window
opening so the bottom of the air conditioner frame is against the window sill
(FIG. 7 A & FIG. 7B). Carefully close the window behind the top rail of the unit.
INSIDE OUTSIDE
FIG. 7B
Wooden Windows Vinyl-Clad Windows
INSIDE
OUTSIDE
FIG. 7A
Step 4:
