12

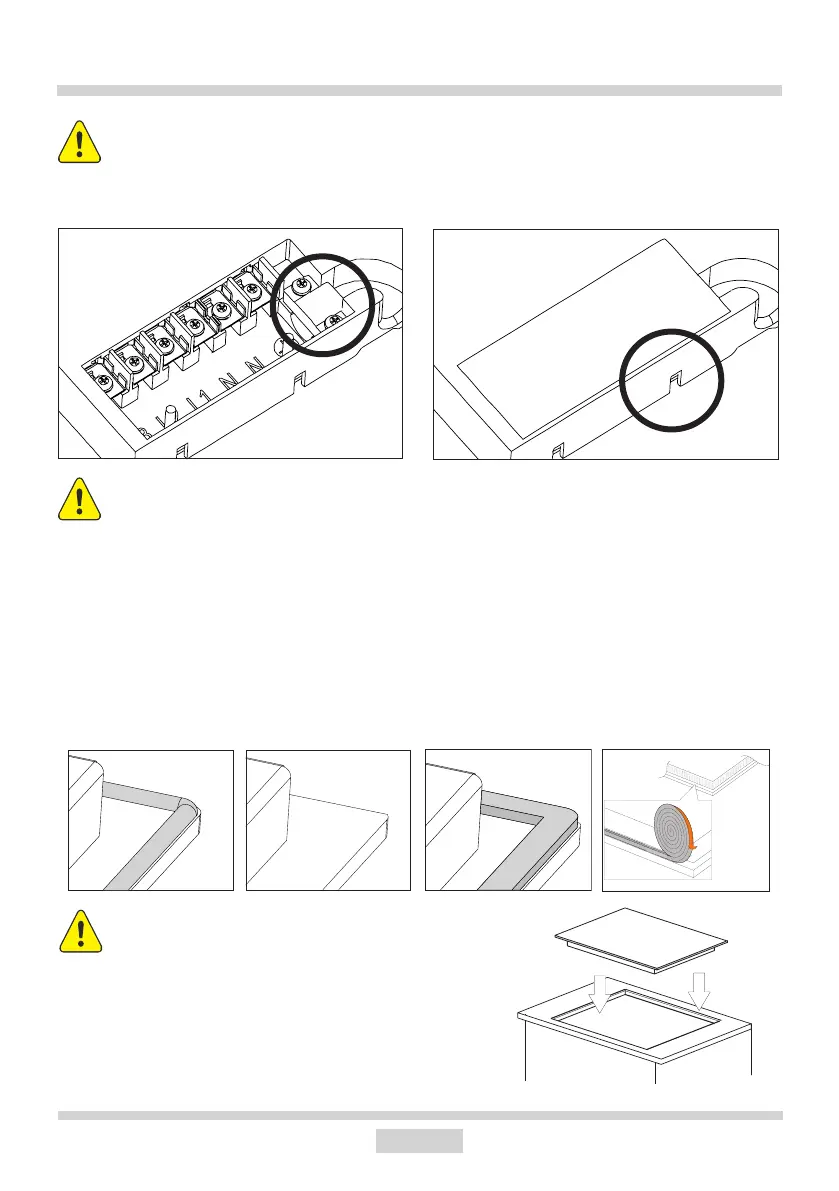

INSTALLATION
Inside the packaging you will nd accessories necessary to connect the appliance to home electri-
cal system. Use the enclosed accessories to ensure the proper operation of the appliance. The
accessories include: Strain relief, bridge connection, 2 screws and connection terminal cover.
Install the strain relief using the provided screws.
Install the terminal cover by inserting it until it
snaps in place with a click.
In order to remove the cover, use a screw-
driver to pry the fastening tabs until the
cover pops o.
Assembly of the gasket
*Depending on the model, the seal is already installed at the factory (g.1)
If the seal has not been tted at the factory, proceed as follows:
Before installing the hob in the cut-out worktop, the gasket is to be attached to the back
of the hob (pic. 2)
To do this, rst peel o the protective lm from the self-adhesive seal and glue the gasket
as close as possible to the outer edge of the hob (g. 3,4).
1 32
USZCZELKA
KLEJ
4
Do not install the appliance without the
foam gasket.
Then turn the hob over insert it into the cut-out of the
furniture. Align the positioning symmetrically so that the
distances between the hob and the countertop is the
same on all sides. (g. 5)
5
