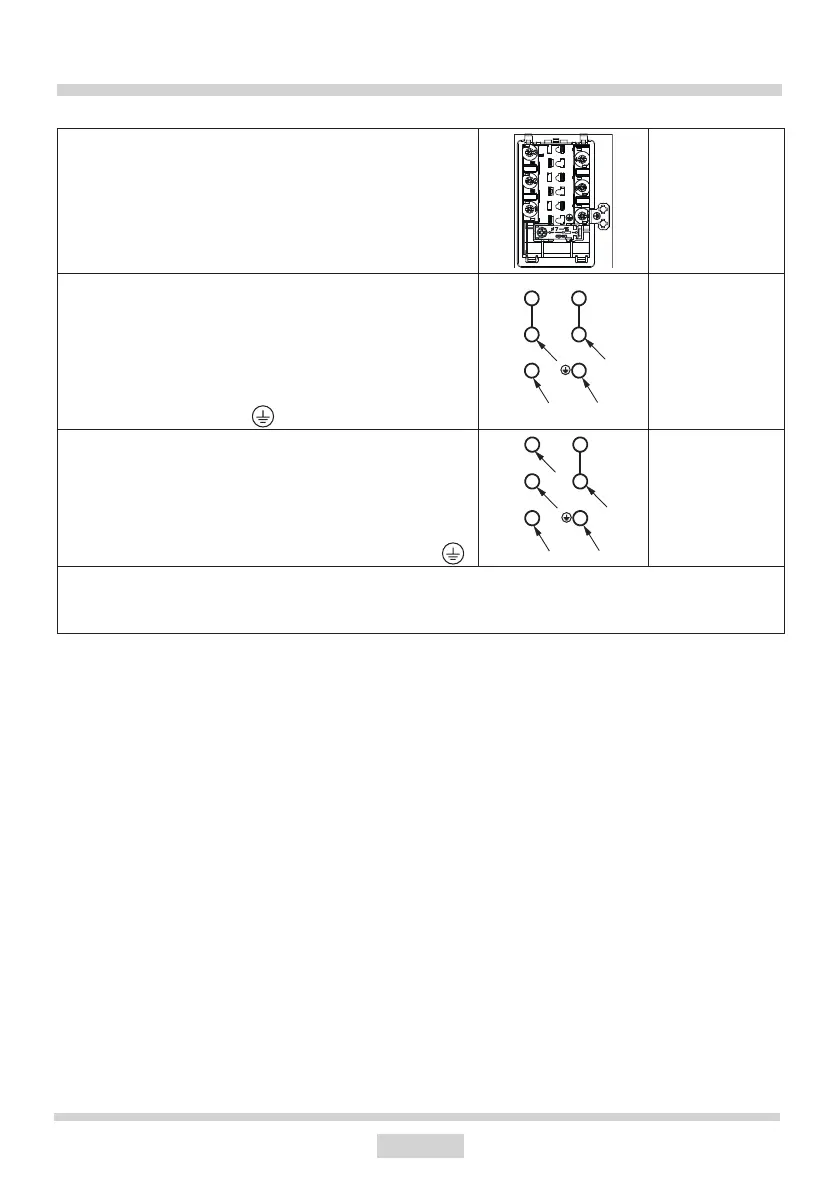

INSTALLATION
Important: To ensure compliance with the applicable
safety requirements, a switch must be tted which
isolates all terminals and has a contact distance of
at least 3 mm. (Can be a master switch).
Type of power
supply cable
For 400V 2N~50Hz two-phase connection with a
neutral conductor, terminals 2-3 are bridged and ter-
minals 4-5 are bridged, individual phase conductors
are connected to terminals 1 and 2-3 respectively,
neutral conductor is connected to bridged terminals
4-5, and the protective earth conductor is connected
to the earthing terminal
.
1
2
3
5
4
L1
L2
PE
N
H05VV-F4G4
4x 4 mm
2
For 400V 3N~50Hz three-phase connection with a
neutral conductor, terminals 4-5 are bridged, indi-
vidual phase conductors are connected to terminals
1, 2, and 3 respectively, neutral conductor is connect-
ed to bridged terminals 4-5, and the protective earth
conductor is connected to the earthing terminal .
1
2
3
5
4
L1
L2
PE
N
L3
H05VV-F5G1,5
5x 1,5 mm
2
L1, L2, L3 - Live wires; N - Neutral wire; PE - Earth wire
The arrows in the above diagrams indicate where you need to connect the individual
cable wires.
