16
EN

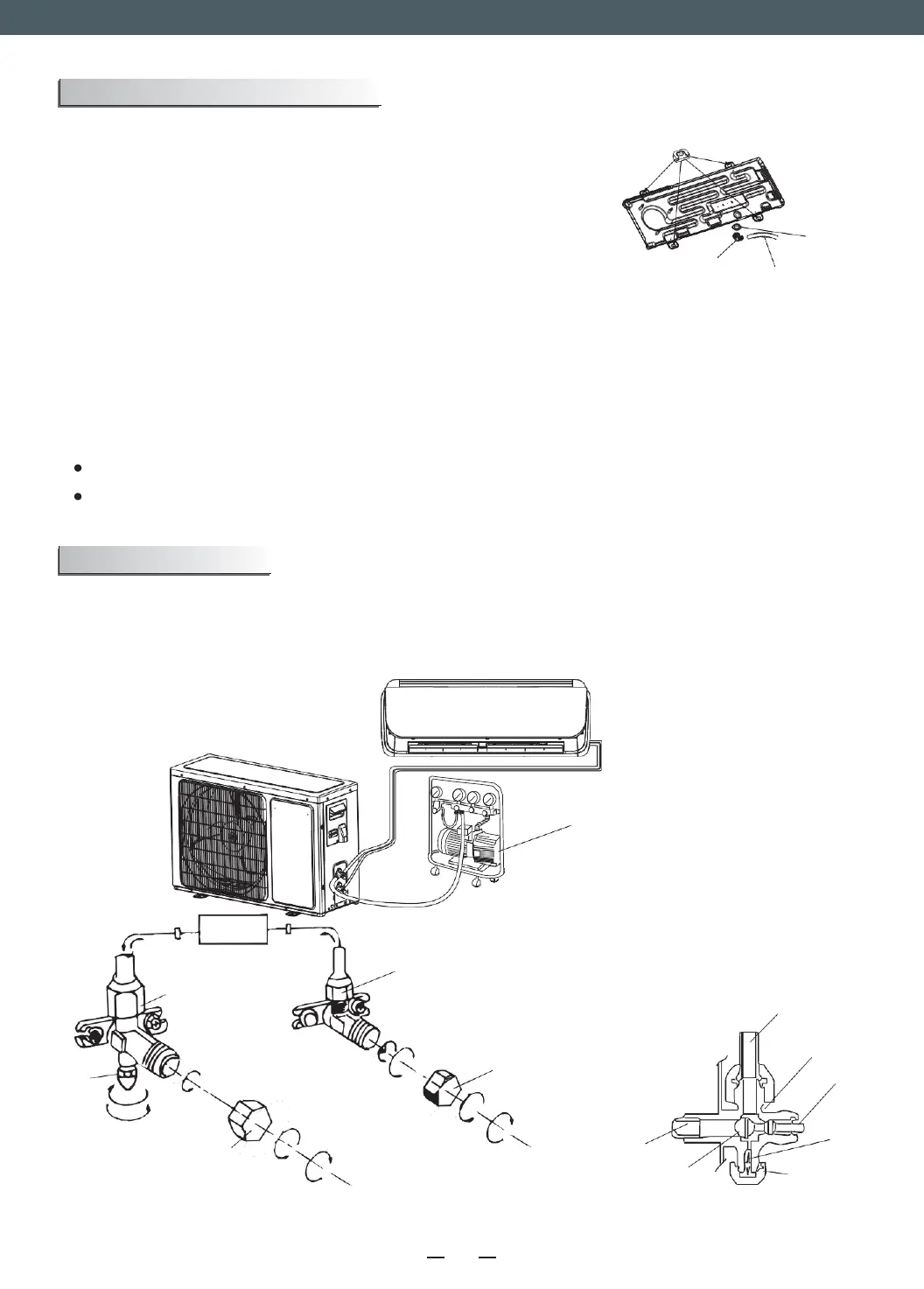

1.
Install Drain Port and Drain Hose (for heat-pump model only)
The condensate drains from the outdoor unit when the unit operates
in heating mode. In order not to disturb your neighbor and protect
the environment, install a drain port and a drain hose to direct the
condensate water. Just install the drain port and rubber washer to
the chassis of the outdoor unit, then connect a drain hose to the
port as the right figure demonstrates.
2.
Install and Fix Outdoor Unit
Fix with bolts and nuts tightly on a flat and strong floor.
Rubber pad (optional)
Place under the leg pedestal
Drain port
Washer
Drain hose
(prepared by user)
If installed on the wall or roof, make sure to fix the supporter well to prevent it
from shaking due to serious vibration or strong wind.
3.
Outdoor Unit Piping Connection
Remove the valve caps from the 2-way and 3-way valve.
Connect the pipes to the 2-way and 3-way valves separately according to the required torque.
4.
Outdoor Unit Cable Connection (see previous page)
The air which contains moisture remaining in the refrigeration cycle may cause a malfunction on the
compressor. After connecting the indoor and outdoor units, release air and moisture from the refrigerant
cycle using a vacuum pump, as shown below.
Note: To protect the environment, be sure not to discharge the refrigerant to the air directly.
See next page for air purging steps.
Vacuum pump
indoor unit
Refrigerant flow direction
2-way valve
3-way valve
3-way valve diagram
connect to indoor unit
Service
port
(2) Turn
(7) Turn to fully open the
valve
(1) Turn
(6) Open 1/4 turn
(7) Turn to fully open the valve
valve cap
(1) Turn
(8) Tighten
open position
spindle
needle
(8) Tighten Valve cap
(8) Tighten
Connect to outdoor unit
Valve core
service port cap
Outdoor unit installation
Air purging
