17

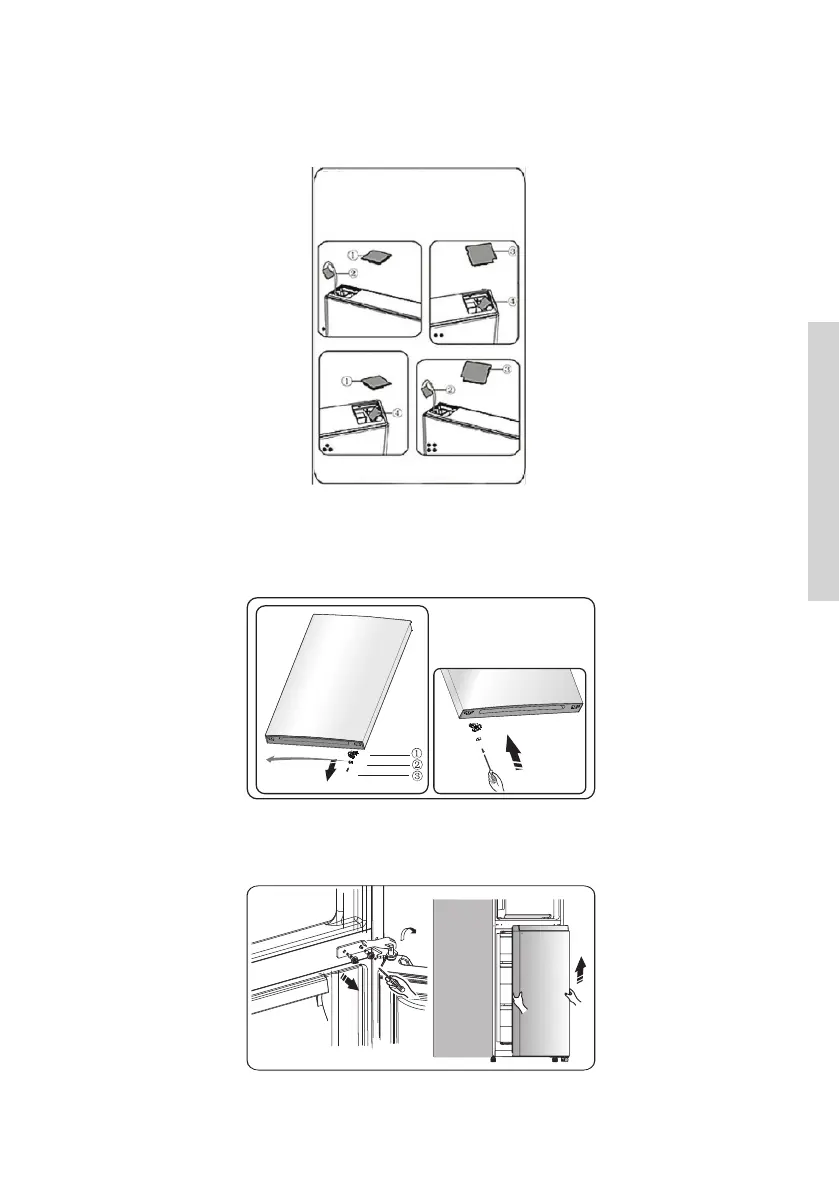

6. Remove part 1 from the top left side of upper cover and take out part 2.
Then remove part 3 from the top right side of upper cover. Refer to above
operation, install part 3 and part 4 onto the top left side of upper cover. Install
part 1 of the top right side of upper cover.
1 Corner cover (left)
2 Electrical connector (left)
3 Corner cover (right)
4 Electrical connector (right)
7. Loose screw 3 and take down part 2 and part 1, Install replacement door
stopper-left 4 provided (in the plastic bag) and part 2 (stop block) to the left
side with screw 3. Keep part 1 with the appliance for future reference.
1 Door stopper
2 Stop block
3 Self-tapping screw
8. Loose screws used to fix the middle hinge and remove middle hinge. Then
remove the lower door.
