19
B) The height of the cooker is 900 mm. Depending on the model, you can adjust the height of the appliance from 850
to 920 mm or from 900 to 920 mm.

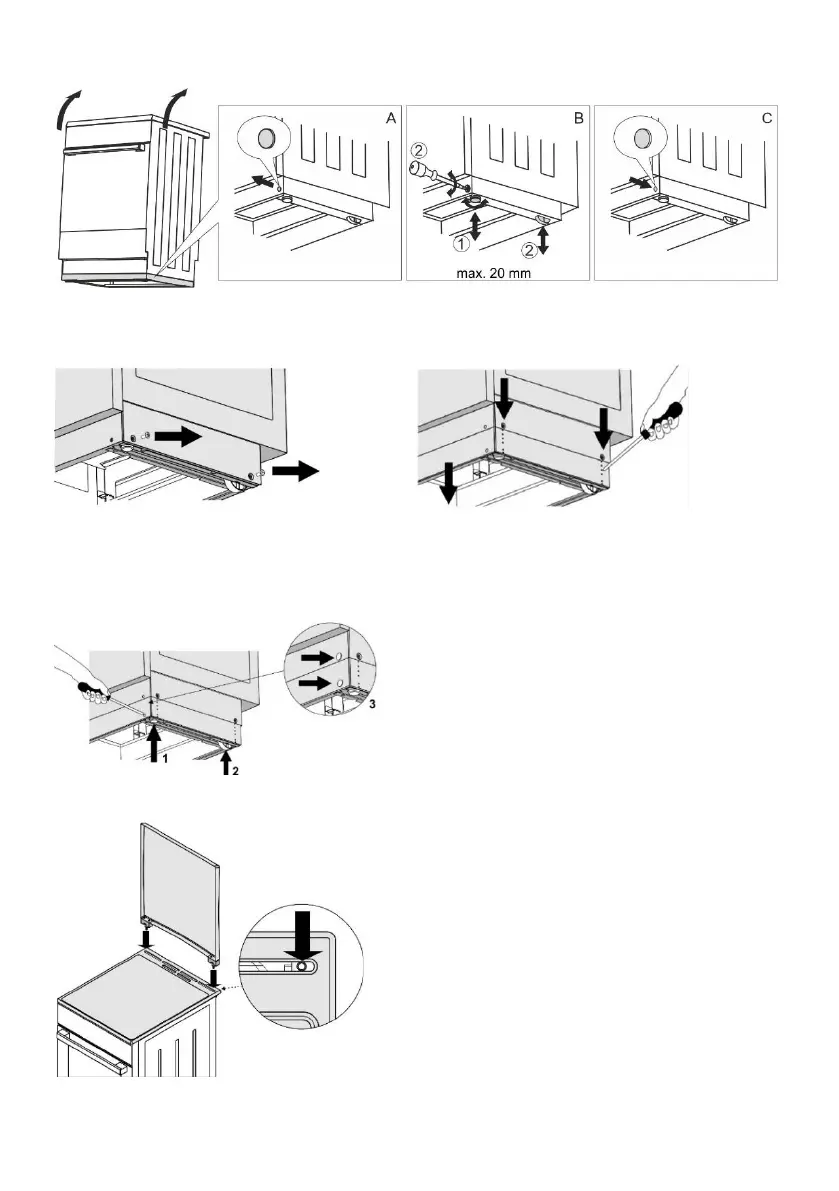

ADJUSTING THE HEIGHT OF THE COOKER (depending on the model)
The height of the cooker is 900 mm. You can adjust the height of the appliance from 850 to 940 mm.
Torx T20
• Put the cooker on the floor with back side.
• Unscrew the screws, see arrows.
• Set the desired height.
• Screw the screws back together
The cooker must be installed horizontally!
Follow these steps:
• Rotate the height adjustment screws (see figure 1) to adjust
the height of the cooker to the correct position.
• Adjust the wheels (see figure 2) by screwing them with two
screws at the front of the skirting board. Check the horizontal
position of the stove using a spirit level.
• Place the blind plugs into the holes in the front of the skirting
board (see Figure 3).
INSTALLATION OF THE LID (depending on the model)
