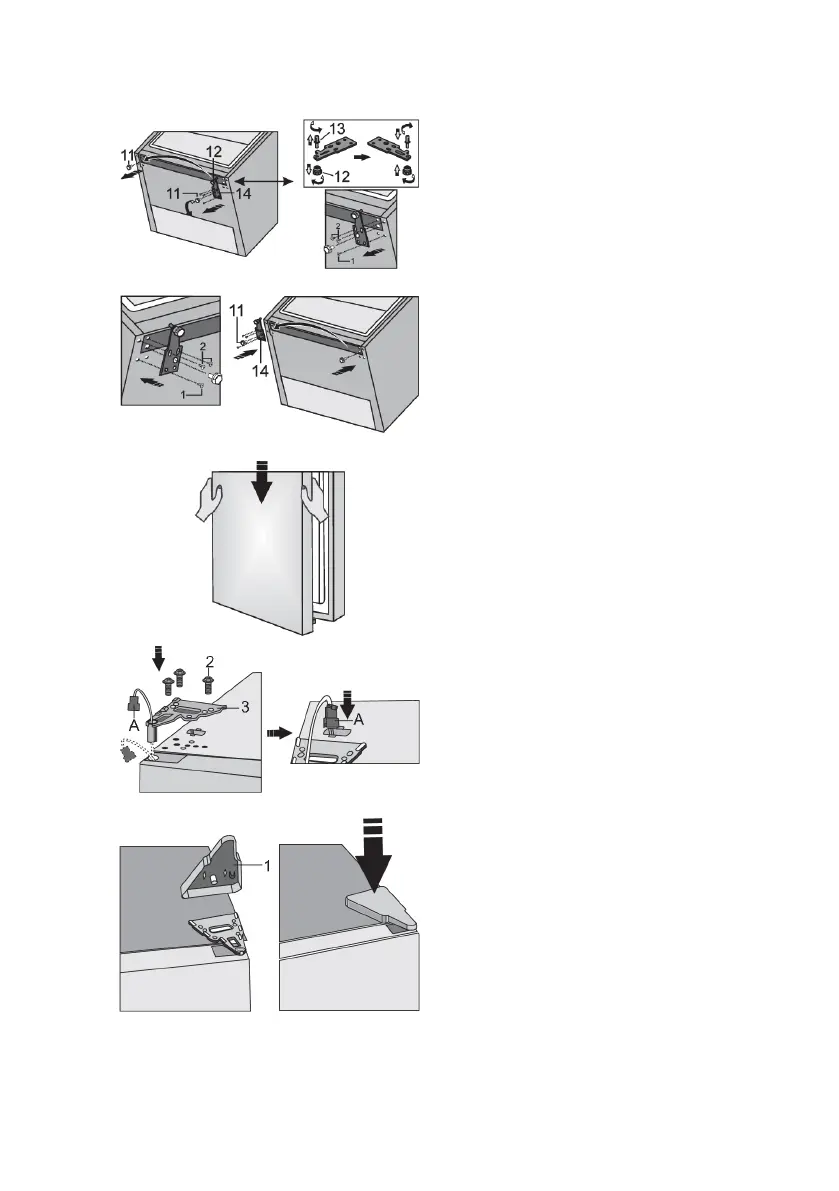

7. Tilt the appliance backwards and remove the adjustable foot (11).
8. Undo the three screws on the bottom hinge
(14) and remove it. Remove the extra foot
(12) from the bottom hinge pin (13).
Unscrew the pin (13) from the bottom hinge
and screw it onto the opposite side of the
hinge, complete with the extra foot (12).
9. Attach the hinge (14) onto the opposite side
using the screws. The screws should be
attached in the order shown in the figure
below. First, tighten the screw 1, followed
by screws 2. Then, screw on the adjustable
feet (11).
10. Correctly position the top door, run the
connector (A) through the hole in the top
hinge (3) and use the screws (2) to attach
it. Hold the door in place while positioning
it. Connect the connector (A).
11. Replace the upper hinge cap (1).
12. Open the door and replace the door racks/shelves. Close the door again.
