9
03 Product Introduction
User Manual V1.2-2024-12-01

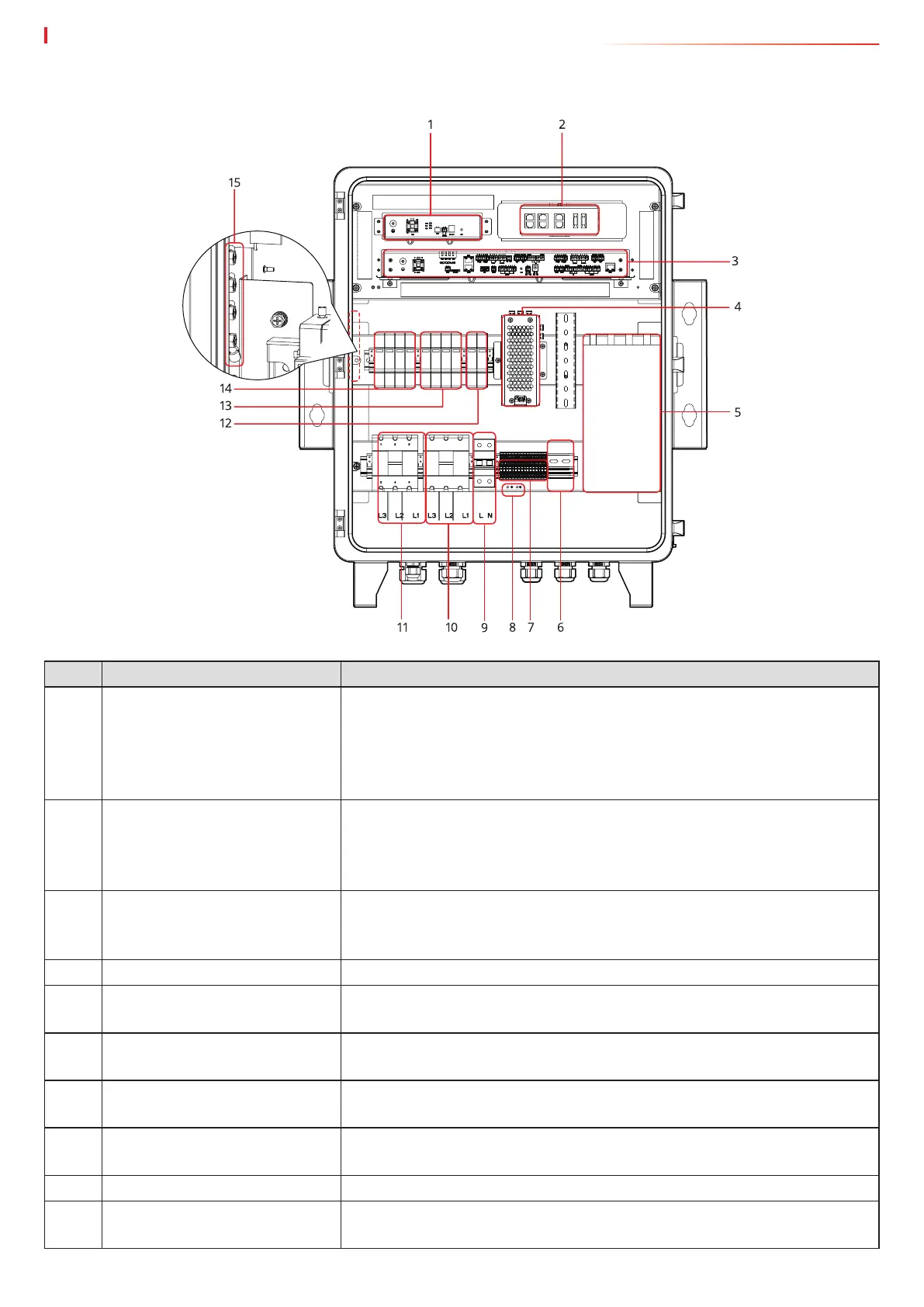

3.6 Internal Composition
No. Item Explanation
1 (Optional) PLC CCO module
(Optional) PLC CCO module is used in dual split-box transformer
scenarios. Used to report and deliver
Optional integrated module. SCU3000A: HPLC_CCO module. SCU3000:
PLC_CCO module.
There is no PLC_CCO module for SCU3000A-S and SCU3000-S.
2 Switch
The switch is a 2-ber 6-electrical industrial ring network switch. It is
internally connected to EzLogger via electrical ports and externally
connected to the router, switch, or computer via Ethernet cables or
optical bers.
3 EzLogger
Smart data logger.
SCU3000 and SCU3000-S: integrated with Ezlogger3000U. SCU3000A
and SCU3000A-S: integrated with Ezlogger3000U-A.
4 Power adapter An AC to DC power module that provides 24V, 3.2A DC power to SCU.
5
Fiber optic splice closure
(FOSC)
Used to connect to the switch via the optical ports internally, and to lead
out the ber externally.
6 Reserved installation place
Prepare other devices if needed. Rail specication: 35mm in height and
45mm in width.
7
RS485 communication
terminal
Connects to the RS485 communication terminal.
8
Grounding point for RS485
communication
Grounding point for the shielding layer of the RS485 communication
cable.
9 Single-phase input switch Single-phase AC circuit breaker, with a specication of 1P, 400V, 25A.
10 Three-phase input switch
Three-phase AC circuit breaker, with a specication of 3P, 1000V, 32A,
which connects with PLC1 cable.
