BMT-P2/144A(550W)P35
STANDARD INSTALLATION MANUAL FOR POLARIS 580W (HOOP INSTALLATION)

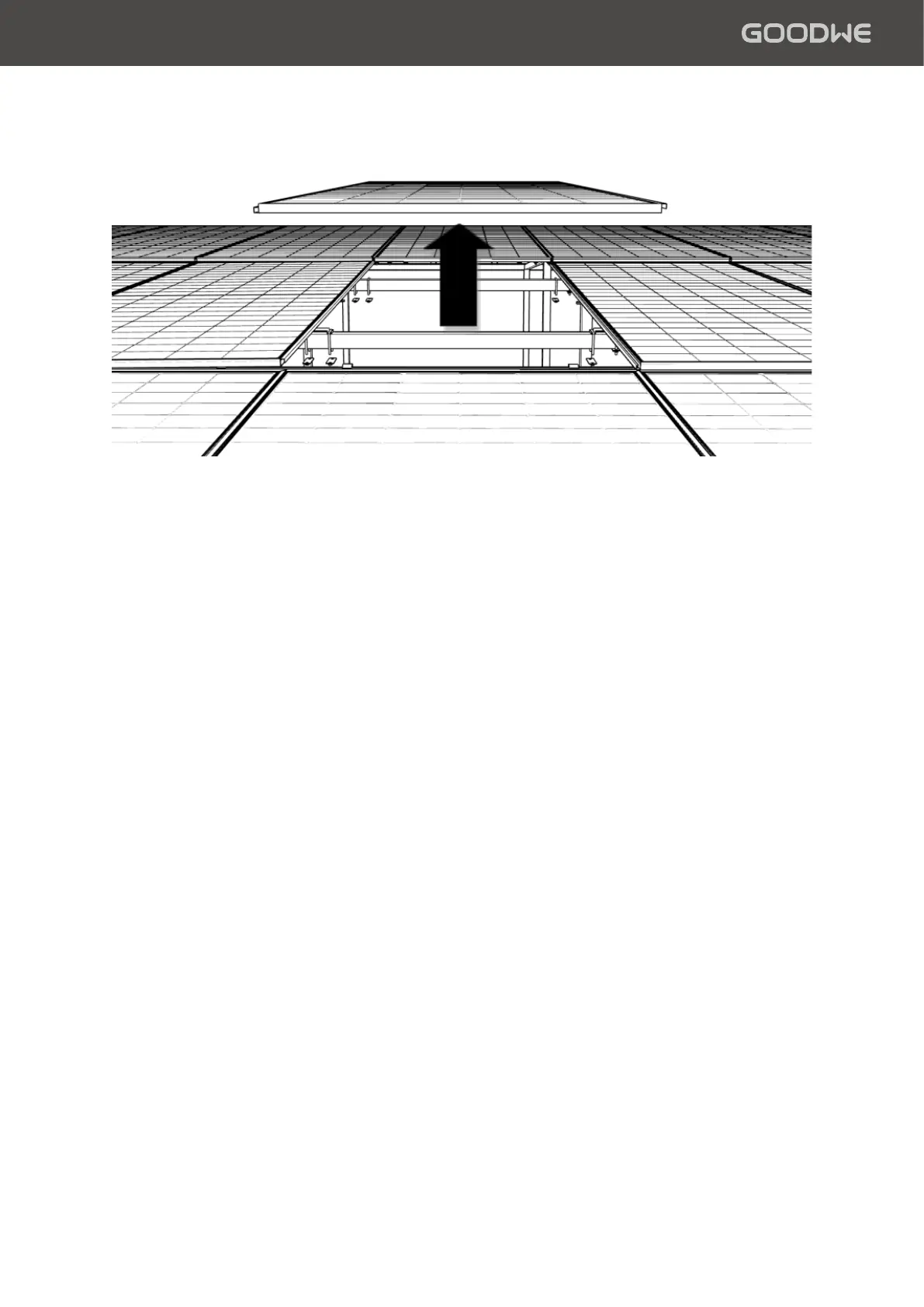

● Lift up the target product and remove the whole product. (Figure 38)
FIGURE 38
9.2 PRODUCT REPLACEMENT AND INSTALLATION
● Loosen the product fasteners above the replaced product to make the lower frame lifted
slightly.
● Inse the left frame of the new product under the right frame of the product on the left side,
so that the frames t tightly together.
● Push the upper frame of the new product from bottom to top into the positioning hook of
the product above the original target product, ensuring that the left and right gaps between
the two products meet the requirements and the upper and lower pas of the two products
are properly overlapped.
● Adjust the position of the waterproof strip of the replaced product and x it in place.
● Use installation clamps to re-x the long borders of the replaced product, the product on
the left side, and the product above it.
● Connect the leads of the replaced product with those of the other products securely, and
check if the circuit is properly connected.
● The replacement installation is completed.
