BMT-P2/144A(550W)P14
STANDARD INSTALLATION MANUAL FOR POLARIS 580W (HOOP INSTALLATION)
● Adjust the product to keep its length direction parallel to the main keel. The distance from
the lower frame of the product to the center of the rst row of purlins is 564mm, and the
distance from the upper frame to the center of the second row of purlins is also 564mm. （Figure
10）
● Once the product position is determined, sta installing the left-side upper fastener
assemblies above the product (as shown in Figure 11). Place the upper fastener assemblies into
the groove that contacts the second row of purlins and the product, and place the square plate
at the opening of the hoop. Tighten the nut to x the assembly onto the purlin. Similarly, install
the right-side upper fastener assemblies (as shown in Figure 12).

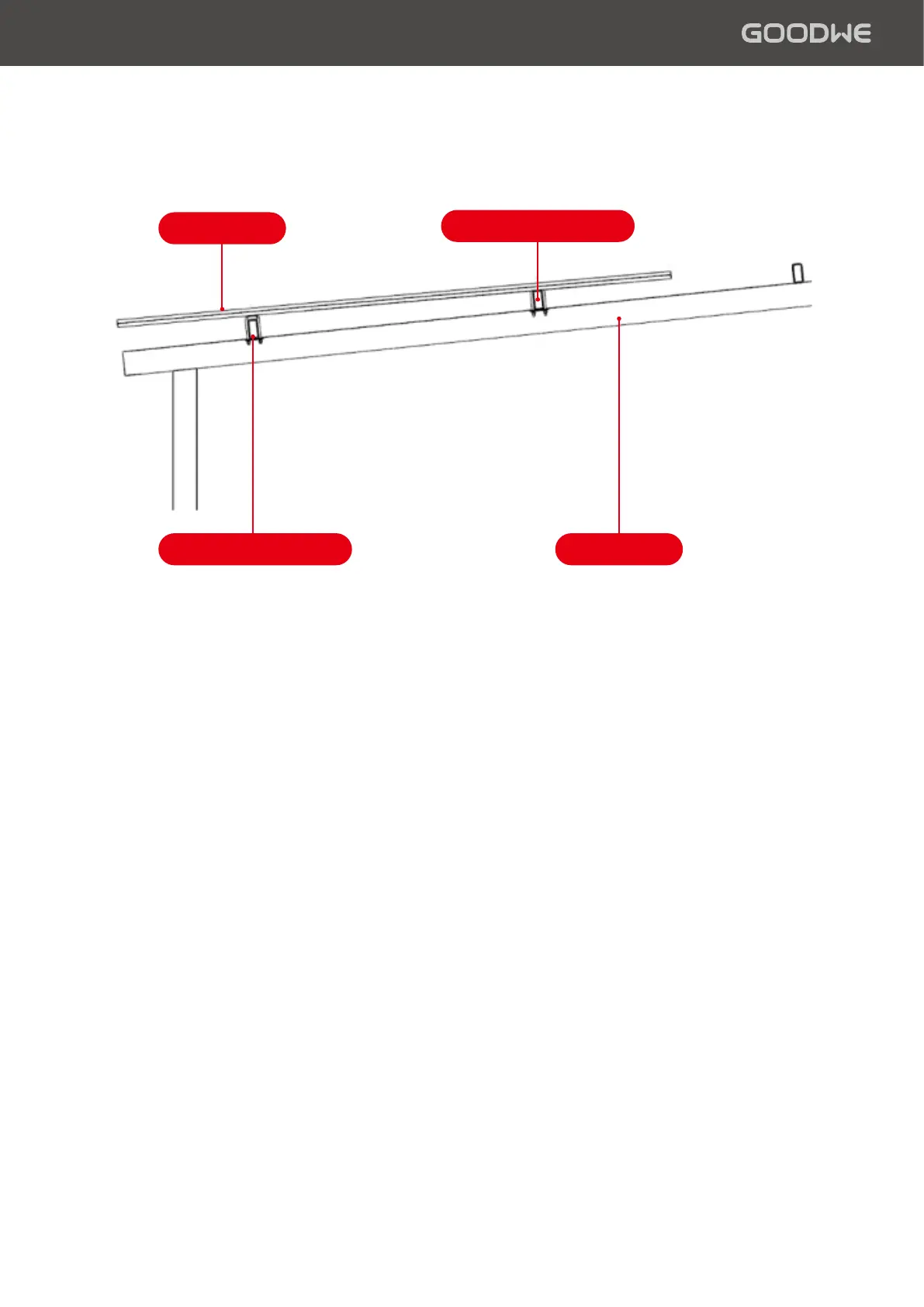

FIGURE 10
Polaris series
Main keel
The second row of purlins
The rst row of purlins
