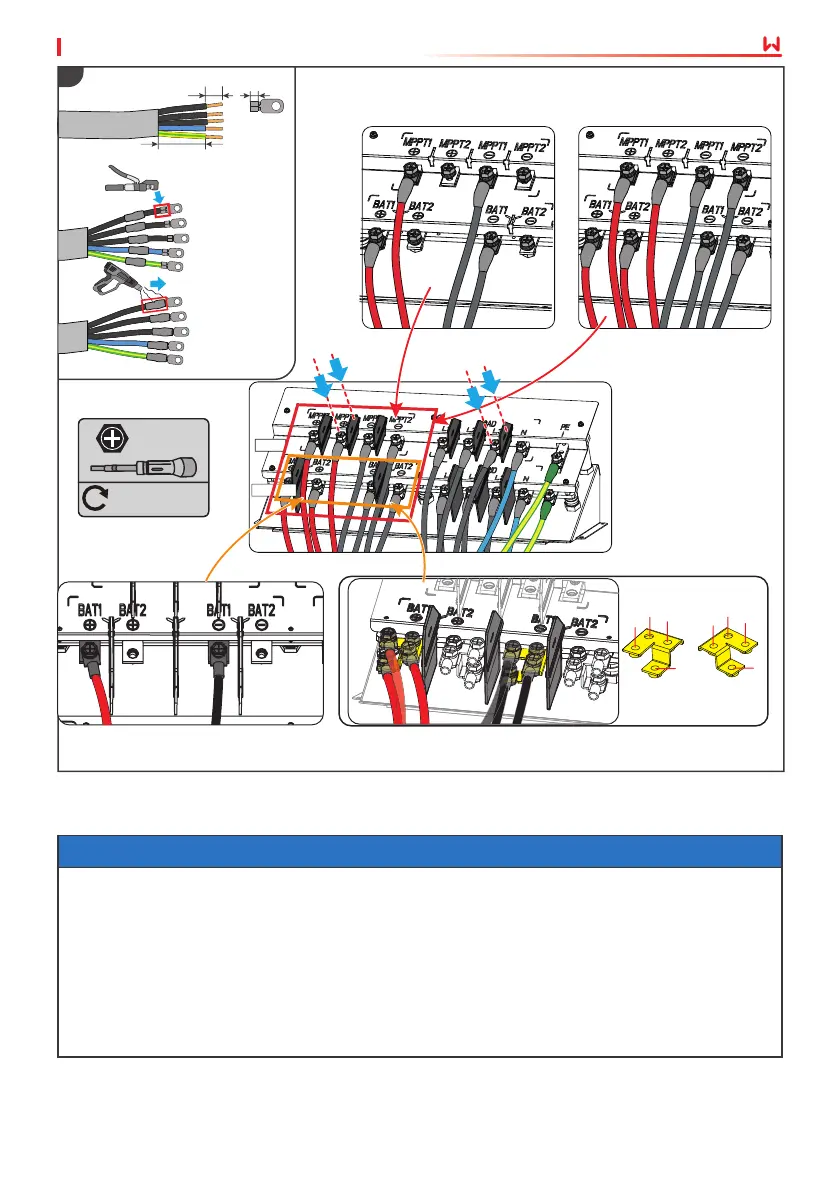

06 Electrical Connection
User Manual V1.2-2024-10-30
120-150mm
L=L1+(1~2)mmL1
2
M8
8-10N·m
BATTERY
MPPT
1
2
2
A
B
B
B
A
B
B
B
BAT1 BAT2
1
50kW Inverter
100kW Inverter
Connect 2 - 3 battery systems per portConnect 1 battery system per port
A: for inverter
B: for battery system
MPPT, LOAD: M8*16;
BATTERY, GRID: M8*20.
NOTICE
• Make sure that the communication device is connected to the right COM port. Route the
communication cable far away from any interference source or power cable to prevent the
signal from being inuenced.
• When connecting the communication cable, please ensure that the shielding layer is
connected to the grounding point.
• If the communication signal is interfered, a magnetic ring can be added on the communi-
cation cable.
• Enable the DRED function or remote shutdown function via SolarGo app after cable
connections.
6�6 Communication
6�6�1 Communication Port Introduction
