05 Installation
17
User Manual V1.2-2025-01-16
642mm
172mm
642mm
172mm
1 2 3
M10 24N·m
M10 24N·m
D: 65mm
D
�

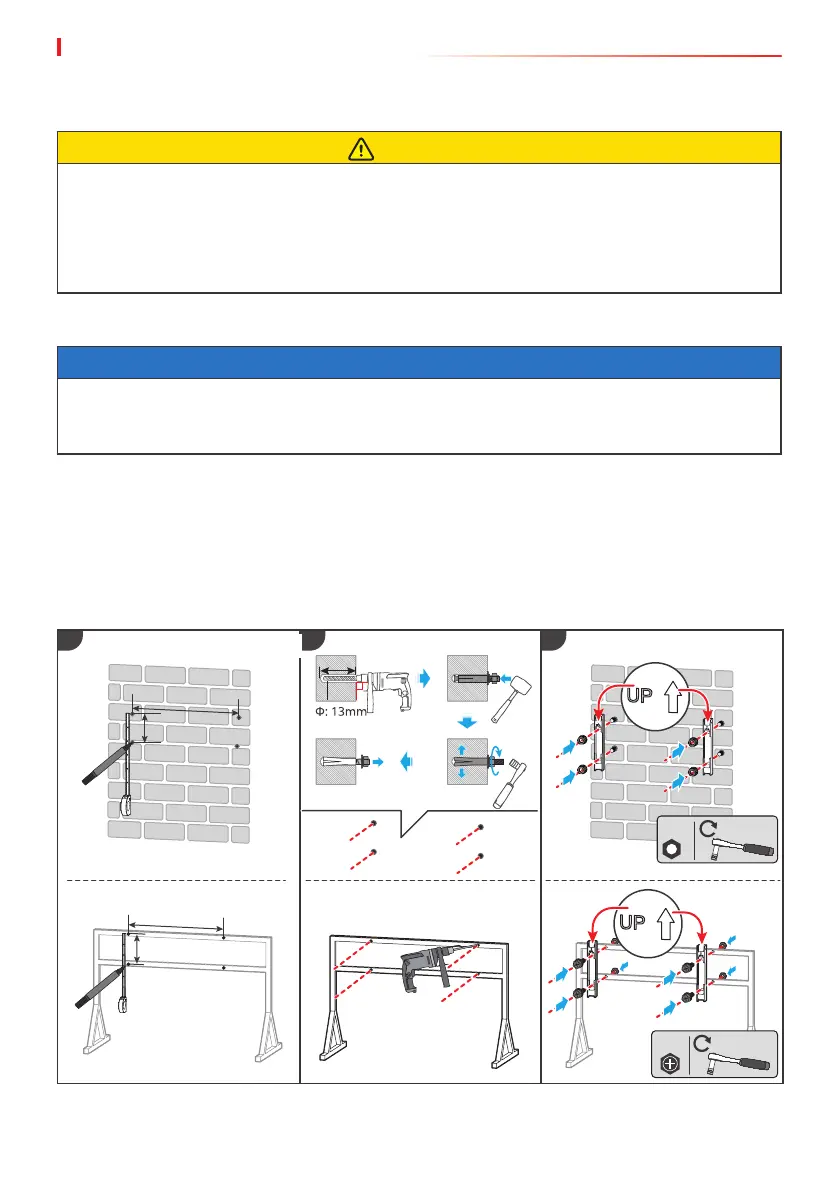

Step 1 Mark positions for drilling holes.
Step 2 Drill holes to a depth of 65mm using the hammer drill. The diameter of the drill bit
should be 13mm.
Step 3 Fix the mounting plate on the wall or the bracket.
Step 4: Grab the handles to lift the inverter, or hoist the inverter, and place it onto the mounting
plate.
Step 5 : Secure the mounting plate and the inverter.
Mounting on the bracket
CAUTION
Move the inverter to the site before installation. Follow the instructions below to avoid
personal injury or equipment damage.
1. Consider the weight of the equipment before moving it. Assign enough personnel to move
the equipment to avoid personal injury.
2. Wear safety gloves to avoid personal injury.
3. Keep balance when moving the equipment.
5.2 Inverter Installation
5.2.2 Installing the Inverter
5.2.1 Moving the Inverter
NOTICE
• Avoid the water pipes and cables buried in the wall when drilling holes.
• Wear goggles and a dust mask to prevent the dust from being inhaled or contacting eyes
when drilling holes.
Mounting on the wall
