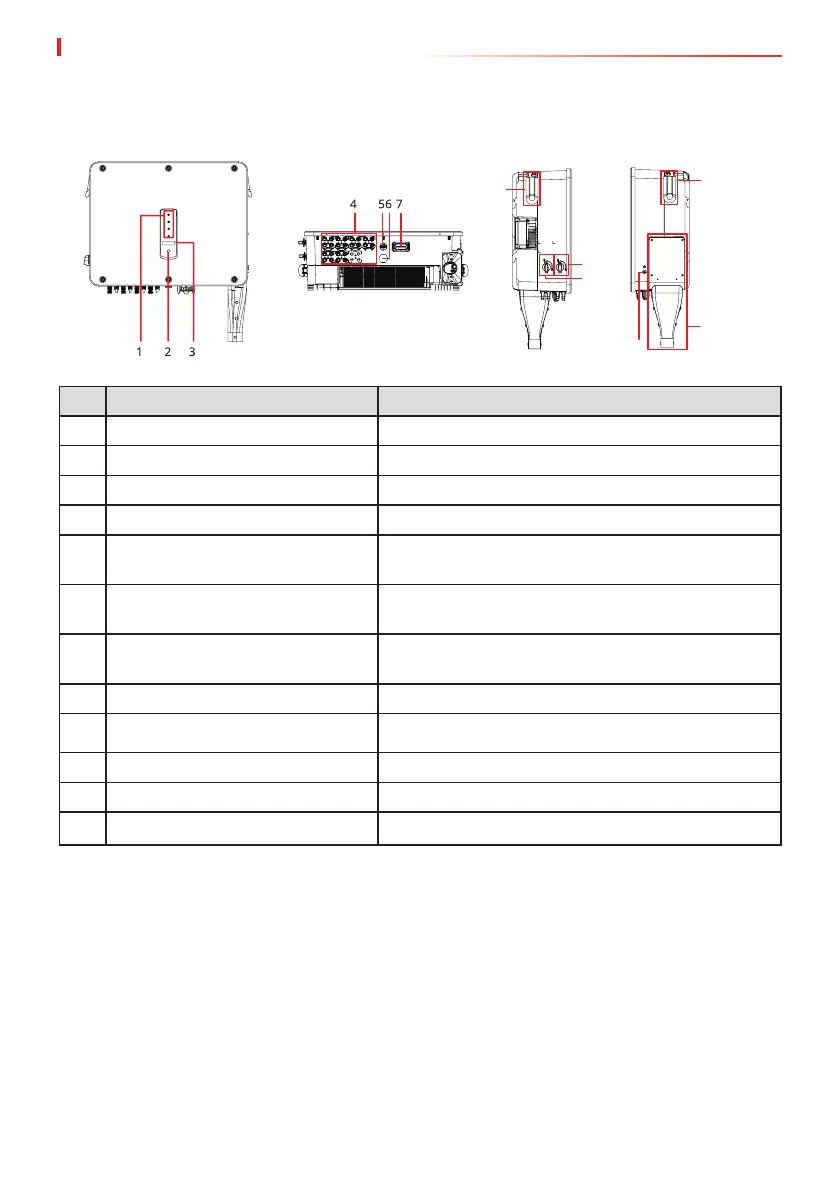

03 Product Introduction
7
User Manual V1.2-2025-01-16
No. Parts Description
1 Indicator Indicates working state of the inverter.
2 Button (optional) To control contents displayed on the screen.
3 LCD (optional) To check the parameters of the inverter.
4 DC Input Port To connect the PV module DC input cables.
5 USB Port
To connect the smart dongle such as WiFi, 4G, and
so on.
6 Ventilation valve
For waterproong, ventilation, and to balance the
internal and external air pressure.
7 Communication Port
To connect the RS485, RCR, Remote Shutdown, etc,
communication signal cable.
8 Handle Used to move the inverter
9 DC Switch 1 To start or stop the DC inputs of MPPT1/2/3/4.
10 DC Switch 2 To start or stop the DC inputs of MPPT5/6.
11 Grounding Port To connect the PE cable.
12 AC output protection combination To protect AC output cable connection unit.
3.4 Appearance
3.4.1 Parts
9
10
8
11
12
8
