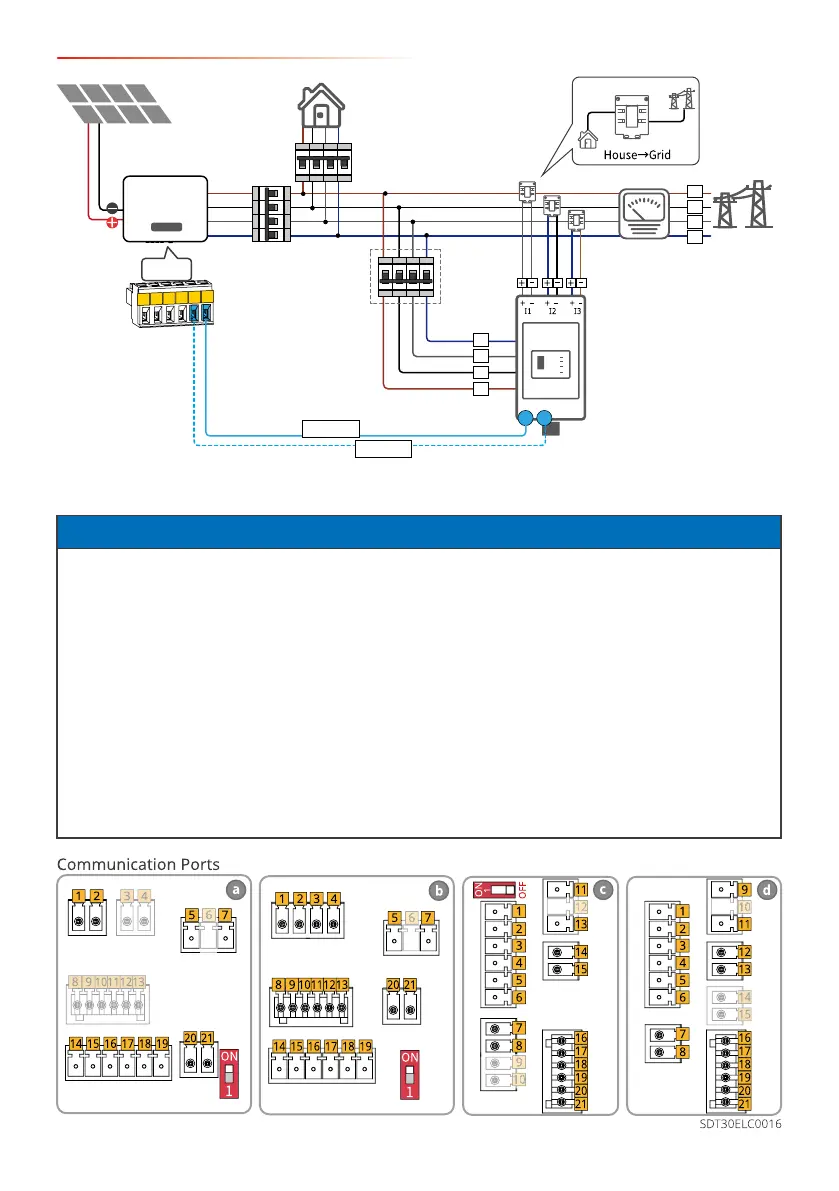

06 Electrical Connection
46
Inverter
Load
Grid
Meter
Smart meter
GM330/GMK330
Circuit
Breaker
Circuit
Breaker
Circuit
Breaker
CT1
CT2
CT3
14
15
16
17
18
19
CT
L1
L2
L3
N
L1
L2
L3
N
BA
COM
RS485_B2
RS485_A2
NOTICE
• When connecting the communication cable, make sure that the wiring
port denition and the equipment are fully matched, and the cable
alignment path should avoid interference sources, power cables, etc., so
as not to aect signal reception.
• When connecting dry contact 1 communication cables, use 3PIN
communication terminals.
• When connecting RS485, meter or DRED communication cables, use
6PIN communication terminals.
• The remote shutdown and DRED/RCR functions are disabled in default.
Enable it via SolarGo App if needed. Detailed steps, refer to SolarGo App
User Manual.
• Get more detailed information about the smart dongle from the ocial
website.
6.5.4 Connecting the Communication Cable
