06 Electrical Connection
43

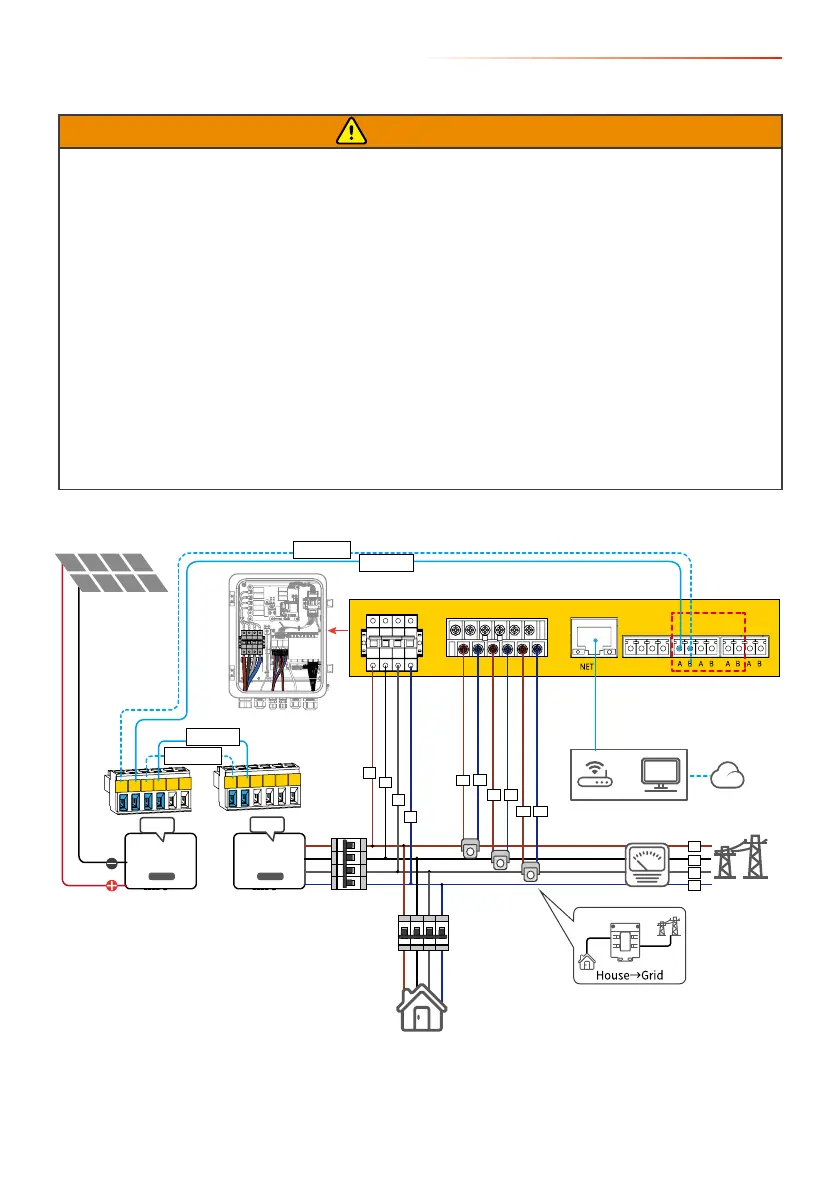

Multi inverters power limitation networking scheme ( SEC1000)
WARNING
1. Connect SEC1000 AC cable to a 3L/N/PE Grid. The voltage of the grid shall
be within allowable voltage sampling scope of SEC1000.
2. The place to snap t the CT shall be near the on-grid point. Make sure
the connecting direction is right. If CT is installed reversely, it is unable to
realize the power limit function.
3. Prepare CT by yourself for external installation when selecting SEC1000.
4. The aperture of the CT should be larger than the outer diameter of the AC
power cable to ensure that the AC power cable can pass through the CT.
5. For specic CT wirings, please refer to the documents provided by the
respective manufacturer, to ensure that the wiring direction is correct and
CT is able to work properly.
6. CT shall be snap tted on Cable L1, L2 and L3. Do not install it on Cable N.
14
15
16
17
18
19
14
15
16
17
18
19
������
COM
COM
L1 L2 L3 N
A+ A- B+ B- C+ C-
L1
L2
L1
L2
A+
A-
B+
B-
C+
C-
L3
N
L3
N
CT
RS485A-1
RS485B-1
RS485B-1
RS485A-1
Inverter
Inverter
Circuit
Breaker
Load
Meter
CT1
CT2
CT3
SEC1000
Router or Com-
puter
Server
Grid
Circuit
Breaker
or
