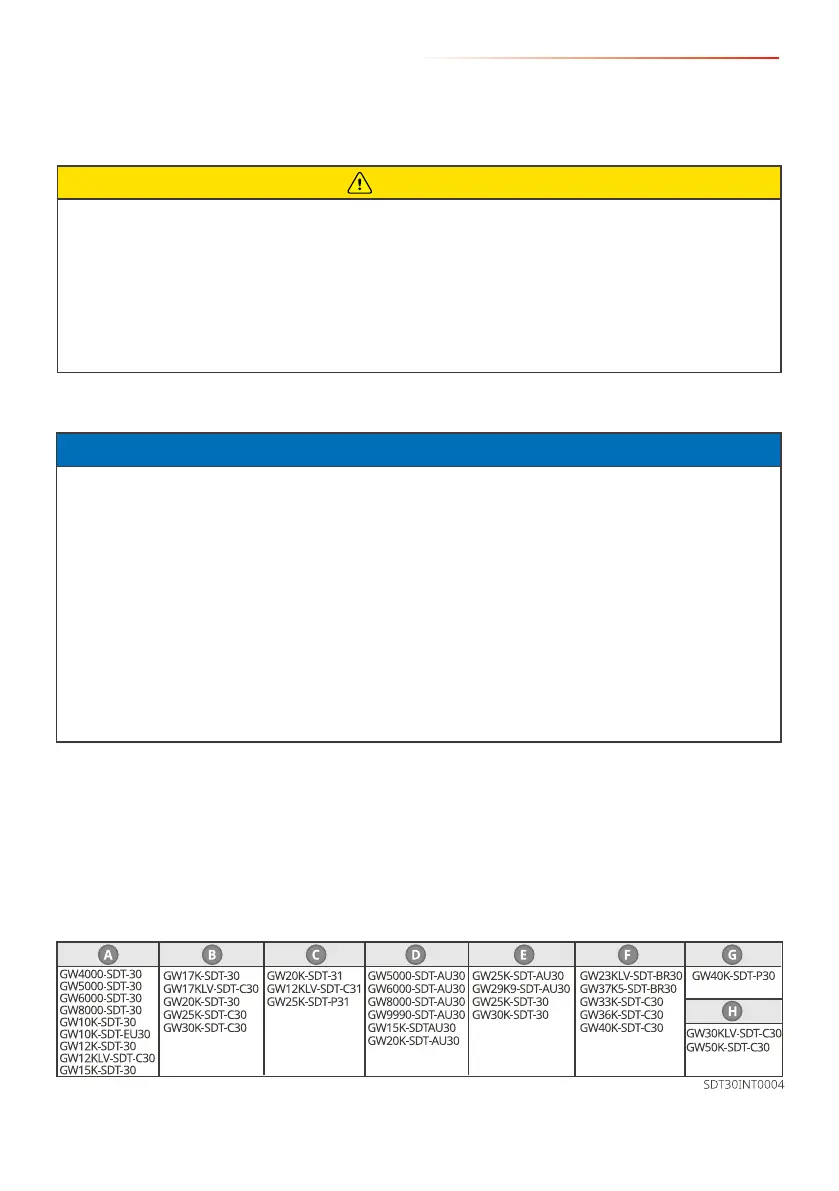

05 Installation
27
CAUTION
Move the inverter to the site before installation. Follow the instructions
below to avoid personal injury or equipment damage:
1. Consider the weight of the equipment before moving it. Assign enough
personnel to move the equipment to avoid personal injury.
2. Wear safety gloves to avoid personal injury.
3. Keep balance to avoid falling down when moving the equipment.
5.2.2 Inverter Installation
NOTICE
• Avoid the water pipes and cables buried in the wall when drilling holes.
• Wear goggles and a dust mask to prevent the dust from being inhaled or
contacting eyes when drilling holes
• The anti-theft lock of appropriate size should be prepared by customers.
Otherwise it is unable to nish the installation if the size is inappropriate.
• The appearance of graphics in this document is only for reference. There
may be dierences in the appearance of dierent models. The actual prod-
uct prevails.
• Step 6 - 7 are only applicable to GW5000-SDT-AU30, GW6000-SDT-AU30,
GW8000-SDT-AU30, GW9990-SDT-AU30 , GW15K-SDTAU30, GW20K-SDT-
AU30, GW25K-SDT-AU30, GW29K9-SDT-AU30, GW25K-SDT-30 and GW30K-
SDT-30.
5�2 Inverter Installation
5�2�1 Moving the Inverter
Step 1 Put the mounting plate on the wall horizontally and mark positions for
drilling holes.
Step 2 : Drill holes with the hammer drill..
Step 3 : Secure the mounting plate using the expansion bolts.
Step 4 Install the inverter on the mounting plate. Tighten the nuts to secure
the mounting plate and the inverter.
Step 5 Install the anti-theft lock.
