06 Electrical Connection
18
User Manual V1.2-2025-04-15
L=L1+2mm
L1
1
2
3
1.2N·m
M4
M4
6.4 Connecting the PT Signal Cable
NOTICE
• The PT ports can be used to connect to two-wire or three-wire PT100/PT1000 temperature
sensors.
• Short circuit B1 port and B2 port when connecting the EzLogger to a two-wire temp. sensor.

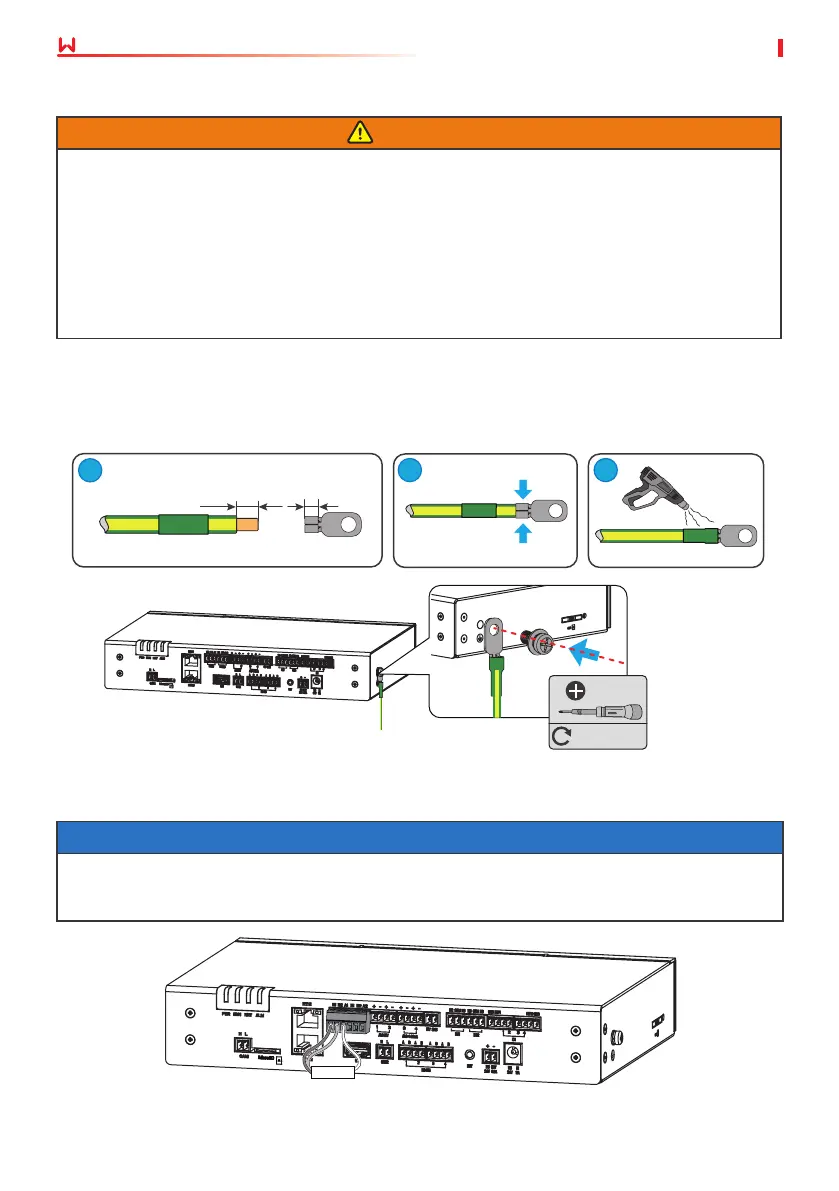

6.3 Connecting the PE Cable
WARNING
• Make sure the equipment is reliably grounded before any operations.
• To improve the corrosion resistance of the terminal, it is recommended to apply silica gel
or paint on the grounding terminal after installing the PE cable.
• The PE cable, grounding OT terminal, and screw should be prepared by the customer.
Recommended specications:
• PE cable: outdoor copper cable with conductor cross-sectional area of 2.5-4mm
2
(14AWG-
12AWG).
• OT terminal: M4
• Screw: M4
Step 1 Strip the cable to an appropriate length for insulation.
Step 2 Crimp the cable to the grounding OT terminal.
Step 3 Wrap the crimping area with insulation tube.
Step 4 Secure the PE cable to the grounding point of the EzLogger with the M4 screw.
