03 Product Introduction
7
User Manual V1.2-2025-04-15

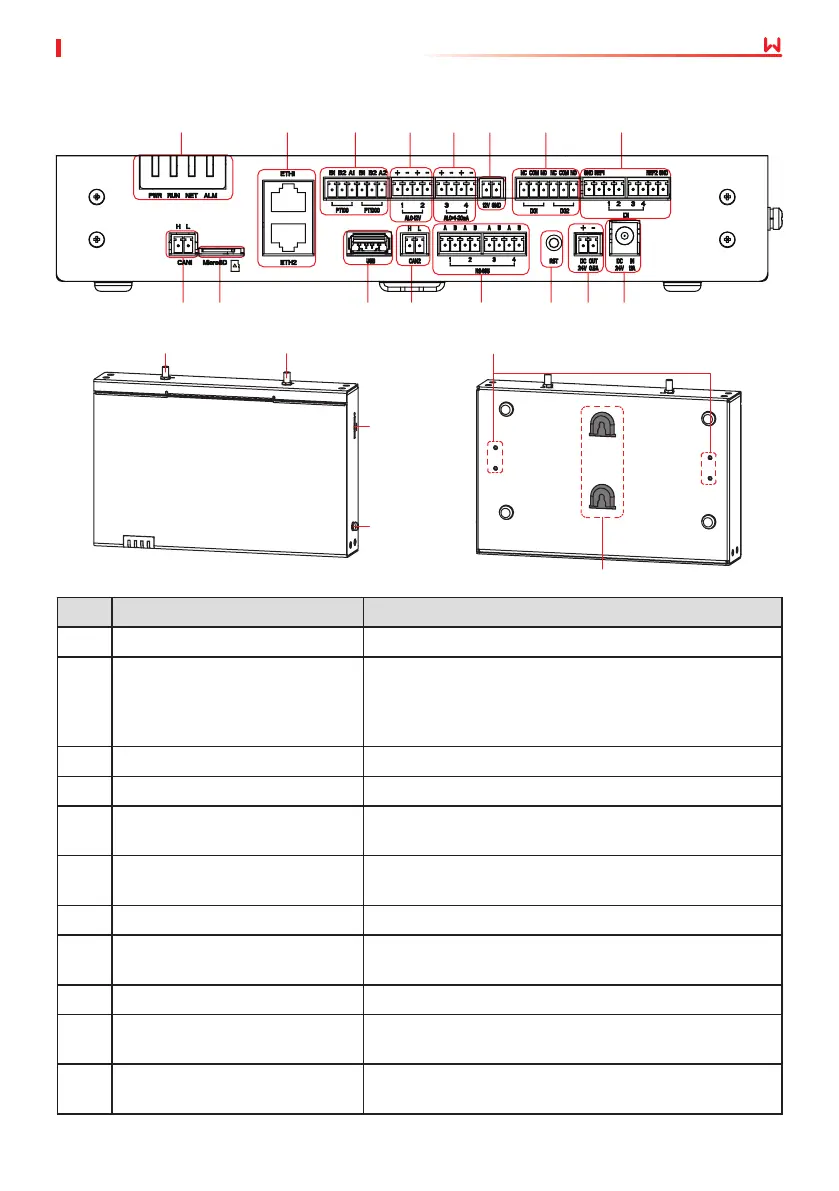

3.3 Appearance
No. Parts Description
1 LED indicator Indicates the equipment’s working status.
2 Ethernet ports (ETH1/2)
Communication ports for the Ethernet cable.
• ETH1: for network communication.
• ETH2: for network communication and embedded
web connection.
3 PT ports (PT100 PT1000) Ports for connecting the temperature sensor.
4 AI ports (AI_0-12V) Communication ports for 0-12V AI signal input cable.
5 AI ports (AI_0/4-20mA)
Communication ports for 0-20mA or 4-20mA AI signal
input cable.
6
12V output power port (12V
GND)
Supports 12V DC power input.
7 DO ports (DO1/2) Communication ports for DO signal cable.
8 DI ports (DI)
Communication ports for DI signal cable. Supports
dry contact or wet contact signal.
9 CAN ports (CAN 1/2) Reserved ports for CAN communication.
10 MicroSD card slot (MicroSD)
Supports installing a MicroSD card to storage run-
ning, operation, and maintenance logs.
11 USB port (USB)
Connects to a USB ash drive, which can be used to
update rmware version.
16
17
18
19
20
21
12 13 14 1510 119
1 2
3
4
5 6
7
8
9
