8 Highlander Wash
User Manual
Color wheels
See Figure 2. The Highlander Wash features two separate color wheels with dichroic
color filters:
● Color wheel 1 offers seven saturated colors plus open.
● Color wheel 2 offers four pastel colors, half minus green and two color correction
filters plus open.
The color wheel control options let you:
● Select full colors or the open position,
● Scroll the color wheels for split color effects, or
● Rotate the color wheels continuously with variable direction and speed.
Color wheel 1
Color wheel 2
Effect shortcuts
By default, the color wheels take the shortest, fastest route from one slot to the next,
even if this means that they may pass through the open position. To avoid the wheels
passing through the open position when they change from one slot to the next you can
set Effect shortcuts to OFF on the Special/Control DMX channel or in the control panel.
Framing
The four-blade framing module offers individual control of each blade, and the entire
module can be indexed continuously from -45° to +45°. Blades can be continuously
angled by +/- 30° and inserted by up to 100%, giving flexibility in choice of frame shape
and size right down to dead blackout.
Two framing control modes are available:
● Position/Indexing (PI) mode lets you insert each blade into the beam from 0% to 100%
on one channel and tilt each blade from -30° to + 30° on the next channel. Inserting

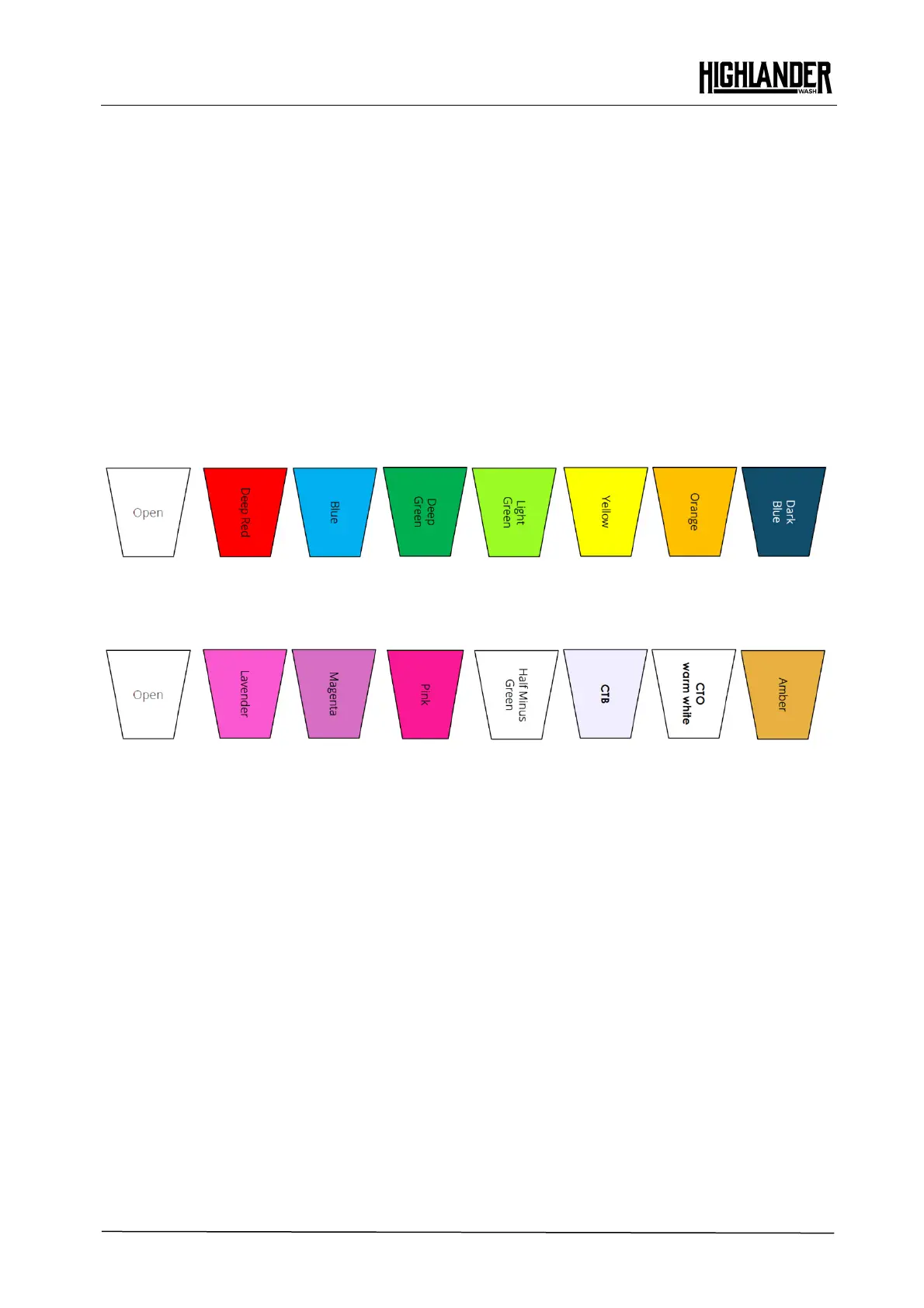

Figure 2. Color wheels
