www.glp.de Installation
18 Fusion XPAR 12Z User Manual Rev. A
Free standing as uplighter
The XPAR 12Z fixture can be placed on its back for use as an uplighter. Two fixed feet and
one adjustable foot allow you to set the vertical angle of the fixture. The mounting bracket
may be removed if required for cleaner appearance by removing the handwheel bolts on
either side.

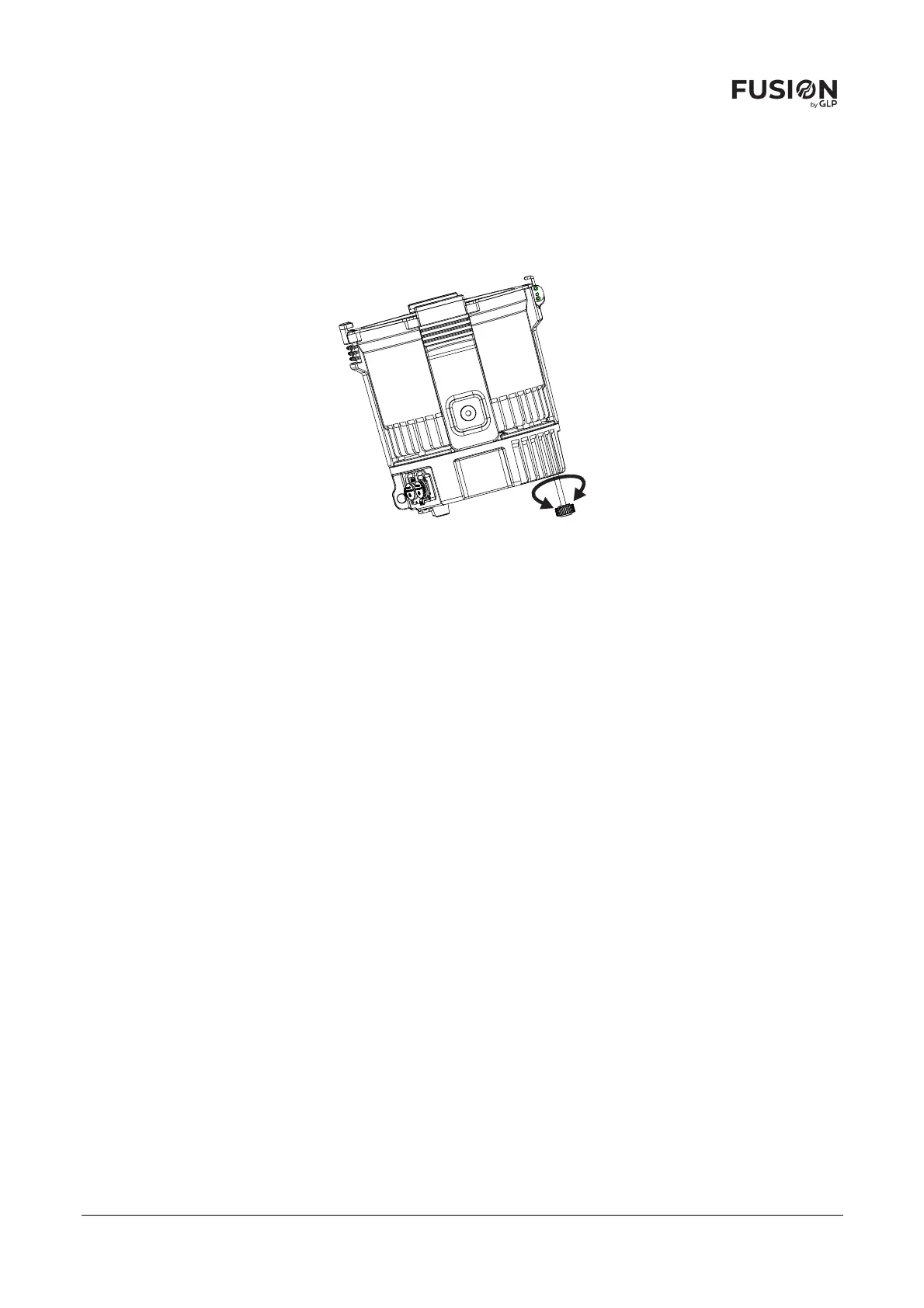

Figure 6. Free standing as uplighter
1. Unscrew the handwheel bolts either side of the mounting bracket and remove the
mounting bracket (if required).
2. Stand the fixture on its back as shown in Figure 6 and adjust the angle by screwing the
adjustable foot
in or out.
3. Ensure the fixture is located in a position where it will not form a trip hazard or cause
injury if it falls over. If in doubt secure the fixture with a safety cable to an adjacent fixed
point.
